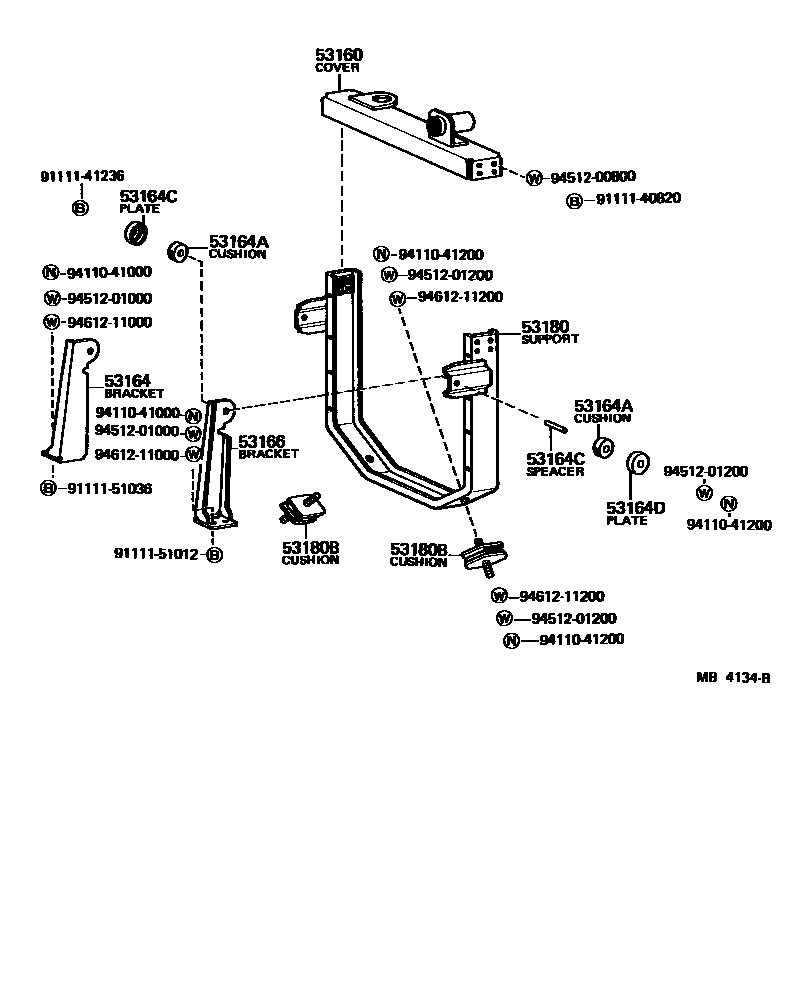

RADIATOR SUPPORT & WIND GUIDE

53160COVER ASSY, RADIATOR

main16502-96521iDB10#196903-197703

main16504-96518iFB100196903-197105

53164BRACKET, RADIATOR SUPPORT SIDE

main16541-96519iFB100196903-197105

main16541-96521iDB10#196903-197703

53164ACUSHION, RADIATOR SUPPORT

main90540-19035iDB10#,FB100196903-197703

53164CSPACER, RADIATOR SUPPORT BRACKET

main90560-13182iDB10#,FB100196903-197703

53164DPLATE, RADIATOR SUPPORT BRACKET, NO.1

main16556-76010iDB10#,FB100196903-197703

53166BRACKET, RADIATOR SIDE SUPPORT, LH

main16542-96519iFB100196903-197105

main16542-96521iDB10#196903-197703

53180SUPPORT ASSY, RADIATOR

main16501-96521iDB10#196903-197703

main16501-96522iFB100196903-197105

53180BCUSHION(FOR RADIATOR SUPPORT)

main16551-96518iDB10#,FB100196903-197703

sub16551-96519

sub94115-41200

9111140820

main91111-40820

9111141236

main91111-41236

9111151012

main91111-51012

9111151036

main91111-51036

9411041000

main94110-41000

9411041200

main94110-41200

9451200800

main94512-00800

9451201000

main94512-01000

9451201200

main94512-01200

9461211000

main94612-11000

9461211200

main94612-11200

19 parts on this diagram · 1 diagram in section
