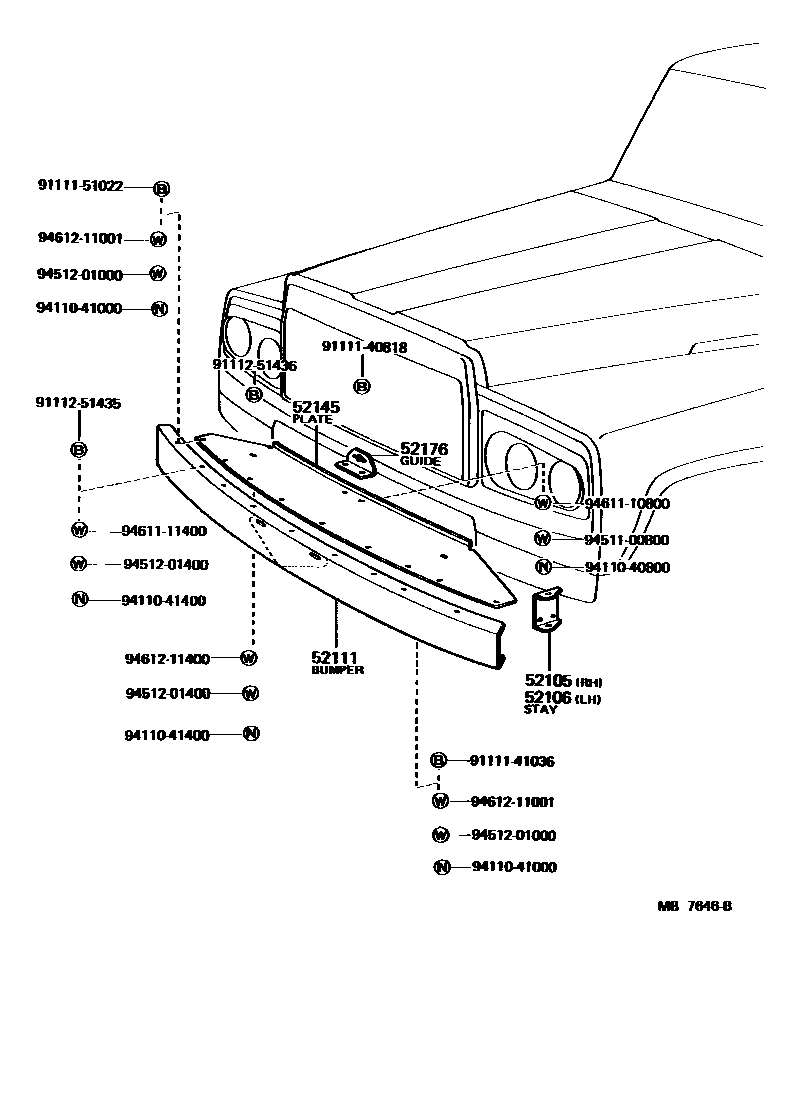

FRONT BUMPER & BUMPER STAY

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52141-55020iDA11#,FA100,11#,FC100196903-200112

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52142-55010iDA11#,FA100,11#,FC100196903-200112

52111BUMPER ASSY, FRONT

main52111-55040iDA11#,FA100,11#,FC100196903-197702

sub52111-55041

main52111-55041iDA11#,FA100,115197702-200112

sub52111-55900

52145PLATE, BUMPER SUB

main52145-55060iDA11#,FA100,11#,FC100196903-197702

52176GUIDE, STARTING HANDLE

main51489-55020iDA11#,FA100,11#,FC100196903-197702

main51489-56010iDB10#196903-197703

9111140818

main91111-40818

9111141036

main91111-41036

9111151022

main91111-51022

9111251435

main91112-51435

9111251436

main91112-51436

9411040800

main94110-40800

9411041000

main94110-41000

9411041400

main94110-41400

9451100800

main94511-00800

9451201000

main94512-01000

9451201400

main94512-01400

9461110800

main94611-10800

9461111400

main94611-11400

9461211001

main94612-11001

9461211400

main94612-11400

20 parts on this diagram · 1 diagram in section
