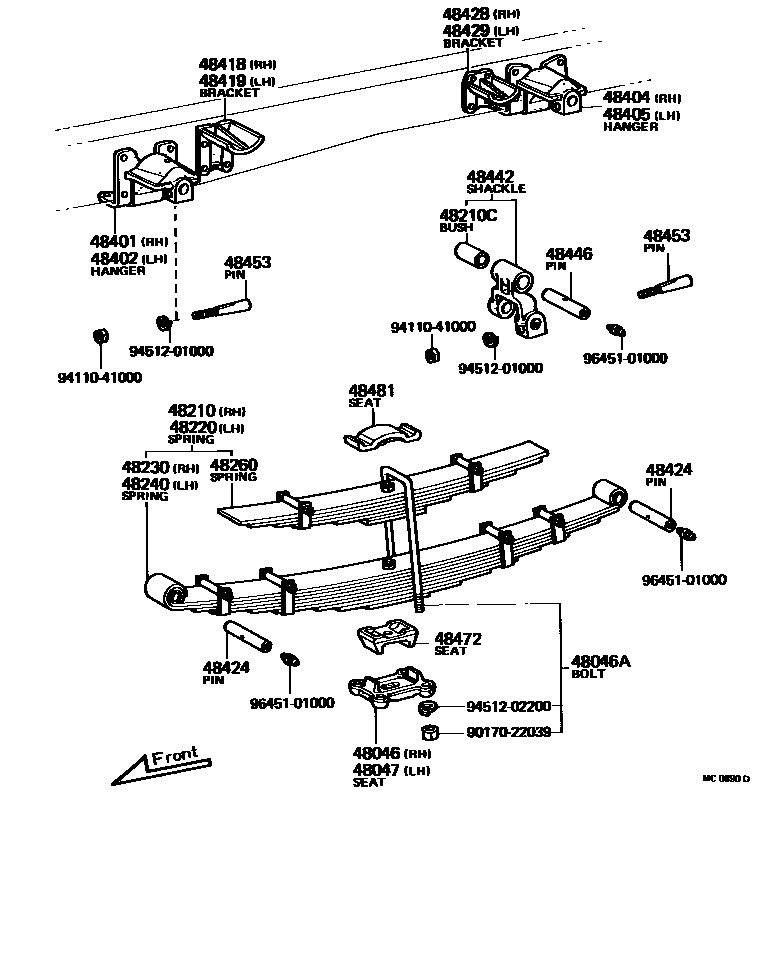

REAR SPRING & SHOCK ABSORBER
48046SEAT SUB-ASSY, SPRING U BOLT, RH
48046ABOLT, U(FOR REAR SPRING)
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48210SPRING ASSY, REAR RH
48210CBUSH(FOR REAR SPRING LEAF)
ID=32,OD=38,L=78
ID=32,OD=38.3,L=78
48240SPRING ASSY, REAR MAIN, LH
sub48230-55131
sub48230-55141
sub48230-55090
sub48230-55091
sub48230-55110
48260SPRING ASSY, REAR HELPER
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48404BRACKET SUB-ASSY, REAR SPRING, REAR RH
48405BRACKET SUB-ASSY, REAR SPRING, REAR LH
48418BRACKET, HELPER SPRING, FRONT RH
48419BRACKET, HELPER SPRING, FRONT LH
48424PIN, SPRING BRACKET, NO.2
FR
FR
RR,LH
RR,RH
RR,RH
RR,LH
48428BRACKET, HELPER SPRING, REAR RH
48429BRACKET, HELPER SPRING, REAR LH
48442SHACKLE, SPRING, NO.2
48446PIN, REAR SPRING SHACKLE
48453PIN, REAR SPRING PIN LOCK
48472SEAT, REAR SPRING, LOWER
48481SEAT, REAR SPRING, UPPER
9017022039
main90170-22039
9411041000
main94110-41000
9451201000
main94512-01000
9451202200
main94512-02200
9645101000
main96451-01000
28 parts on this diagram · 11 diagrams in section
