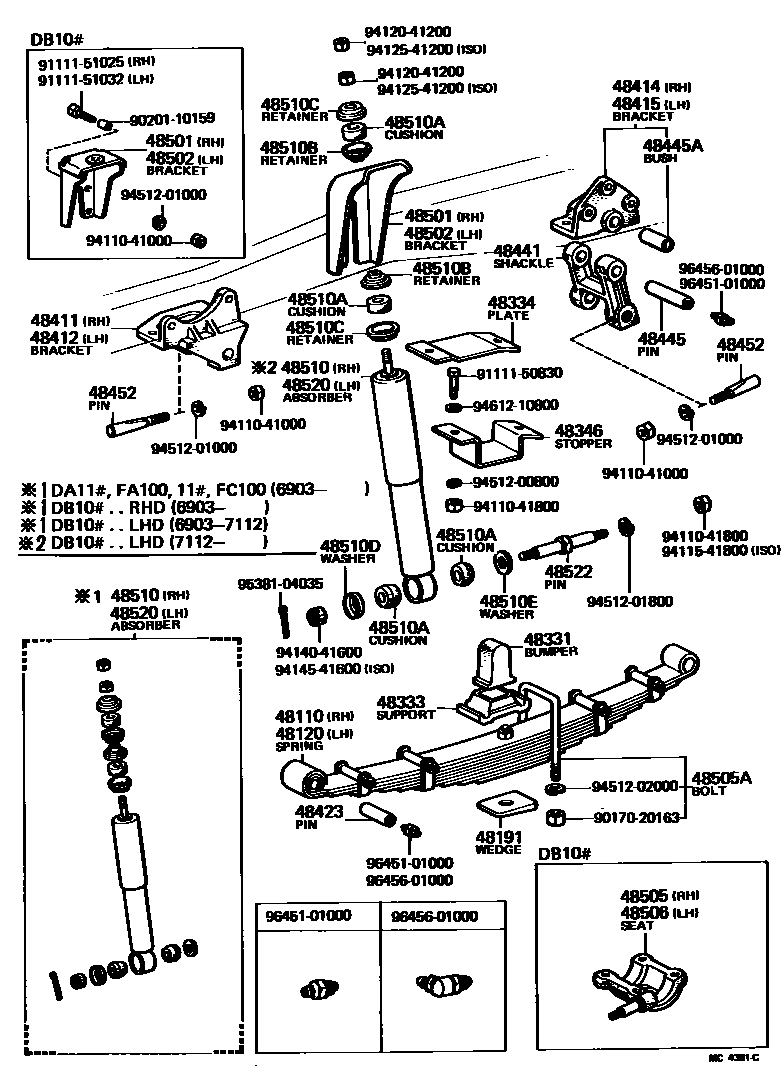

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

48110SPRING ASSY, FRONT, RH

main48110-55090iFA100,110..DMP196903-197510

main48110-55100iFA100,11#,FC100..BTR196903-197704

main48110-55101iFA100,115..BTR197704-198207

main48110-55110iDA110..DMP196903-197510

main48110-55140iFA100..DMP197510-197704

main48110-55141iDA11#..BTR197704-198509

main48110-55142iDA11#..BTR198509-200112

main48110-55150iDA110..DMP197510-197704

main48110-55151iDA110..DMP197704-198509

main48110-55152iDA110..DMP198509-200112

main48110-56060iDB10#196903-197703

48120SPRING ASSY, FRONT, LH

main48110-55101iFA100,115..BTR197704-198207

main48110-55140iFA100..DMP197510-197704

main48110-55141iFA100..DMP197704-198509

main48110-55142iDA11#..BTR198509-200112

main48110-55150iDA110..DMP197510-197704

main48110-55151iDA110..DMP197704-198509

main48110-55152iDA110..DMP198509-200112

main48120-55080iFA100,110..DMP196903-197510

sub48110-55090

main48120-55090iFA100,11#,FC100..BTR196903-197704

sub48110-55100

main48120-55100iDA110..DMP196903-197510

sub48110-55110

main48120-56060iDB10#196903-197703

sub48110-56060

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-55030iDA11#,FA100,11#,FC100196903-198509

main48191-55031iDA11#198509-200112

48331BUMPER, FRONT SPRING, NO.1

main48331-55010iFB100196903-197105

main48331-55040iDA11#,DB10#,FA100,11#,FC100196903-200112

48333SUPPORT, BUMPER, FRONT

main48333-55030iDA11#,DB10#,FA100,11#,FC100196903-200112

main48333-56020iFB100196903-197105

48334PLATE, BUMPER, FRONT

main48334-56010iDB10#196903-197703

48346STOPPER, BUMPER, FRONT

main48346-55010iDA11#,FA100,115197704-200112

48411BRACKET, FRONT SPRING(FOR FRONT RH)

main48411-55021iDA11#,FA100,11#,FC100196903-197003

main48411-55022iDA11#,FA100,11#,FC100197003-198509

main48411-55023iDA11#198509-200112

main48411-56020iDB10#196903-197703

48412BRACKET, FRONT SPRING(FOR FRONT LH)

main48412-55011iDA11#,FA100,11#,FC100196903-197003

main48412-55012iDA11#,FA100,11#,FC100197003-198509

main48412-55013iDA11#198509-200112

main48412-56020iDB10#196903-197703

48414BRACKET, FRONT SPRING(FOR REAR RH)

main48403-55010iDA11#,DB10#,FA100,11#,FC100196903-200112

48415BRACKET, FRONT SPRING(FOR REAR LH)

main48403-55010iDA11#,DB10#,FA100,11#,FC100196903-200112

48423PIN, FRONT SPRING BRACKET

main48423-55020iDB10#196903-197703

main48423-55021iDA11#,FA100,11#,FC100196903-200112

48441SHACKLE, SPRING, NO.1

main48441-55012iDA11#,FA100,11#,FC100196903-200112

main48441-56020iDB105197404-197703

48445PIN, FRONT SPRING SHACKLE

main48445-55031iDA11#,DB10#,FA100,11#,FC100196903-200112

48445ABIMETAL FORMED BUSH(FOR FRONT SPRING SHACKLE PIN)

main90999-73015iDA11#,DB10#,FA100,11#,FC100196903-200112

48452PIN, FRONT SPRING PIN LOCK

main48452-55010iDA11#,DB10#,FA100,11#,FC100196903-200112

48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH

main48501-55030iDA11#,FA100,11#,FC100196903-197003

main48501-55031iDA11#,FA100,11#,FC100197003-200112

main48501-96519iDB10#..RHD196903-197703

main48512-57012iFB100196903-197105

main48512-96521iDB10#..LHD196903-197703

48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH

main48501-55030iDA11#,FA100,11#,FC100196903-197003

main48501-55031iDA11#,FA100,11#,FC100197003-200112

main48501-96519iDB10#..RHD196903-197703

main48512-96521iDB10#..LHD196903-197703

main48513-57011iFB100196903-197105

48505SEAT, FRONT SPRING, RH

main48044-96518iDB10#..RHD196903-197703

main48044-96519iDB10#..LHD196903-197703

main48471-57010iFB100196903-197105

48505ABOLT, U(FOR FRONT SPRING)

main48031-96518iDB10#196903-197703

main90117-14106iFB100196903-197105

main90118-20029iDA11#,FA100,11#,FC100196903-198207

sub90117-20076

sub90170-20163

sub94512-02000

main90118-20043iFB100196903-197105

sub90117-20119

sub90170-20163

sub94512-02000

main90118-20143iFA100..DMP197510-200112

sub90117-20001

sub90170-20163

sub94512-02000

main90118-20144iDA115..ARL197510-200112

sub90117-20002

sub90170-20163

sub94512-02000

48506SEAT, FRONT SPRING, LH

main48045-96518iDB10#..RHD196903-197703

main48045-96519iDB10#..LHD196903-197703

main48472-57010iFB100196903-197105

48510ABSORBER ASSY, SHOCK, FRONT RH

main04488-55020iDA110,FA100,110..DMP196903-196908

sub48511-59015

main48500-57020iFB100196903-197105

main48511-59015iDB10#..RHD196908-199703

sub48511-59016

main48511-59016iDA11#199703-200112

main48511-96519iDB10#..LHD197112-197703

48510ACUSHION, FRONT SHOCK ABSORBER

main48683-96518iDB10#..LHD197112-197703

UPR

main90385-22026iDB10#..RHD;DA11#,FA100,11#196903-200112

LWR

main90385-26042iDB10#..LHD197112-197703

LWR

main90948-01004iDB10#..RHD;DA11#,FA100,11#196903-200112

UPR

main90948-01005iFB100196903-197105

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main48681-96518iDB10#..LHD197112-197703

main90948-02008iDB10#..RHD;DA11#,FA100,11#196903-200112

main90948-02011iFB100196903-197105

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main48682-96518iDB10#..LHD197111-197703

main90948-02009iDA11#,DB10#,FA100,11#,FC100196903-200112

main90948-02012iFB100196903-197105

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-02011iFB100196903-197105

main90948-03005iDA11#,DB10#,FA100,11#,FC100196903-200112

main90948-03009iDB10#..LHD197112-197703

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-02012iFB100196903-197105

main90948-03006iDB10#..RHD;DA11#,FA100,11#196903-200112

main90948-03008iDB10#..LHD197112-197703

48520ABSORBER ASSY, SHOCK, FRONT LH

main04488-55020iDA110,FA100,110..DMP196903-196908

sub48511-59015

main48500-57020iFB100196903-197105

main48511-59015iDB10#..RHD196903-199703

sub48511-59016

main48511-59016iDA11#199703-200112

main48511-96519iDB10#..LHD197112-197703

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-55020iDA11#,FA100,11#,FC100196903-200112

9017020163

main90170-20163

9020110159

main90201-10159

9111150830

main91111-50830

9111151025

main91111-51025

9111151032

main91111-51032

9411041000

main94110-41000

9411041800

main94110-41800

9411541800

main94115-41800

9412041200

main94120-41200

9412541200

main94125-41200

9414041600

main94140-41600

9414541600

main94145-41600

9451200800

main94512-00800

9451201000

main94512-01000

9451201800

main94512-01800

9451202000

main94512-02000

9461210800

main94612-10800

9538104035

main95381-04035

9645101000

main96451-01000

9645601000

main96456-01000

49 parts on this diagram · 6 diagrams in section
