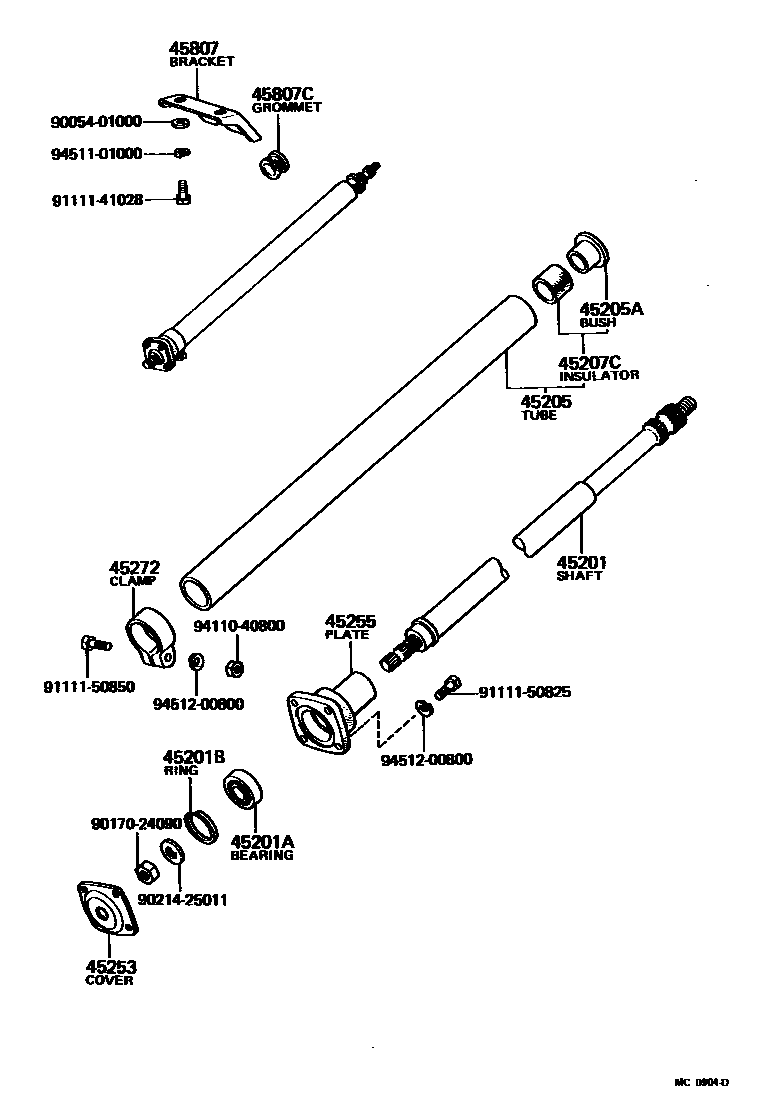

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-55040iDA11#,FA100,11#,FC100196903-197309

main45201-55041iDA11#,FA100,11#,FC100197309-197403

main45201-55042iDA11#,FA100,115197404-198002

main45201-55043iDA11#,FA100,115198002-198303

sub45201-55044

main45201-55044iDA11#198303-200112

main45201-56041iDB10#196903-197403

main45201-56050iFB100196903-197003

main45201-56051iFB100197003-197105

main45201-96521iDB105197404-197703

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iDA11#,DB105,FA100,115197404-200112

UPR

main90363-25039iDA11#,FA100,11#,FC100196903-200112

LWR

sub90363-25022

main97123-06207iDB105197404-197703

LWR

main97143-06207iDB10#196903-197403

sub97123-06207

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iDA11#,DB105,FA100,115197404-200112

T=1.20,MAIN SHAFT,LWR

main90520-17269iDA11#,DB105,FA100,115197404-200112

T=1.20,MAIN SHAFT,UPR

main90520-33054iDB10#196903-197703

T=2.05,LWR

main90520-33055iDB10#196903-197703

T=2.25,LWR

main90521-57075iDA11#,FA100,11#,FC100196903-200112

T=1.55-1.65,LWR

main90521-57076iDA11#,FA100,11#,FC100196903-200112

T=1.7,LWR

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-55040iDA11#,FA100,11#,FC100196903-197403

main45205-55070iDA11#,FA100,115198002-200112

main45205-55080iDA11#,FA100,115..GEN198002-200112

W/EXHAUST BRAKE

main45205-56040iFB100196903-197003

main45205-56041iFB100197003-197105

main45205-96520iDB10#196903-197403

main45251-55041iDA11#,FA100,115197404-198002

main45251-96522iDB105197404-197703

45205ABUSH(FOR STEERING COLUMN TUBE)

main90386-18026iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

45207CINSULATOR, HORN CONTACT BRUSH RING

main45206-35010iDA11#,DB10#,FA100,11#,FB100,FC100196903-197403

45253COVER, STEERING COLUMN HOLE

main45292-55010iDB10#196903-197703

main45292-55020iDA11#,FA100,11#,FC100196903-200112

45255PLATE, STEERING COLUMN HOLE COVER

main45291-55010iDB10#196903-197703

main45291-55020iDA11#,FA100,11#,FC100196903-200112

45272CLAMP, STEERING COLUMN, LOWER

main45272-55010iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main55601-96519iDB105197404-197703

UPR

main55603-95210iDA11#,FA100,115..RHD196903-198002

main55603-95210iDA11#..LHD198511-200112

W/POWER STEERING

main55603-95213iDA11#,FA100,115..LHD197404-198002

main55603-95214iDA11#,FA100,115..RHD198002-200112

main55603-95215iDA11#,FA100,115..LHD198002-200112

main55603-96519iDB10#196903-197403

main55662-96519iDB105197404-197703

LWR

45807CGROMMET(FOR STEERING COLUMN CLAMP)

main90480-45003iDA11#,DB10#,FA100,11#,FC100196903-200112

9005401000

main90054-01000

9017024090

main90170-24090

9021425011

main90214-25011

9111141028

main91111-41028

9111150825

main91111-50825

9111150850

main91111-50850

9411040800

main94110-40800

9451101000

main94511-01000

9451200800

main94512-00800

20 parts on this diagram · 9 diagrams in section
