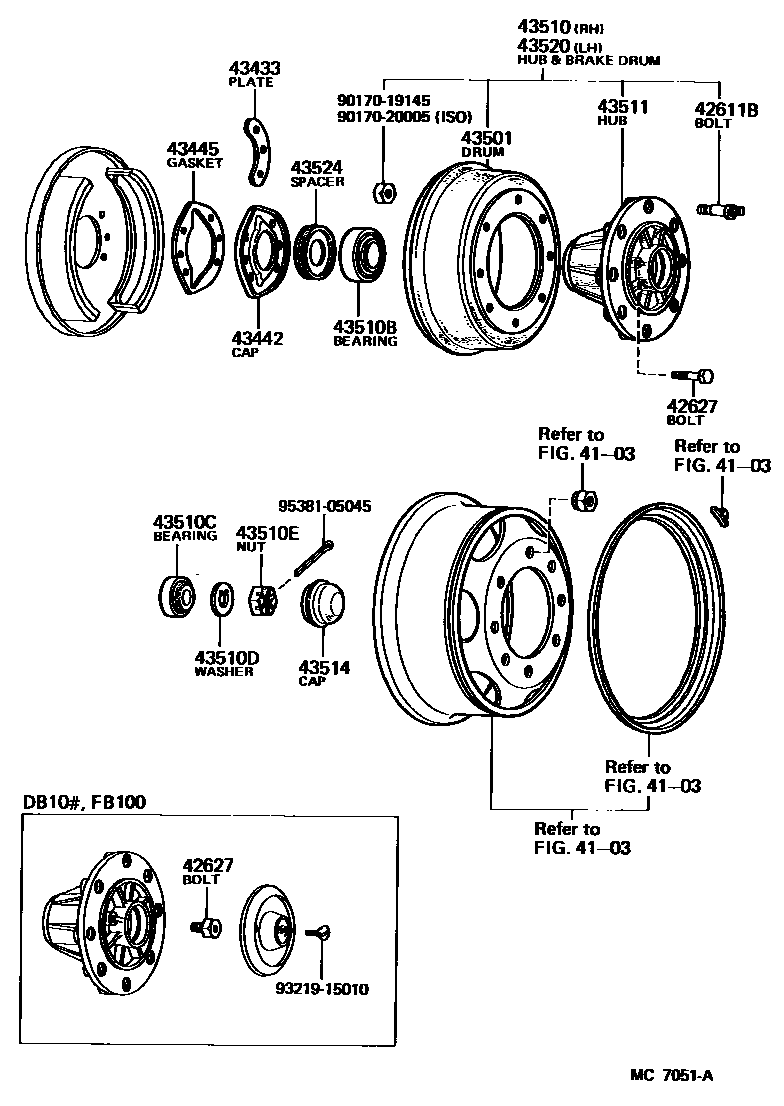

FRONT AXLE HUB

0001 1 0002 1

4103

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02007×8iDA11#,DB10#,FA100,11#,FB100196903-197003

RH

main90942-02008×8iDA11#,DB10#,FA100,11#,FB100196903-197003

LH

main90942-02015×5iFC100196903-197403

RH

main90942-02016×5iFC100196903-197403

LH

main90942-02028×8iDA11#,DB10#,FA100,11#,FB100197003-200112

RH

main90942-02029×8iDA11#,DB10#,FA100,11#,FB100197003-200112

LH

42627BOLT, FRONT WHEEL CAP SET

main42627-55020×4iFC100196903-196908

main42627-56011×4iDB10#,FB100196903-197704

main90109-11037×4iFC100196908-197403

ISO

main91211-51032×4iDA11#,FA100,11#196903-197403

sub91212-51032

43433PLATE, KNUCKLE GREASE RETAINER

main43433-55010×4iDA11#,FA100,115197704-197806

43442CAP, KNUCKLE GREASE RETAINER, INNER

main43442-55020×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

main43442-55040×2iDA11#,DB10#,FA100,11#,FB100197003-197704

main43442-55041×2iDA11#,FA100,115197704-197806

43445GASKET, KNUCKLE GREASE RETAINER CAP

main43445-55010×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

T=1.0

main43445-55030×2iDA11#,DB10#,FA100,11#,FB100197003-197704

T=0.5

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-55020×2iDA11#,DB10#,FA100,11#,FB100196903-197003

main43512-55022×2iDA11#,DB10#,FA100,11#,FB100197003-200112

main43512-55050×2iFC100196903-197403

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-55040iFC100196903-197003

main43510-55901iDA11#,DB10#,FA100,11#,FB100196903-197003

main43510-55904iDA11#,DB105,FA100,115197404-200112

main43510-59015iFC100197003-197201

main43510-59016iFC100197201-197403

ISO

main43510-59025iDA11#,DB10#,FA100,11#,FB100197003-197201

main43510-59026iDA11#,DB10#,FA100,11#197201-197403

ISO

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90366-55016×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

main90366-55029×2iDA11#,DB10#,FA100,11#,FB100,FC100197003-200112

sub90366-55054

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90366-35015×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-197003

main90366-35032×2iDA11#,DB10#,FA100,11#,FB100,FC100197003-200112

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-28014×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

43510ENUT (FOR STEERING KNUCKLE)

main90171-28006×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

43511HUB, FRONT AXLE

main43511-55030×2iDA11#,DB10#,FA100,11#,FB100196903-197003

main43511-55031×2iDA11#,DB10#,FA100,11#,FB100197003-200112

main43511-55040×2iFC100196903-197403

43514CAP, FRONT HUB GREASE

main43423-55030×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-55901iFB100196903-197003

main43510-59025iFB100197003-197105

main43520-55050iFC100196903-197003

main43520-55901iDA11#,DB10#,FA100,11#196903-197003

main43520-55902iDA11#,DB105,FA100,115197404-200112

main43520-59015iFC100197003-197201

main43520-59016iFC100197201-197403

main43520-59025iDA11#,DB10#,FA100,11#197003-197201

main43520-59026iDA11#,DB10#,FA100,11#197201-197403

ISO

43524SPACER, FRONT WHEEL INNER BEARING

main43524-55010×2iDA11#,DB10#,FA100,11#,FB100,FC100196903-200112

9017019145

main90170-19145

9017020005

main90170-20005

9321915010

main93219-15010

9538105045

main95381-05045

20 parts on this diagram · 2 diagrams in section
