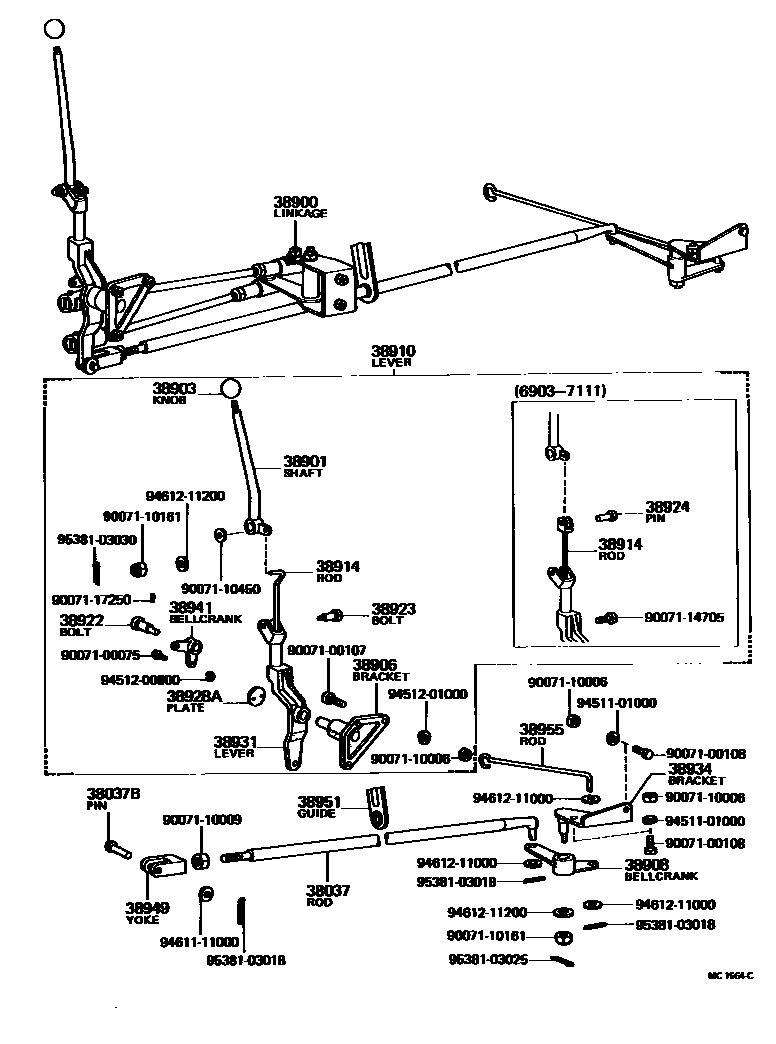

POWER TAKE-OFF LEVER & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

38037ROD SUB-ASSY, VALVE CONTROL, REAR

main38905-93004iDA110,FA100..DMP197704-200112

main38952-93003iDA110,FA100,110..RHD..DMP196903-197704

main38953-93003iDA110,FA100,110..LHD..DMP196903-197704

38037BPIN, VALVE CONTROL REAR ROD

main38925-93000iDA110,FA100,110..DMP196903-197704

38900LINKAGE ASSY, CONTROL

main38900-93010iFA100..RHD..DMP..4F196903-197704

main38900-93011iDA110,FA100,110..RHD..DMP..5F196903-197704

main38900-93012iFA100..LHD..DMP..4F196903-197704

main38900-93013iDA110,FA100,110..LHD..DMP..5F196903-197704

38901SHAFT SUB-ASSY, CONTROL

main38903-93001iDA110,FA100,110..RHD..DMP196903-197704

main38906-93000iDA110,FA100,110..LHD..DMP196903-197704

38903KNOB SUB-ASSY, CONTROL

main38916-93004iDA110,FA100..DMP197704-200112

main38917-93001iDA110,FA100,110..DMP196903-197704

38906BRACKET SUB-ASSY, CONTROL SHAFT, LOWER

main38916-93002iDA110,FA100,110..RHD..DMP196903-197704

main38916-93003iDA110,FA100,110..LHD..DMP196903-197704

main38989-93000iDA110,FA100..RHD..DMP197704-200112

main38989-93001iDA110,FA100..LHD..DMP197704-200112

38908BELLCRANK SUB-ASSY, REAR SHIFT ROD

main38908-93000iDA110,FA100,110..DMP196903-197704

38910LEVER ASSY, DUMP

main38910-93002iDA110,FA100,110..RHD..DMP196903-197704

main38910-93003iDA110,FA100,110..LHD..DMP196903-197704

main38910-93004iDA110,FA100..RHD..DMP197704-200112

main38910-93005iDA110,FA100..LHD..DMP197704-200112

38914ROD, POWER TAKE-OFF GEAR SHIFT

main38914-93000iDA110,FA100,110..DMP196903-197111

main38914-93001iDA110,FA100,110..DMP197111-197704

38922BOLT, POWER TAKE-OFF GEAR SHIFT BELLCRANK SET

main38922-93000iDA110,FA100,110..DMP196903-197111

main38922-93001iDA110,FA100,110..DMP197111-197704

38923BOLT, POWER TAKE-OFF GEAR SHIFT

main38923-93001iDA110,FA100,110..DMP196903-197111

main38923-93002iDA110,FA100,110..DMP197111-197704

38924PIN, POWER TAKE-OFF GEAR SHIFT

main38924-93000iDA110,FA100,110..DMP196903-197111

38928APLATE, DUMP LEVER LOWER BUSH

main38918-93000iDA110,FA100,110..DMP196903-197704

38931LEVER, VALVE LINK

main38905-93000iDA110,FA100,110..RHD..DMP196903-197111

main38905-93001iDA110,FA100,110..LHD..DMP196903-197111

main38905-93002iDA110,FA100,110..RHD..DMP197111-197704

main38905-93003iDA110,FA100,110..LHD..DMP197111-197704

main38931-93002iDA110,FA100..DMP197704-200112

38934BRACKET, BELLCRANK

main38933-93003iDA110,FA100,110..DMP196903-197704

38941BELLCRANK TAKE-OFF GEAR SHIFT

main38904-93000iDA110,FA100,110..DMP196903-197704

38949YOKE, VALVE CONTROL REAR ROD

main38949-93000iDA110,FA100,110..DMP196903-197704

38951GUIDE, OIL CONTROL ROD

main38951-93001iDA110,FA100,110..DMP196903-197704

38955ROD, BALL JOINT

main38955-93000iDA110,FA100,110..DMP196903-197704

9007100075

main90071-00075

9007100107

main90071-00107

9007100108

main90071-00108

9007110006

main90071-10006

9007110009

main90071-10009

9007110161

main90071-10161

9007110450

main90071-10450

9007114705

main90071-14705

9007117250

main90071-17250

9451101000

main94511-01000

9451200800

main94512-00800

9451201000

main94512-01000

9461111000

main94611-11000

9461211000

main94612-11000

9461211200

main94612-11200

9538103018

main95381-03018

9538103025

main95381-03025

9538103030

main95381-03030

37 parts on this diagram · 9 diagrams in section
