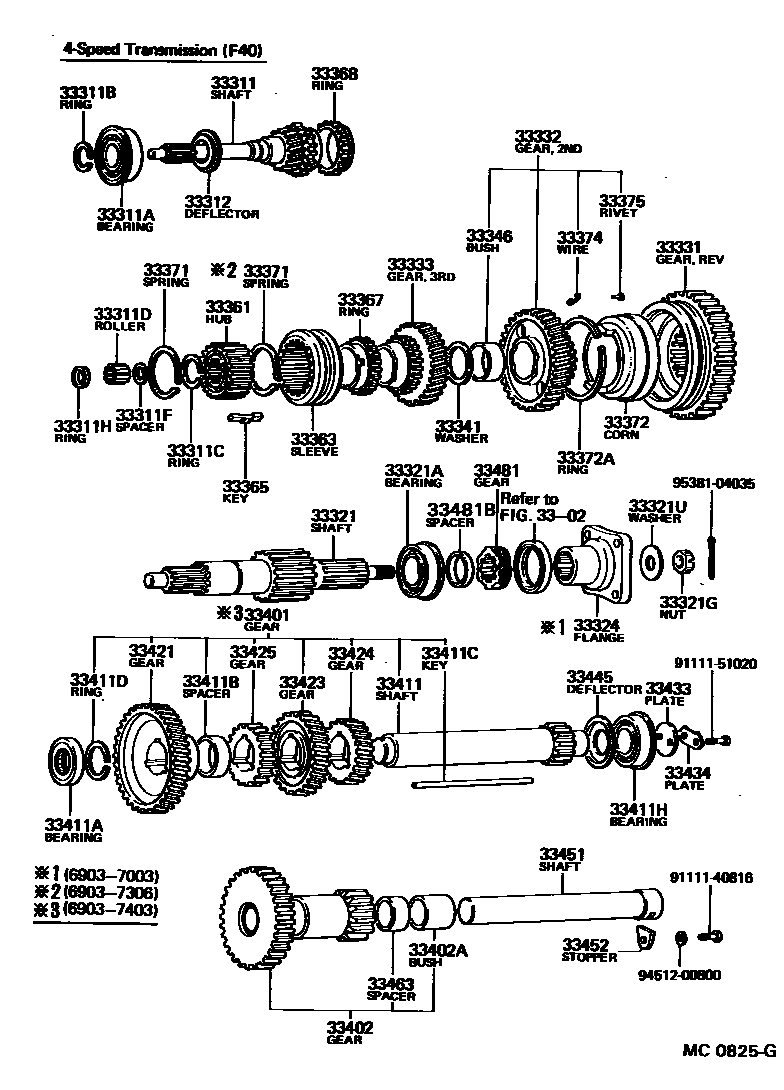

TRANSMISSION GEAR (MTM)
3302
33311SHAFT, INPUT
N=19
N=21,OVER DRIVE
N=17
N=17
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=3.31-3.42,T=3.31-3.42
T=3.20-3.31,T=3.20-3.31
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
T=2.5
T=2.3
T=3.2
33311DBEARING, INPUT SHAFT
33311FSPACER (FOR INPUT SHAFT)
33311HRING, NEEDLE ROLLER BEARING SERVICE
33312DEFLECTOR, TRANSMISSION FRONT BEARING OIL
33321SHAFT, OUTPUT
N=11
N=11
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
33324FLANGE, OUTPUT SHAFT COMPANION (MTM)
33331GEAR, REVERSE
N=42
main33331-55021iDA115..1SR;DB10#,FB100;DA110,116..5FO;DA115..5FO..2SR;DA110,116,FA100,11#..5FD..1SR196903-197704
N=47
N=46
N=44
N=46
33332GEAR, 2ND
N=30
N=40
N=40
33333GEAR, 3RD
N=23
N=32,DIRECT DRIVE
N=30,OVER DRIVE
33341WASHER, 2ND & 3RD GEAR THRUST
2ND
3RADIAL
33346BUSH, 2ND GEAR
33361HUB, TRANSMISSION CLUTCH, NO.1
33363SLEEVE, TRANSMISSION HUB, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33372CONE, 2ND SPEED SYNCHRONIZING
33372ARING, 2ND SYNCHRONIZING CORN SNAP
33374WIRE, 2ND GEAR SYNCHRONIZER
33375RIVET, 2ND GEAR SYNCHRONIZER
33401GEAR SUB-ASSY, COUNTER
33402GEAR SUB-ASSY, REVERSE IDLER
N=30:19
main33402-55031iDA115..1SR;DB10#,FB100;DA110,116..5FO;DA115..5FO..2SR;DA110,116,FA100,11#..5FD..1SR196903-197210
N=23,18
N=23,19
main33461-55032iDB10#;DA115..1SR;DA110,116..5FO;DA115..5FO..2SR;DA110,116,FA100,11#..5FD..1SR197210-197704
N=23,18
N=23,19
N=23,19
N=23,20
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411COUNTERSHAFT
N=14
main33411-55021iDA115..1SR;DB10#,FB100;DA110,116..5FO;DA115..5FO..2SR;DA110,116,FA100,11#..5FD..1SR196903-197704
N=18,23,14
N=18,23,15
N=18,22,15
N=18,22,16
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411BSPACER(FOR COUNTER GEAR BEARING)
33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=3.2
T=3.0
T=2.8
T=3.4
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33421GEAR, COUNTER
N=40
N=45
N=43
33423GEAR, COUNTERSHAFT 3RD SPEED
N=31,DIRECT DRIVE
N=28
N=33
33424GEAR, COUNTERSHAFT 2ND SPEED
N=20
33425GEAR, COUNTERSHAFT REVERSE
N=23
33433PLATE, COUNTER GEAR REAR BEARING LOCK
33434PLATE, COUNTER GEAR REAR BEARING LOCK BOLT
33445DEFLECTOR, OIL, COUNTER GEAR REAR BEARING
33451SHAFT, REVERSE IDLER GEAR
33452STOPPER, REVERSE IDLER GEAR SHAFT
33463SPACER, REVERSE IDLER GEAR BUSH
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6,W/9.00-20 TIRE
N=6
N=6,W/9.00-20 TIRE
SMG R=21:6
N=6
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9111140816
main91111-40816
9111151020
main91111-51020
9451200800
main94512-00800
9538104035
main95381-04035
54 parts on this diagram · 2 diagrams in section
