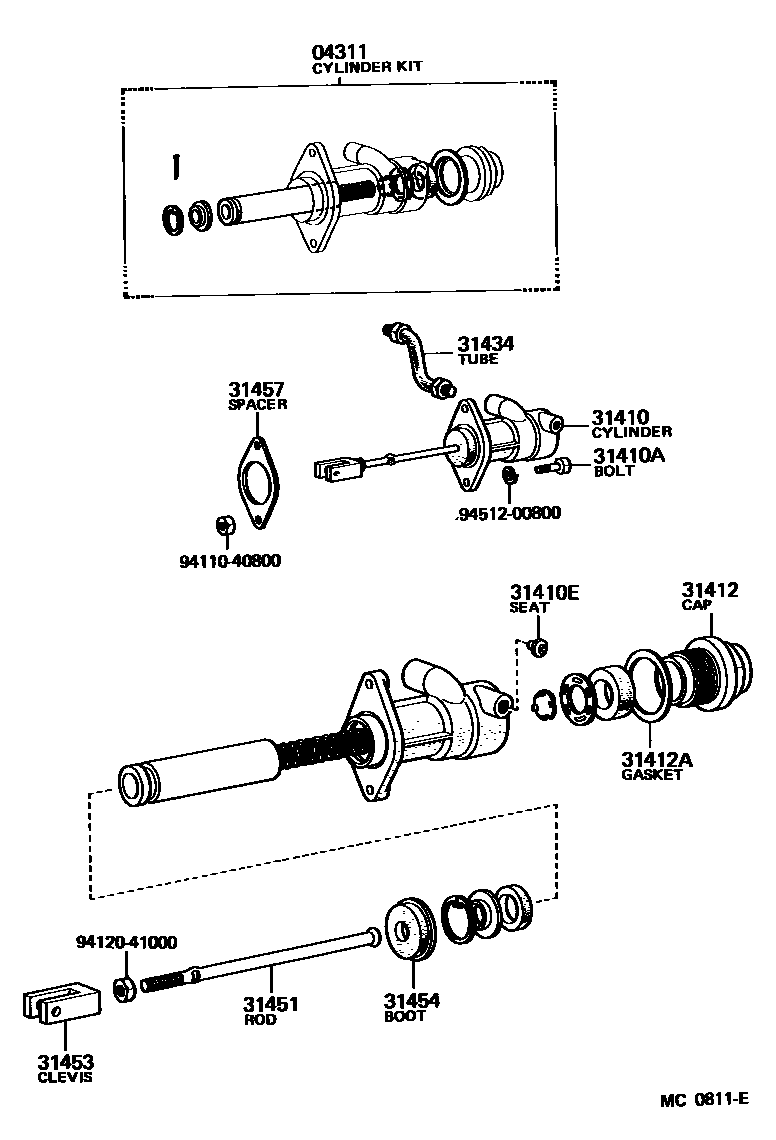

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-40010iDA11#,DB10#,FA100,11#,FC100196903-197704

main04311-55020iDA11#,FA100,115197704-198704

sub04311-55021

main04311-55021iDA11#198704-200112

sub04311-55022

main04311-57010iFB100196903-197105

31410CYLINDER ASSY, CLUTCH MASTER

main31410-55013iDA11#,FA100,11#,FC100196903-197704

main31410-55021iDB10#196903-197703

main31410-55040iDA11#,FA100,115197704-198704

sub31410-55041

main31410-55041iDA11#198704-198710

sub31410-55042

main31410-55042iDA11#198710-200112

main31410-57011iFB100196903-196908

sub31410-57012

sub31452-35011

sub94125-41200

main31410-57012iFB100196908-197105

ISO

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91111-40832iDA11#,DB10#,FA100,11#,FB100,FC100196903-196908

sub91111-50832

main91111-50832iDA11#,DB10#,FA100,11#,FB100,FC100196908-197704

main91611-60832iDA11#,FA100,115197704-200112

31410ESEAT, UNION(FOR CLUTCH MASTER CYLINDER)

main90410-05010iDA11#,DB10#,FA100,11#,FC100196903-200112

31412CAP, CLUTCH MASTER CYLINDER

main31412-30020iDA11#,DB10#,FA100,11#,FC100196903-197704

main31414-35010iFB100196903-197105

31412AGASKET(FOR CLUTCH MASTER CYLINDER CAP)

main90430-32023iFB100196903-197105

main90430-34017iDA11#,DB10#,FA100,11#,FC100196903-197704

31434TUBE, CLUTCH RESERVOIR

main47209-55012iDA11#,DB10#,FA100,11#,FC100196903-197704

main90447-18009iFB100196903-197105

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-30030iDA11#,FA100,115197704-200112

main31451-35010iFB100196903-197105

sub31451-35011

sub31452-35011

sub94125-41200

main31451-55010iDA11#,FA100,11#,FC100196903-197308

main31451-55020iDB10#196903-197703

main31451-60030iDA11#,FA100,11#,FC100197308-197704

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31452-35010iFB100196903-196908

sub31452-35011

sub31451-35011

sub94125-41200

main31452-35011iFB100196908-197105

main31453-30011iDB10#196903-197703

main47264-30010iDA11#,FA100,11#,FC100197308-200112

31454BOOT, CLUTCH MASTER CYLINDER

main31454-30020iDA11#,DB10#,FA100,11#,FC100196903-197704

main31454-30030iDA11#,FA100,115197704-200112

main31454-35010iFB100196903-197105

31457SPACER, CLUTCH MASTER CYLINDER

main31457-55010iDA11#,FA100,11#,FC100196903-197704

main31457-96518iDB10#196903-197703

9411040800

main94110-40800

9412041000

main94120-41000

9451200800

main94512-00800

14 parts on this diagram · 3 diagrams in section
