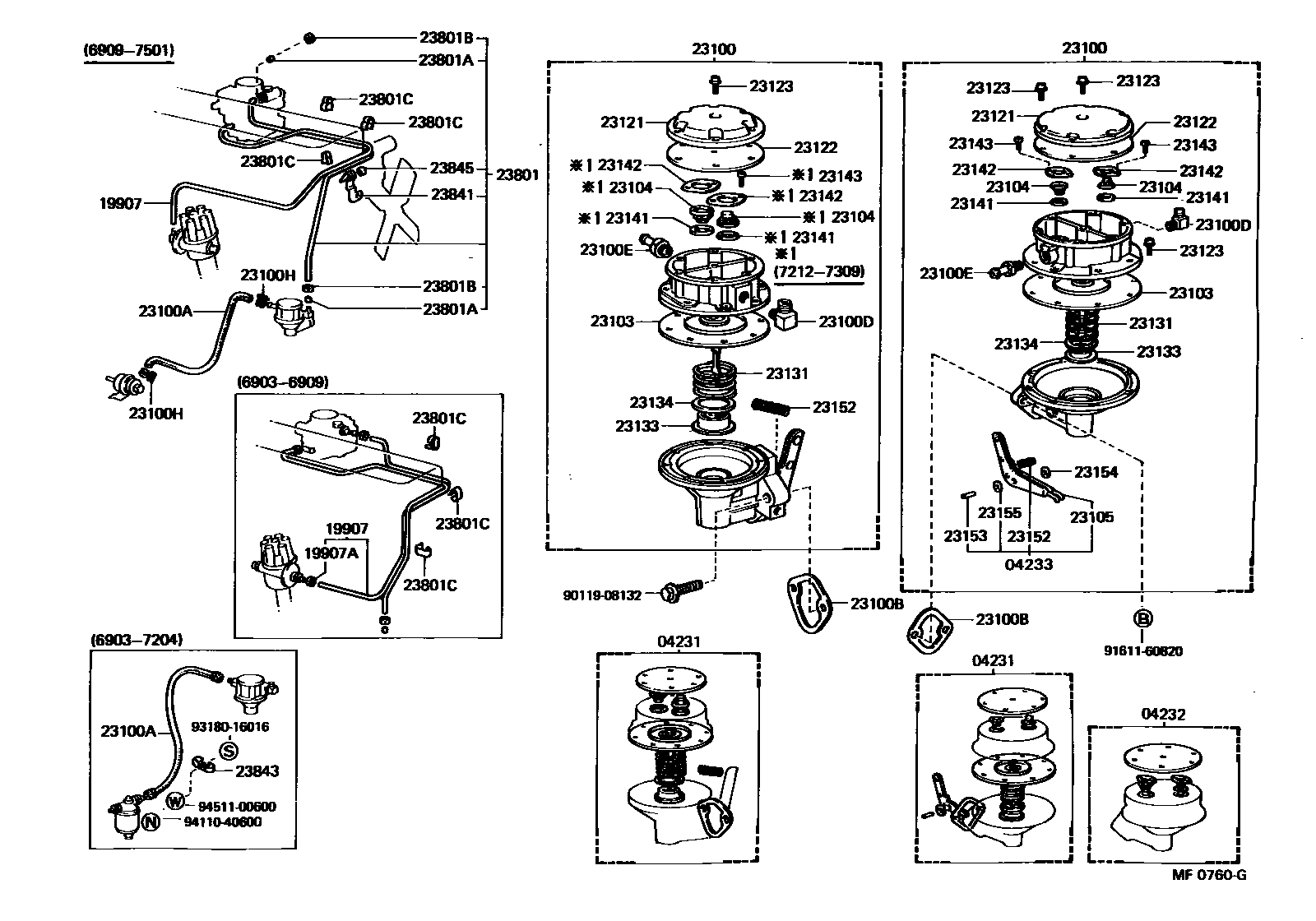

FUEL PUMP & PIPE

0001 1 0002 1 0003 1

04231PUMP KIT, FUEL

main04231-60070iF..FA100,11#,FB100,FC100196903-197212

main04231-60071iF..FA100,11#,FC100197212-197501

main04231-61010iF..FA100,115197501-197909

04232VALVE KIT, FUEL PUMP

main04232-60061iF..FA100,11#,FB100,FC100196903-197212

04233ARM KIT, FUEL PUMP ROCKER

main04233-60062iF..FB100196903-197212

19907HOSE, VACUUM, NO.1

main19907-60032iF..FA100,11#,FB100,FC100196903-196909

main90445-07479iF..FA100,11#,FB100,FC100196909-197601

main90445-08091iF..FA100,115197601-198007

sub90445-08201

main90445-08201iF..FA100,115198007-198207

sub90445-08207

19907ANUT, UNION(FOR VACUUM HOSE SETTING)

main90402-08021iF..FA100,11#,FB100,FC100196903-196909

23100PUMP ASSY, FUEL

main23100-60050iF..FA100,11#,FB100,FC100196903-197004

sub23100-60051

main23100-60051iF..FA100,11#,FB100,FC100197004-197205

sub23100-69035

main23100-60060iF..FA100,11#,FC100197205-197212

sub23100-69045

main23100-60061iF..FA100,11#,FC100197212-197309

sub23100-60062

main23100-60062iF..FA100,11#,FC100197309-197501

sub23100-61010

main23100-61010iF..FA100,115197501-197607

sub23100-61011

main23100-61011iF..FA100,115197607-197803

main23100-61030iF..FA100,115197803-197909

main23100-61050iF..FA100,115197909-198207

23100AHOSE, FUEL

main23820-61080iF..FA100,115198003-198207

main90923-01014iF..FA100,11#,FB100,FC100196903-196911

sub90923-01125

main90923-01125iF..FA100,11#,FB100,FC100196911-197110

sub95323-07055

main95322-07055iF..FA100,11#,FC100197110-197202

main95323-07055iF..FA100,11#,FC100197202-197204

main95331-08030iF..FA100,115197505-197708

L=300

sub95332-08030

main95331-08032iF..FA100,11#,FC100197204-197505

L=320

sub95332-08032

main95332-08030iF..FA100,115197708-197803

L=300

sub95333-08030

main95332-08034iF..FA100,115197803-197904

L=340

sub95332-08040

main95332-08040iF..FA100,115197904-198003

*H,L=340

sub95333-08040

23100BGASKET, FUEL PUMP

main90923-05003iF..FA100,11#,FB100,FC100196903-197907

sub90923-05005

main90923-05005iF..FA100,115197907-198207

sub90923-05019

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main23116-60030iF..FA100,11#,FB100,FC100196903-197909

23100EUNION, NIPPLE(FOR FUEL INLET)

main90404-13105iF..FA100,11#,FB100,FC100196903-197205

main90404-51244iF..FA100,11#,FC100197309-197909

main90404-51266iF..FA100,11#,FC100197205-197309

23100HCLIP(FOR FUEL HOSE)

main90467-13130iF..FA100,11#,FC100197204-197212

main90467-13138iF..FA100,11#,FC100197212-197608

sub96132-30800

main96132-30800iF..FA100,115197608-198207

sub96132-51300

23103DIAPHRAGM SUB-ASSY

main23103-60021iF..FA100,11#,FB100,FC100196903-197212

sub23103-60050

main23103-60050iF..FA100,11#,FC100197212-197909

23104VALVE SUB-ASSY

main23104-60010iF..FA100,11#,FB100,FC100196903-197309

23105ARM SUB-ASSY, ROCKER

main23105-60020iF..FA100,11#,FB100,FC100196903-197212

23121COVER, FUEL PUMP

main23121-60020iF..FA100,11#,FB100,FC100196903-197212

main23121-60050iF..FA100,11#,FC100197212-197909

23122GASKET, FUEL PUMP COVER

main23122-60010iF..FA100,11#,FB100,FC100196903-197501

main23122-61010iF..FA100,115197501-197909

23123SCREW, COVER SET, NO.1

main23123-60021iF..FA100,11#,FB100,FC100196903-196907

sub23123-60022

main23123-60022iF..FA100,11#,FB100,FC100196907-197309

main93319-15014iF..FA100,11#,FC100197309-197909

23131SPRING, DIAPHRAGM(FOR FUEL PUMP)

main23131-60010iF..FA100,11#,FB100,FC100196903-197909

23133PACKING, OIL SEAL(FOR FUEL PUMP)

main23133-60050iF..FA100,11#,FB100,FC100196903-197909

23134RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)

main23134-40011iF..FA100,11#,FB100,FC100196903-197909

23141PACKING, VALVE

main23141-60010iF..FA100,11#,FB100,FC100196903-197309

23142RETAINER, VALVE

main23142-60010iF..FA100,11#,FB100,FC100196903-197309

23143SCREW, VALVE RETAINER SET

main23143-60021iF..FA100,11#,FB100,FC100196903-197309

23152SPRING, ROCKER ARM

main23152-60020iF..FA100,11#,FB100,FC100196903-197909

23153PIN, ROCKER ARM

main23153-60020iF..FA100,11#,FB100,FC100196903-197212

23154SPACER, ROCKER ARM

main23154-60010iF..FA100,11#,FB100,FC100196903-197212

23155WASHER, ROCKER ARM PIN

main23155-60020iF..FA100,11#,FB100,FC100196903-197212

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-60140iF..FA100,11#,FB100,FC100196903-197302

sub23801-60142

sub23841-60022

main23801-60142iF..FA100,11#,FC100197302-197501

sub23811-60142

sub90402-13041

sub96395-71400

main23801-61010iF..FA100,115197501-197702

sub23811-61010

sub90402-13041

sub96395-71400

main23811-61010iF..FA100,115197702-197909

main23811-61030iF..FA100,115197909-197912

sub23811-61031

sub23841-61021

sub23842-61031

main23811-61031iF..FA100,115197912-198008

sub23811-61032

main23811-61032iF..FA100,115198008-198207

23801AOLIVE(FOR FUEL PIPE)

main96395-71400iF..FA100,11#,FB100,FC100196903-198207

23801BNUT, UNION(FOR FUEL PIPE)

main90402-13041iF..FA100,11#,FB100,FC100196903-198207

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90468-05005iF..FA100,11#,FB100,FC100196903-196909

main90468-05025iF..FA100,11#,FB100,FC100196909-197909

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-60011iF..FA100,11#,FB100,FC100196903-196909

main23841-60020iF..FA100,11#,FB100,FC100196909-197209

main23841-60021iF..FA100,11#,FC100197209-197302

main23841-60022iF..FA100,11#,FC100197302-197501

main23841-61010iF..FA100,115197501-197909

main23841-61020iF..FA100,115197909-197912

main23841-61021iF..FA100,115197912-198207

23843CLAMP, FUEL PIPE(HOSE), NO.3

main23843-60010iF..FA100,11#,FB100,FC100196903-197204

23845INSULATOR, FUEL PIPE

main23845-20010iF..FA100,11#,FB100,FC100196903-197302

9011908132

main90119-08132

9161160820

main91611-60820

9318016016

main93180-16016

9411040600

main94110-40600

9451100600

main94511-00600

39 parts on this diagram · 3 diagrams in section
