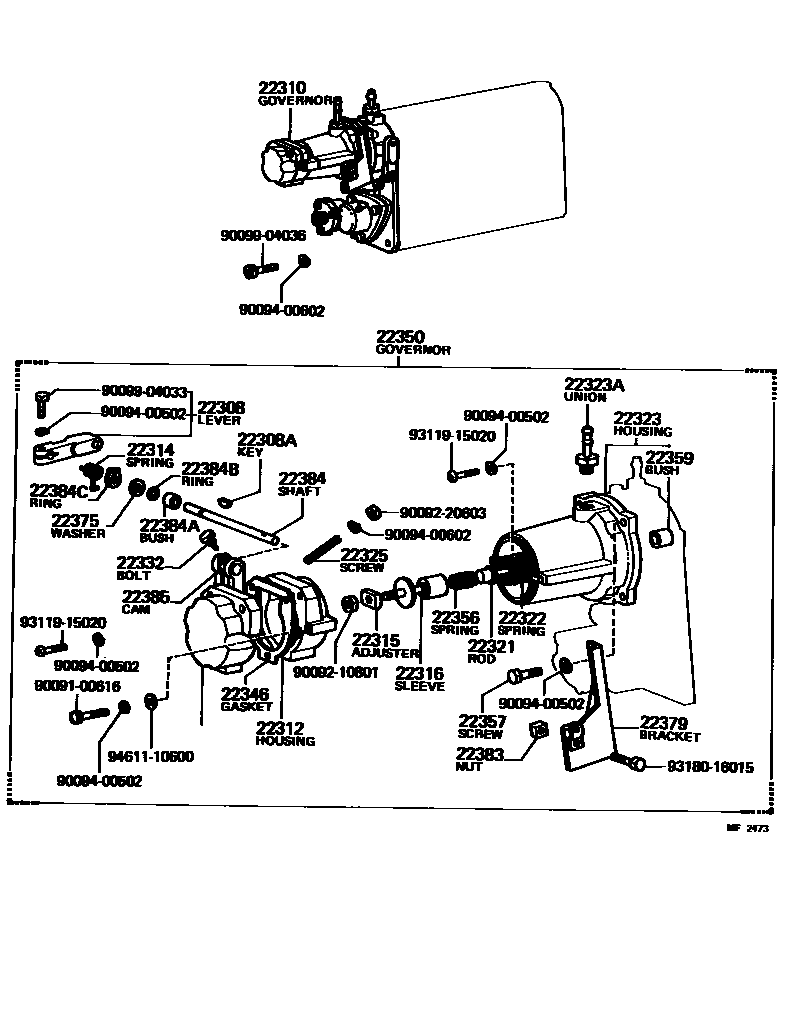

PNEUMATIC GOVERNOR
22308LEVER SUB-ASSY, INJECTION PUMP, NO.2
sub22308-47010
W/EXHAUST BRAKE & HAC
W/EXHAUST BRAKE
W/HIGH ALTITUDE SPEC
22308AKEY(FOR INJECTION PUMP STOP LEVER)
22310GOVERNOR ASSY, INJECTION PUMP
W/EXHAUST BRAKE
W/EXHAUST BRAKE & HAC
W/HIGH ALTITUDE SPEC
22312HOUSING, LEVER
22314SPRING, BACK(FOR GOVERNOR SHAFT)
22315ADJUSTER, IDLING
22316SLEEVE, IDLING SPRING
22321ROD, PUSH
22322SPRING, RETURN(FOR IDLING CAPSULE)
22325SCREW, LEVER
22332BOLT, GOVERNOR STOP
sub22332-77021
22346GASKET, GOVERNOR CAP
22350GOVERNOR ASSY, PNEUMATIC SMALL
22356SPRING, GOVERNOR IDLING
22357SCREW, DIAPHRAGM HOUSING SET
22359BUSH, DIAPHRAGM
22379BRACKET, STOP WIRE
22383NUT, STOP WIRE BRACKET
22384SHAFT, GOVERNOR
22384BRING, O(FOR GOVERNOR SHAFT)
22384CRING, E(FOR GOVERNOR SHAFT)
22385CAM(FOR INJECTION PUMP GOVERNOR)
9009100616
main90091-00616
9009210801
main90092-10801
9009220603
main90092-20603
9009400502
main90094-00502
9009400602
main90094-00602
9009904033
main90099-04033
9009904036
main90099-04036
9311915020
main93119-15020
9318016015
main93180-16015
9461110600
main94611-10600
36 parts on this diagram · 6 diagrams in section
