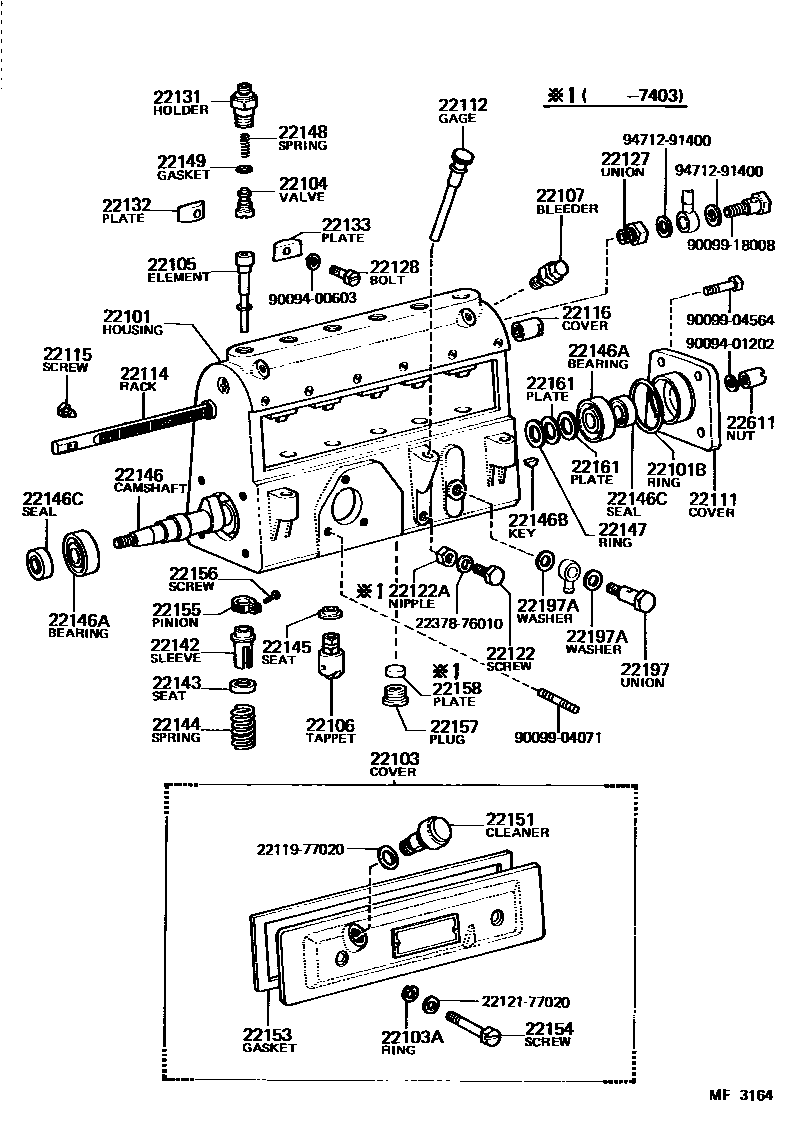

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
22101BRING, O(FOR INJECTION PUMP HOUSING)
22103ARING, SNAP(FOR INJECTION PUMP COVER)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22105ELEMENT SUB-ASSY, INJECTION PUMP
22106TAPPET SUB-ASSY, INJECTION PUMP
22107BLEEDER SUB-ASSY, AIR
22111COVER, INJECTION PUMP CAMSHAFT BEARING
22112GAGE, INJECTION PUMP OIL LEVEL
sub22112-66010
22114RACK, CONTROL
22115SCREW, RACK GUIDE
sub22115-78140
22116COVER, CONTROL RACK
22122SCREW, DRAIN
22122ANIPPLE, DRAIN PLUG
22127UNION, INJECTION PUMP FUEL INLET
22128BOLT(FOR DELIVERY VALVE HOLDER LOCK PLATE)
sub90099-04039
22131HOLDER, DELIVERY VALVE
22132PLATE, DELIVERY VALVE HOLDER REAR LOCK
22133PLATE, DELIVERY VALVE HOLDER FRONT LOCK
22142SLEEVE, PLUNGER CONTROL
sub22142-58230
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146CAMSHAFT, INJECTION PUMP
sub22146-68010
22146ABEARING(FOR INJECTION CAMSHAFT)
22146BKEY(FOR INJECTION PUMP CAMSHAFT)
22146CSEAL, OIL, INJECTION PUMP CAMSHAFT
22147RING, CAMSHAFT ADJUST
22148SPRING, DELIVERY VALVE
sub90501-12126
22149GASKET, DELIVERY VALVE
22151CLEANER, INJECTION PUMP AIR
sub22151-56010
22153GASKET, INJECTION PUMP COVER PLATE
22154SCREW(FOR INJECTION PUMP COVER SETTING)
22155PINION, PLUNGER CONTROL
22156SCREW, PLUNGER CONTROL PINION CLAMP
22157PLUG, INJECTION PUMP FELT PLATE
22158PLATE, INJECTION PUMP CAMSHAFT OIL FELT
22161PLATE, CAMSHAFT SHIM
T=0.10,T=0.10
T=0.12,T=0.12
T=0.14,T=0.14
T=0.16,T=0.16
T=0.18,T=0.18
T=0.50,T=0.50
22197NIPPLE, OVER FLOW
22611NUT, TIMER ROUND
2211977020WASHER, AIR BLEEDER NIPPLE
main22119-77020
2212177020PACKING, AIR BLEEDER SCREW
main22121-77020
2237876010WASHER, DRAIN SCREW
main22378-76010
9009400603
main90094-00603
9009401202
main90094-01202
9009904071
main90099-04071
9009904564
main90099-04564
9009918008
main90099-18008
9471291400
main94712-91400
51 parts on this diagram · 2 diagrams in section
