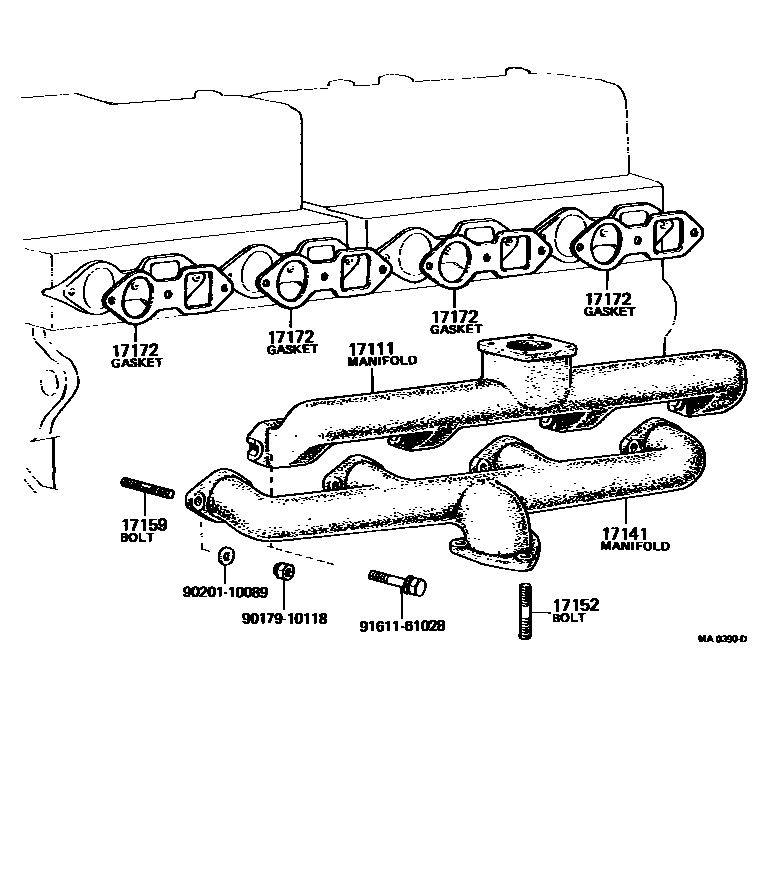

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

17111MANIFOLD, INTAKE

main17111-60070iF..FA100,11#,FB100,FC100196903-196909

main17111-60090iF..FA100,11#,FB100,FC100196909-197109

sub17111-60091

sub90345-51005

main17111-60091iF..FA100,11#,FC100197109-197309

main17111-76010i2D..DA11#,DB10#196903-197704

main17111-77010i2D..DA11#197704-197811

sub17111-77020

main17111-77030i2D..DA11#197811-200112

17141MANIFOLD, EXHAUST

main17104-60040iF..FA100,11#,FB100,FC100196903-197309

sub17104-60041

main17141-76020i2D..DA11#,DB10#196903-197704

main17141-77010i2D..DA11#197704-200112

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10029i2D..DA11#,DB10#196903-197807

main90116-10038i2D..DA11#198308-200112

main90116-10065iF..FA100,11#,FB100,FC100196903-196908

sub92132-41025

main90116-10123i2D..DA11#197704-197807

W/EXHAUST BRAKE

main90116-10123i2D..DA11#197807-198308

main90116-10137iF..FA100,115197501-197509

main90116-10299iF..FA100,115197509-198207

main92132-41025iF..FA100,11#,FB100,FC100196908-197501

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10036i2D..DA11#197801-200112

main90116-10042iF..FA100,11#,FB100,FC100196903-197501

L=37,S=20&13

main90116-10070i2D..DA11#,DB10#196903-197704

main90116-10082i2D..DA11#197704-197801

main90116-12321iF..FA100,115197501-198207

L=40,S=23&13

sub90116-12011

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-60020iF..FA100,11#,FB100,FC100196903-197501

sub17172-60030

main17172-61010iF..FA100,115197501-197607

sub17172-61030

main17172-61030iF..FA100,115197607-198207

sub17172-61031

main17172-76011i2D..DA11#,DB10#196903-197704

sub17172-76012

9017910118

main90179-10118

9020110089

main90201-10089

9161161028

main91611-61028

8 parts on this diagram · 5 diagrams in section
