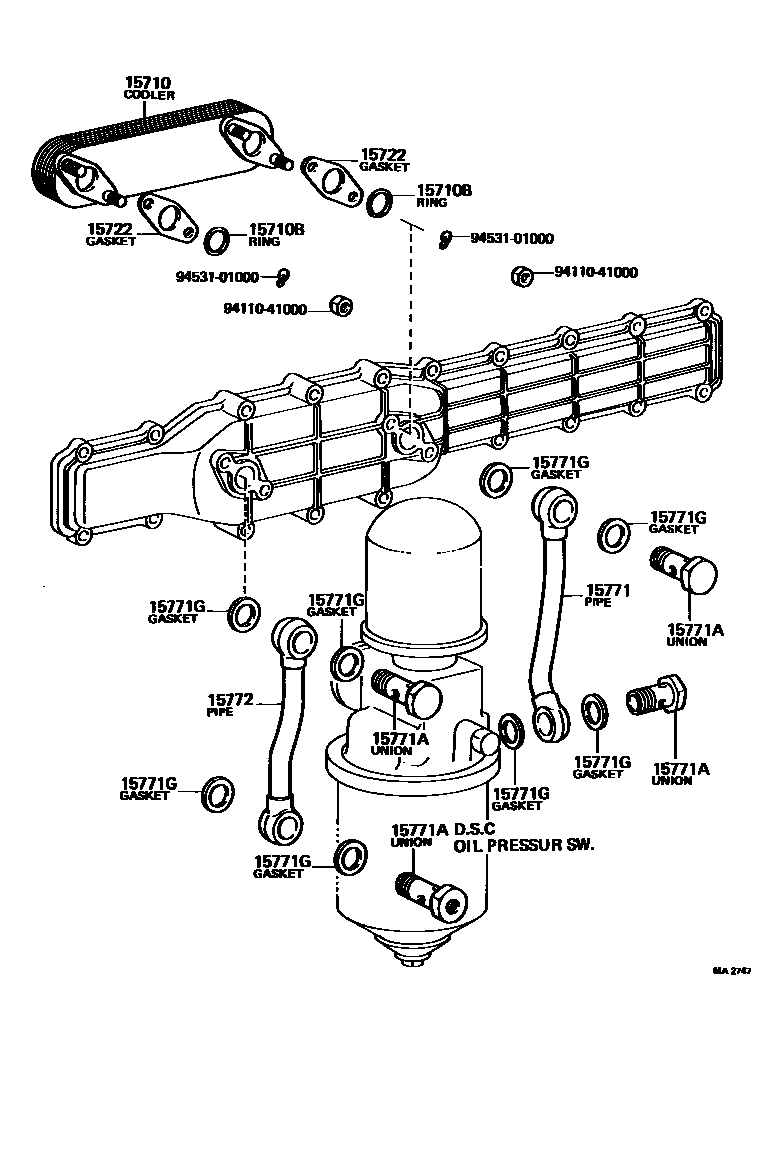

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15710COOLER ASSY, OIL

main15710-61010iF..FA100,115197704-198207

main15710-77010i2D..DA11#197704-200112

15710BRING, O(FOR OIL COOLER)

main90301-21176i2D..DA11#197704-200112

15722GASKET, OIL COOLER

main90923-05008i2D..DA11#197704-200112

sub90923-05025

15771PIPE, OIL, NO.1

main15772-77010i2D..DA11#197704-200112

15771AUNION(FOR OIL PIPE)

main90401-18003i2D..DA11#197704-200112

main90401-18004i2D..DA11#197704-200112

OIL PRESSURE SWICH

15771GGASKET

main90430-18002i2D..DA11#197801-200112

main90430-18012i2D..DA11#197704-197801

15772PIPE, OIL, NO.2

main15773-77011i2D..DA11#197704-200112

9411041000

main94110-41000

9453101000

main94531-01000

9 parts on this diagram · 3 diagrams in section
