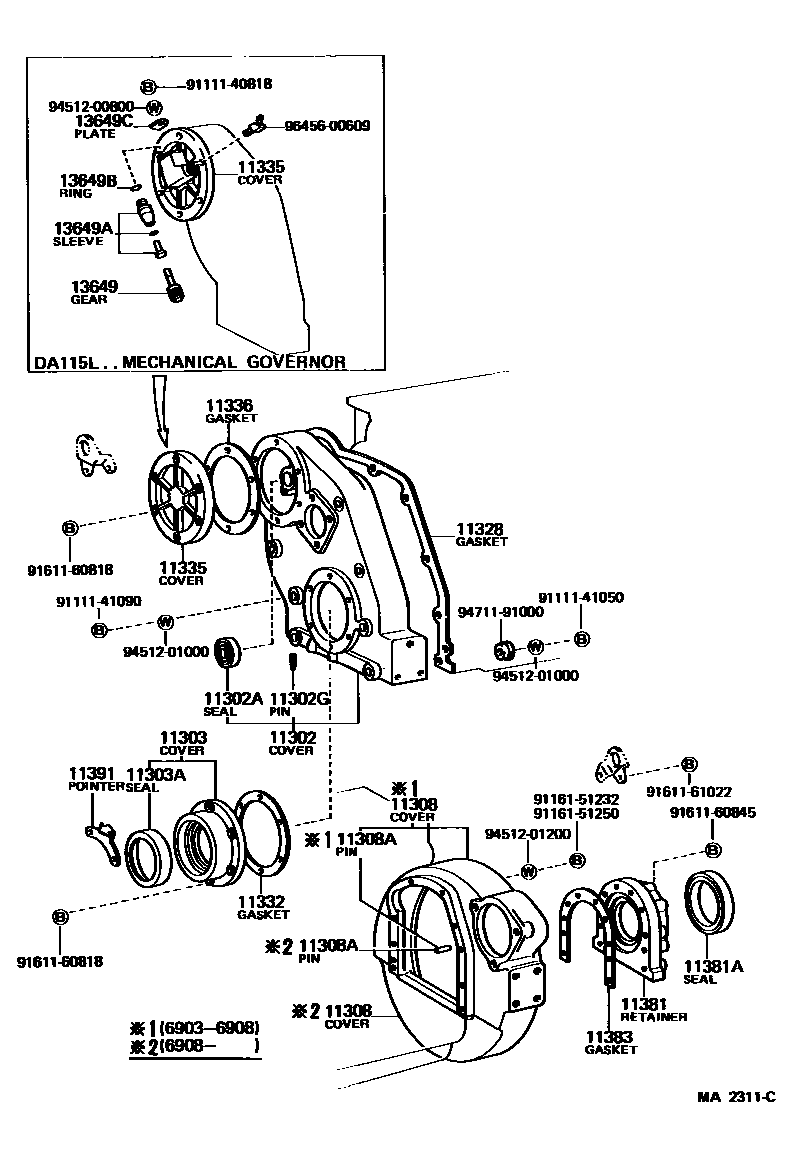

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-60011iF..FA100,11#,FB100,FC100196903-197910

sub11302-61020

main11302-61020iF..FA100,115197910-198207

sub11302-61030

sub11328-61010

main11302-76020i2D..DA11#,DB10#196903-197704

main11302-77020i2D..DA11#197704-200112

main11302-77030i2D..DA11#..LHD198511-200112

W/POWER STEERING

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90310-25006i2D..DA11#,DB10#196903-197704

sub90311-25002

main90311-45069iF..FA100,115197712-198207

TC3 45 68 12

sub90311-45002

main90311-45094iF..FA100,11#,FB100,FC100196903-197712

TC45 68 12X3

sub90311-45069

main90311-65033i2D..DA11#197704-200112

11302GPIN, DOWEL(FOR TIMING GEAR COVER)

main90250-08074i2D..DA11#,DB10#196903-200112

OD=8,L=15

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-76010i2D..DA11#,DB10#196903-197704

sub11331-76010

sub90311-65033

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-65033i2D..DA11#,DB10#196903-197704

11308COVER SUB-ASSY, FLYWHEEL HOUSING

main11308-60011iF..FA100,11#,FC100..4F196903-197408

sub11351-60070

sub91619-61230

main11308-60020iF..FA100,115..5FD196903-198207

sub11351-60021

sub91619-61230

main11308-76010i2D..DA11#,DB10#196903-196908

sub11351-76010

sub90250-10052

main11351-60014iF..FA100,115..4F197408-198008

sub11351-60015

sub91619-61230

main11351-60015iF..FA100,115..4F198008-198207

main11351-76011i2D..DA11#,DB10#196908-197704

sub31112-55010

sub31113-55010

main31112-55010i2D..DA11#197704-198112

sub31112-55011

main31112-55011i2D..DA11#198112-200112

11308APIN, STRAIGHT(FOR FLYWHEEL HOUSING)

main90250-10052i2D..DA11#,DB10#196903-200112

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-60010iF..FA100,11#,FB100,FC100196903-198207

main11328-76010i2D..DA11#,DB10#196903-197704

main11328-77020i2D..DA11#197704-200112

sub11328-77021

main11328-77030i2D..DA11#..LHD198511-200112

W/POWER STEERING

sub11328-77031

11332GASKET, CRANKSHAFT GEAR COVER

main11332-76010i2D..DA11#,DB10#196903-197704

11335COVER, INJECTION GEAR

main11335-76010i2D..DA11#,DB10#196903-197704

main11335-77040i2D..DA11#197204-197704

W/MECHANICAL GOVERNOR

11336GASKET, INJECTION GEAR COVER

main11336-76010i2D..DA11#,DB10#196903-197704

11381RETAINER, ENGINE REAR OIL SEAL

main11381-76010i2D..DA11#,DB10#196903-200112

11381ASEAL, ENGINE REAR OIL

main90311-99020i2D..DA11#,DB10#196903-200112

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-76010i2D..DA11#,DB10#196903-197704

sub11383-77010

main11383-77010i2D..DA11#197704-200112

sub11383-77011

11391POINTER, TIMING

main11391-46010i2D..DA11#197704-200112

main11391-60010iF..FA100,11#,FB100,FC100196903-198207

main13491-76010i2D..DA11#,DB10#196903-197704

13649GEAR, TACHOMETER DRIVEN

main13649-77010i2D..DA11#197204-197704

W/MECHANICAL GOVERNOR

main13649-77010i2D..DA11#197704-200112

13649ASLEEVE SUB-ASSY, TACHOMETER DRIVEN

main33404-20020i2D..DA11#197704-200112

sub33404-29016

main33404-29016i2D..DA115..LHD197204-197704

W/MECHANICAL GOVERNOR

sub33404-39016

13649BRING, O

main90301-18018i2D..DA11#197704-200112

main90301-18018i2D..DA11#197204-197704

W/MECHANICAL GOVERNOR

13649CPLATE, TACHOMETER SLEEVE LOCK

main33485-30010i2D..DA115..LHD197204-197704

W/MECHANICAL GOVERNOR

main33485-30010i2D..DA11#197704-200112

9111140818

main91111-40818

9111141050

main91111-41050

9111141090

main91111-41090

9116151232

main91161-51232

9116151250

main91161-51250

9161160818

main91611-60818

9161160845

main91611-60845

9161161022

main91611-61022

9451200800

main94512-00800

9451201000

main94512-01000

9451201200

main94512-01200

9471191000

main94711-91000

9645600609

main96456-00609

32 parts on this diagram · 3 diagrams in section
