HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

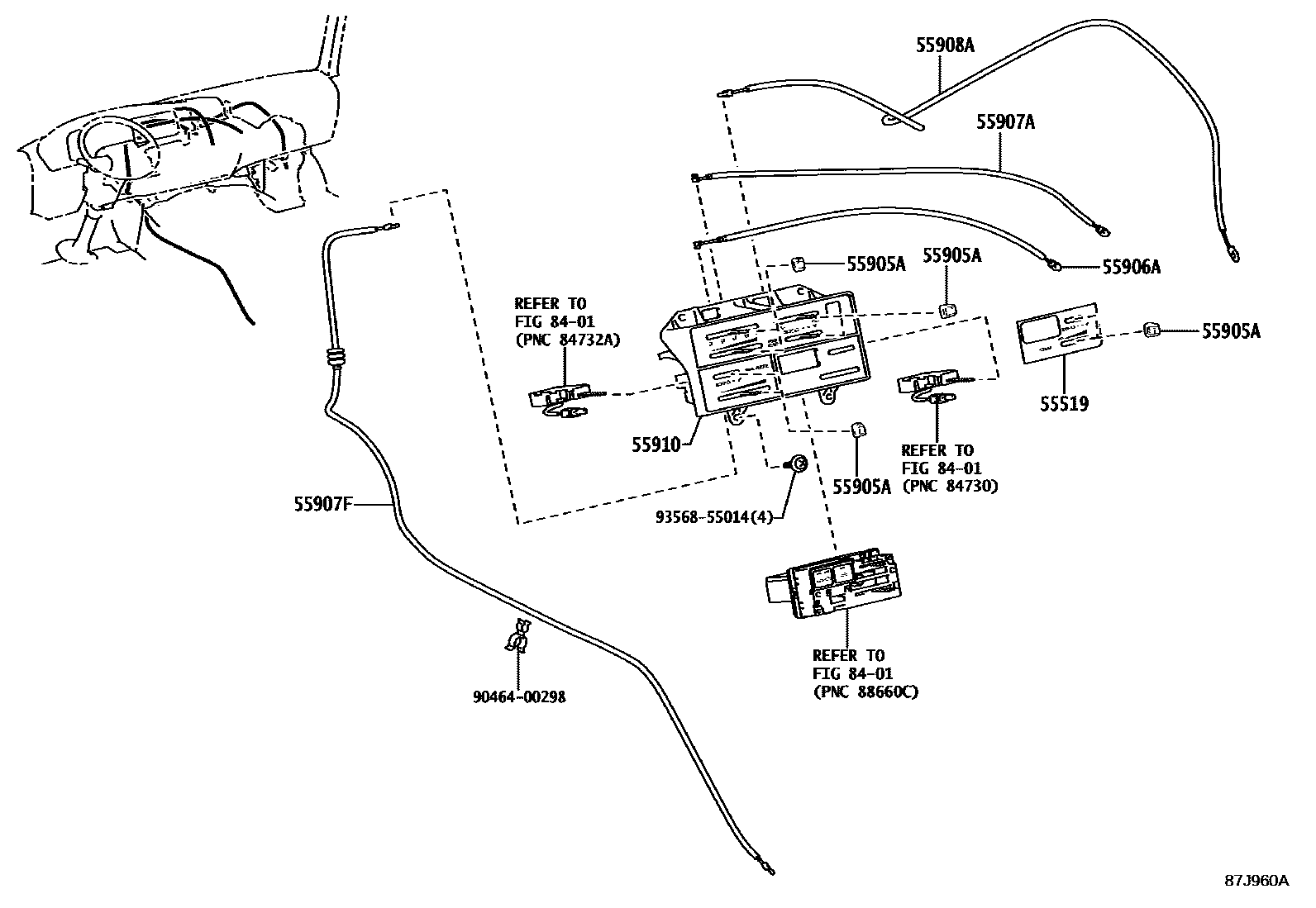

0001 1HEATER CONTROL PANEL 0002 1FRONT HEATER AIR DUCT 0003 1ROOF DUCT 1/2 0004 1ROOF DUCT 2/2 0005 1SENSOR

55519PLATE, HEATER CONTROL NAME

main55519-36020iKMB53202108

55905AKNOB, HEATER CONTROL

main55905-36030iKMB53202108

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-36080iKMB53202108

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36080iKMB53202108

55907FCABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36150iKMB53202108

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-36070iKMB53202108

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36151iKMB53202108

8401

9046400298

main90464-00298

9356855014

main93568-55014

10 parts on this diagram · 5 diagrams in section
