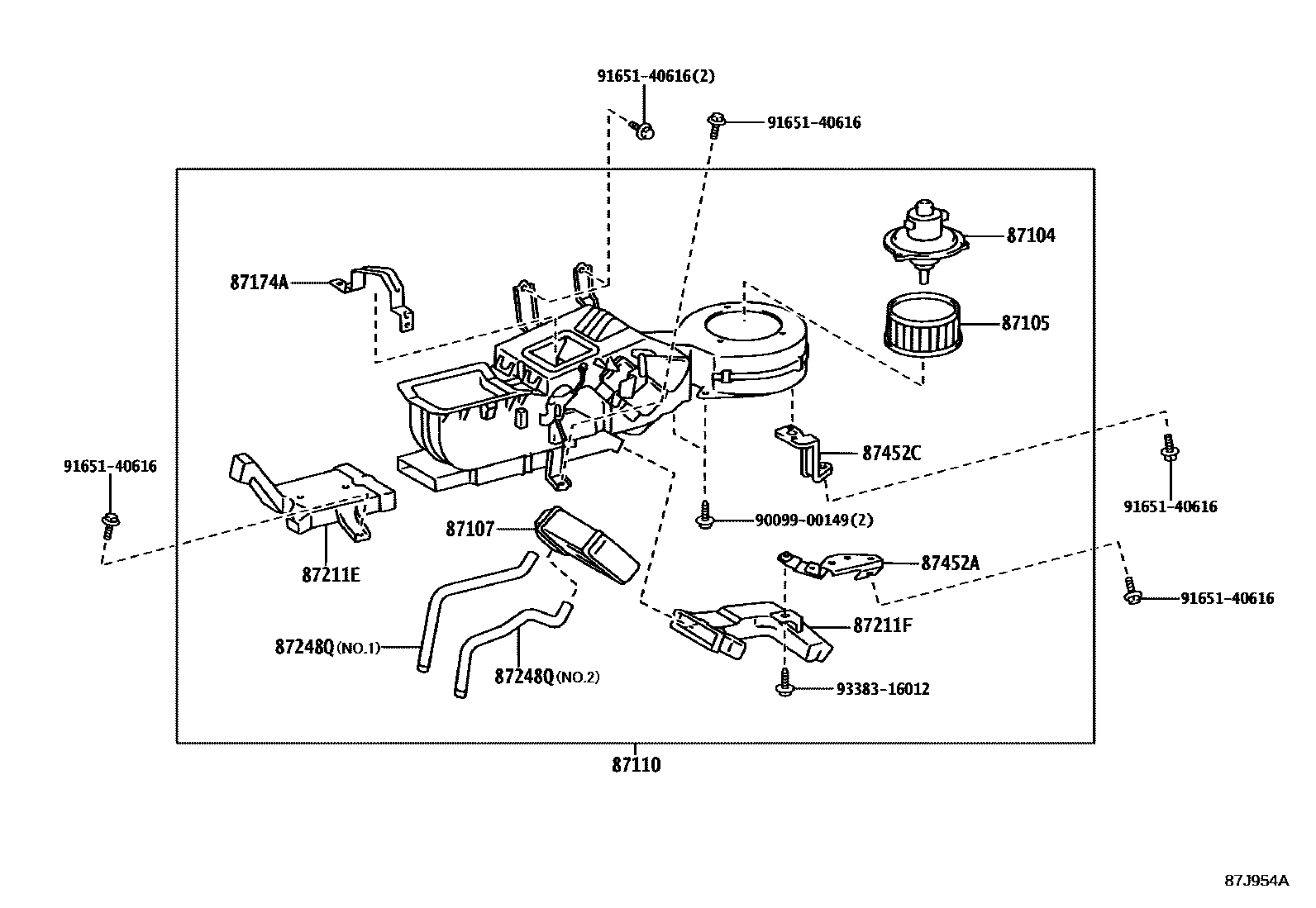

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT 0002 1REAR 0003 1REAR & W(HEATER COVER)

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-36340iKMB53202108

87105FAN SUB-ASSY, HEATER BLOWER

main87105-36100iKMB53202108

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-36200iKMB53202108

87110HEATER ASSY

main87110-0S030iKMB53202108

87174AGUIDE, AIR HEATER

main87174-36060iKMB53202108

87211EDUCT, AIR

main87211-36120iKMB53202108

87211FDUCT, AIR

main87211-36131iKMB53202108

87248QPIPE, FRONT HEATER RADIATOR WATER

main87248-36460iKMB53202108

NO.1

main87248-36470iKMB53202108

NO.2

87452ABRACKET, HEATER, FRONT

main87452-36300iKMB53202108

87452CBRACKET, FRONT HEATER, NO.2

main87452-36310iKMB53202108

9009900149

main90099-00149

9165140616

main91651-40616

9338316012

main93383-16012

13 parts on this diagram · 3 diagrams in section
