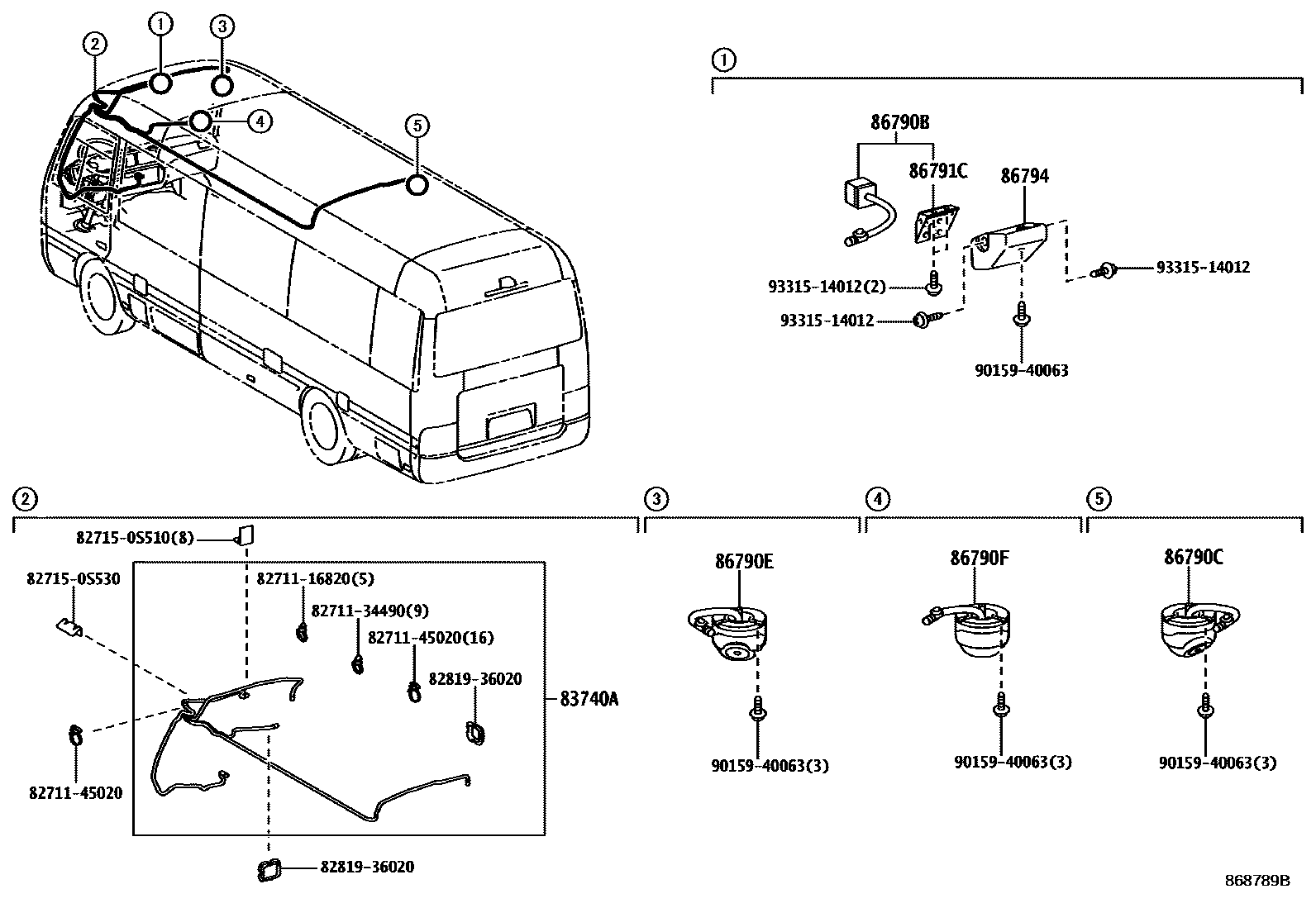

CAMERA & REAR MONITOR DISPLAY
83740ACABLE ASSY, TACHOGRAPH DRIVE
86790BCAMERA ASSY, TELEVISION, FR
86790CCAMERA ASSY, TELEVISION, SIDE
86790ECAMERA ASSY, TELEVISION, SIDE RH
86790FCAMERA ASSY, TELEVISION, SIDE LH
86791BRACKET, TELEVISION CAMERA
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
86794COVER, TELEVISION CAMERA WIRE
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8271134490WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-34490
8271145020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-45020
827150S510BRACKET,WIRING HARNESS CLAMP
main82715-0S510
827150S530BRACKET,WIRING HARNESS CLAMP
main82715-0S530
8281936020GROMMET, WIRING HARNESS
main82819-36020
9015940063
main90159-40063
9331514012
main93315-14012
16 parts on this diagram · 2 diagrams in section
