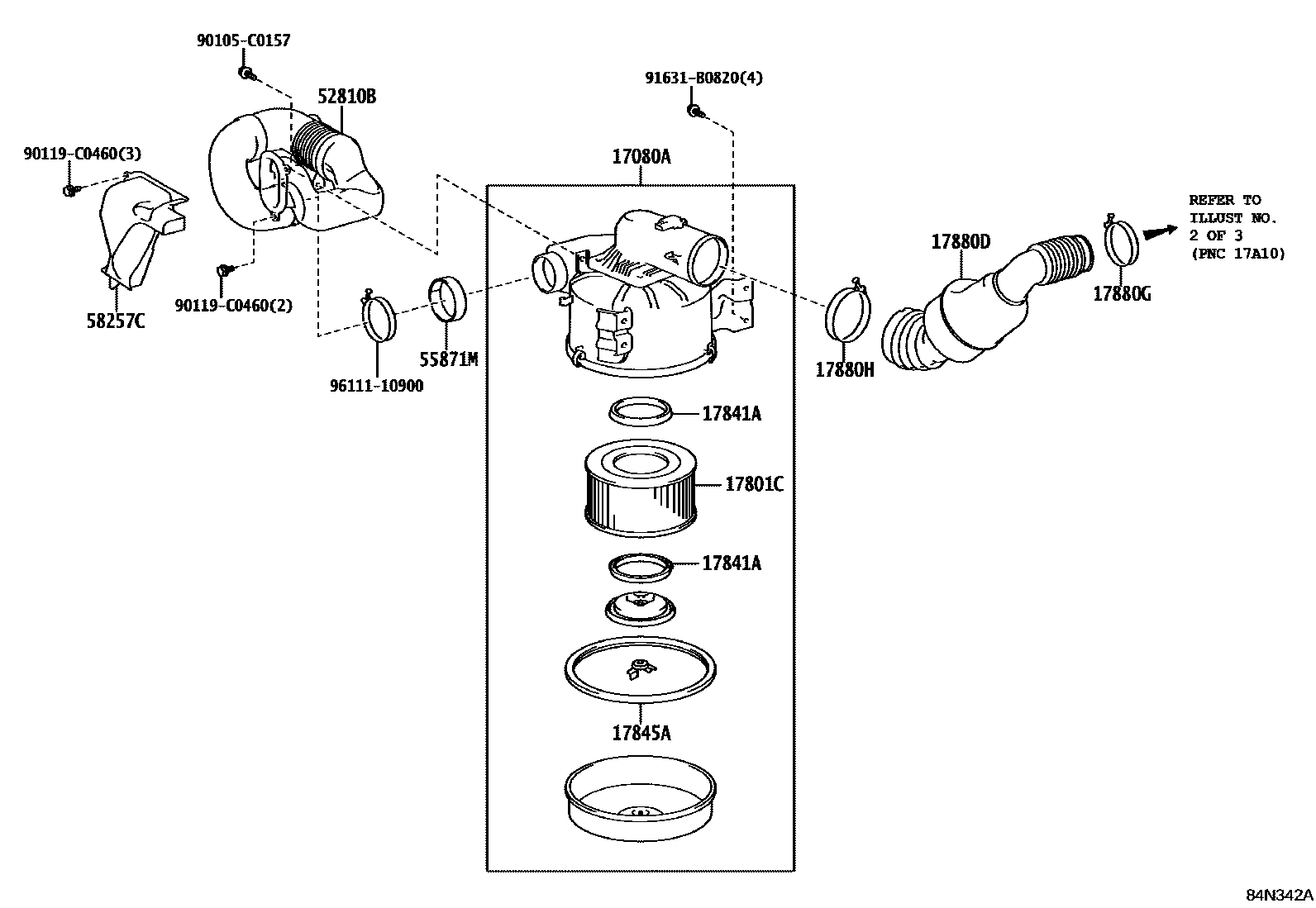

FCEV INTAKE & EXHAUST

0001 1 0002 1 0003 1

17080ACLEANER ASSY, AIR W/AIR FLOW METER

main17080-77010iKM..KMB53202108

17801CELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-58030iKM..KMB53202108

17841AGASKET, FILTER ELEMENT

main17841-68010iKM..KMB53202108

17845AGASKET, AIR CLEANER CASE

main17845-58010iKM..KMB53202108

17880DHOSE ASSY, AIR CLEANER

main17880-77060iKM..KMB53202108

17880GCLAMP, NO.1(FOR AIR CLEANER HOSE ASSY)

main96111-10780iKM..KMB53202108

17880HCLAMP, NO.2(FOR AIR CLEANER HOSE ASSY)

main96111-11180iKM..KMB53202108

52810BDUCT ASSY, COOL AIR INTAKE, NO.1

main52810-0S010iKMB53202108

55871MSEAL, AIR DUCT

main55871-36020iKMB53202108

58257CCOVER, APRON WATER GUARD

main58257-0S020iKMB53202108

90105C0157

main90105-C0157

90119C0460

main90119-C0460

91631B0820

main91631-B0820

9611110900

main96111-10900

14 parts on this diagram · 3 diagrams in section
