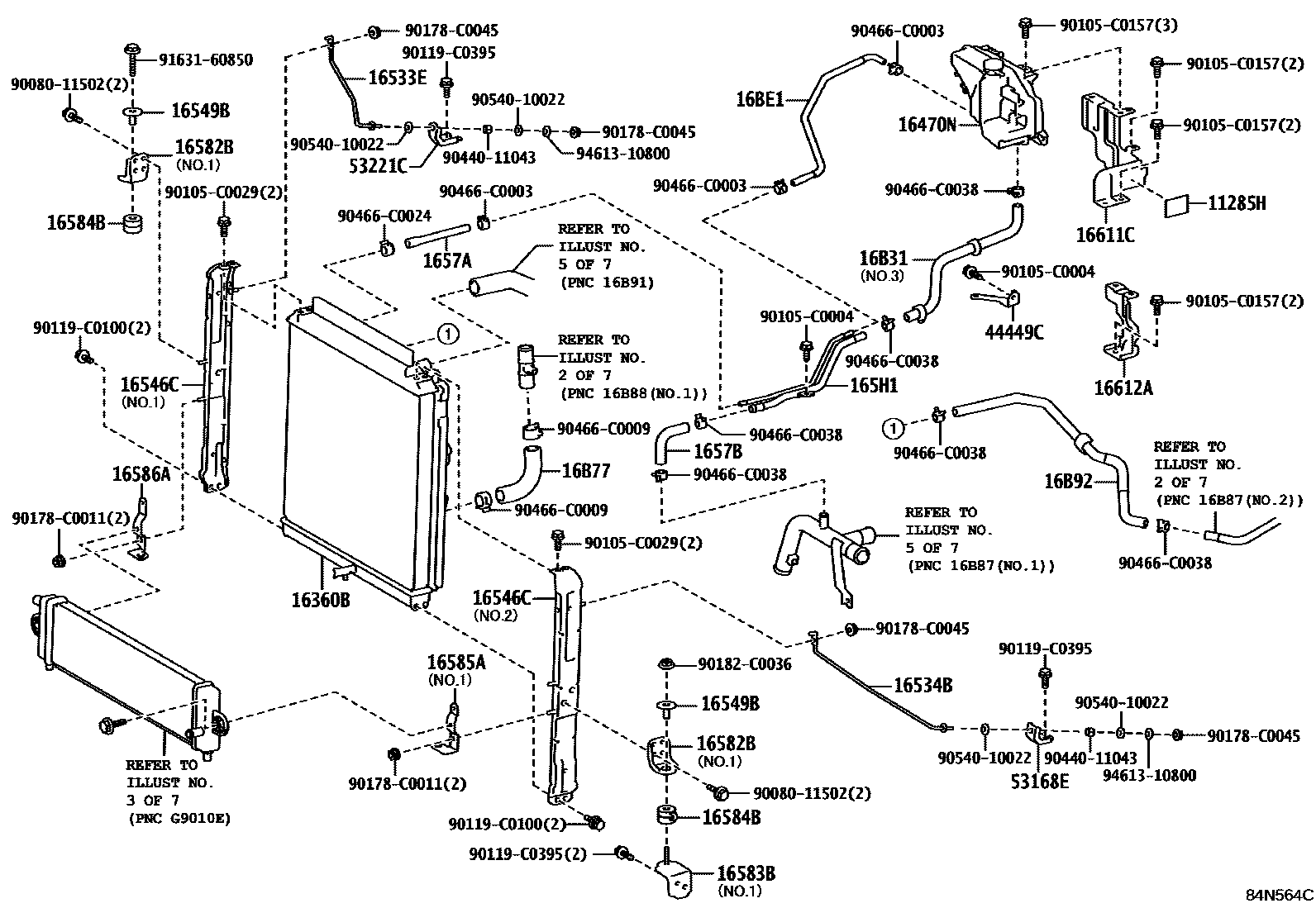

FCEV COOLING
11285HLABEL, COOLANT SYSTEM NOTICE
16360BFAN ASSY, W/MOTOR
16470NTANK ASSY, FC RADIATOR RESERVE
16533ESUPPORT, RADIATOR, RH
16534BSUPPORT, RADIATOR, LH
16549BCOLLAR, RADIATOR SUPPORT
1657AHOSE, FC RADIATOR, NO.10
1657BHOSE, FC RADIATOR, NO.11
16582BBRACKET, RADIATOR, NO.1
NO.1
NO.2
16584BINSULATOR, RADIATOR MOUNTING
16586ABRACKET, RADIATOR, NO.4
165H1PIPE, FC RADIATOR, NO.1
16611CBRACKET, RADIATOR RESERVE TANK
16612ABRACKET, RADIATOR RESERVE TANK, NO.2
16B31HOSE, FC STACK COOLING WATER OUTLET
NO.1
NO.2
NO.3
16B77HOSE, FC RADIATOR OUTLET, NO.1
16B92HOSE, FC SUB-RADIATOR INLET, NO.2
16BE1HOSE, FC COOLING WATER VALVE INLET, NO.1
44449CBRACKET, HOSE SUPPORT, NO.3
53168EBRACKET, RADIATOR BRACE ROD
53221CBRACE, RADIATOR SUPPORT APRON, RH
9008011502
90105C0004
main90105-C0004
90105C0029
main90105-C0029
90105C0157
main90105-C0157
90119C0100
main90119-C0100
90119C0395
main90119-C0395
90178C0011
main90178-C0011
90178C0045
main90178-C0045
90182C0036
main90182-C0036
9044011043
90466C0003
main90466-C0003
90466C0009
main90466-C0009
90466C0024
main90466-C0024
90466C0038
main90466-C0038
9054010022
9163160850
9461310800
41 parts on this diagram · 7 diagrams in section
