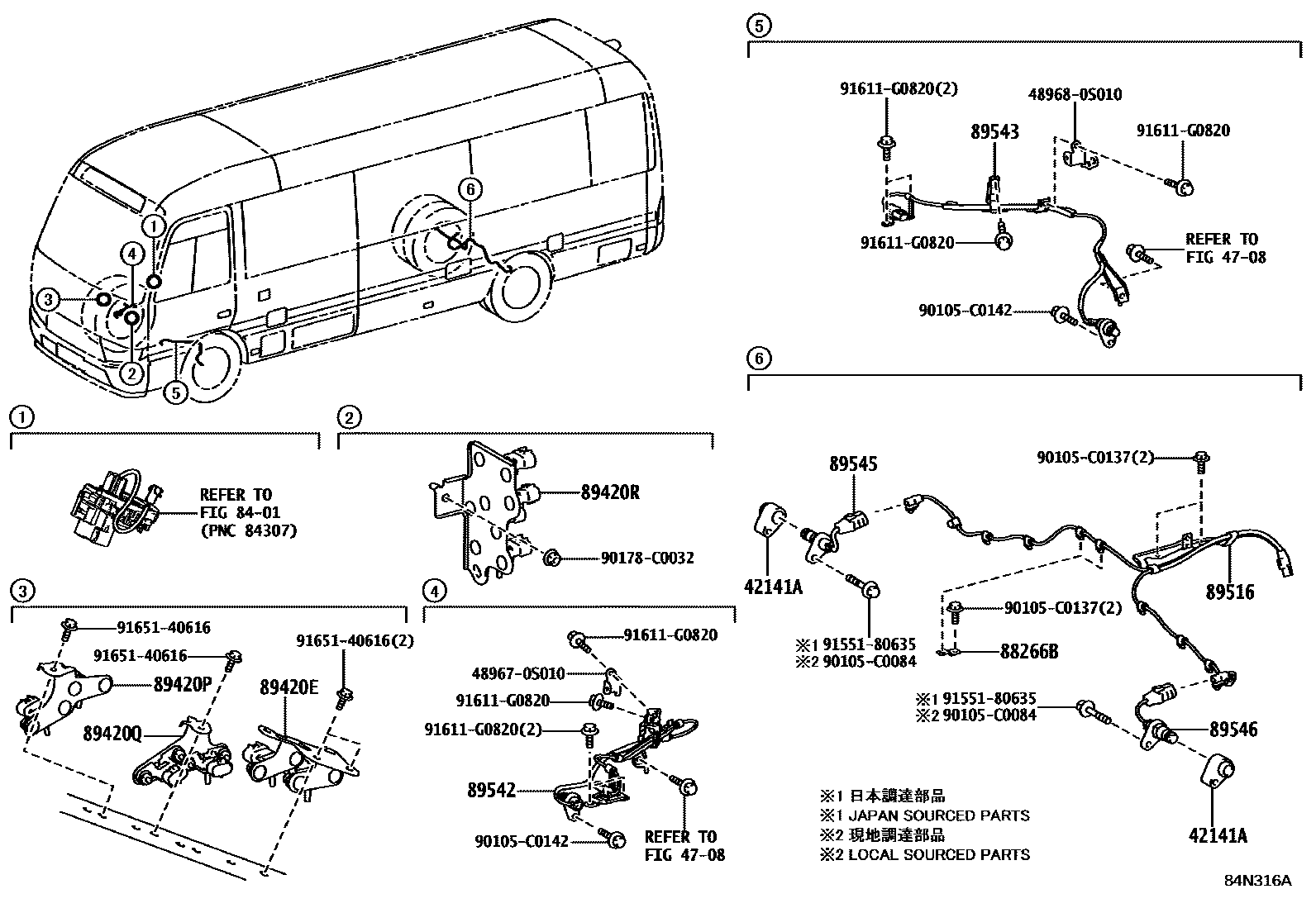

ABS & VSC

42141AATTACHMENT, SKID CONTROL WIRE, NO.1

main42141-0S010iKMB53202108

LH

4708

8401

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-0S010×2iKMB53202108

89420ESENSOR ASSY, VACUUM

main89420-36150iKMB53202108

89420PSENSOR ASSY, VACUUM, NO.2

main89420-36110iKMB53202108

89420QSENSOR ASSY, VACUUM, NO.3

main89420-36120iKMB53202108

89420RSENSOR ASSY, AIR PRESSURE

main89420-36130iKMB53202108

89516WIRE, SKID CONTROL SENSOR

main89516-36130iKMB53202108

89542SENSOR, SPEED, FRONT RH

main89542-36110iKMB53202108

89543SENSOR, SPEED, FRONT LH

main89543-36130iKMB53202108

89545SENSOR, SPEED, REAR RH

main89545-36020iKMB53202108

89546SENSOR, SPEED, REAR LH

main89545-36020iKMB53202108

489670S010END, SENSOR CONNECTING ROD, NO.1

main48967-0S010

489680S010END, SENSOR CONNECTING ROD, NO.2

main48968-0S010

90105C0084

main90105-C0084

90105C0137

main90105-C0137

90105C0142

main90105-C0142

90178C0032

main90178-C0032

9155180635

main91551-80635

91611G0820

main91611-G0820

9165140616

main91651-40616

22 parts on this diagram · 1 diagram in section
