SWITCH & RELAY & COMPUTER

0001 1MOTOR COMPARTMENT 0002 1MOTOR COMPARTMENT RELAY BLOCK0003 1COWL 0004 1INSTRUMENT PANEL 1/3 0005 1INSTRUMENT PANEL 2/3 0006 1INSTRUMENT PANEL 3/3 0007 1STEERING 0008 1DOOR,ROOF & FLOOR 1/2 0009 1DOOR,ROOF & FLOOR 2/2

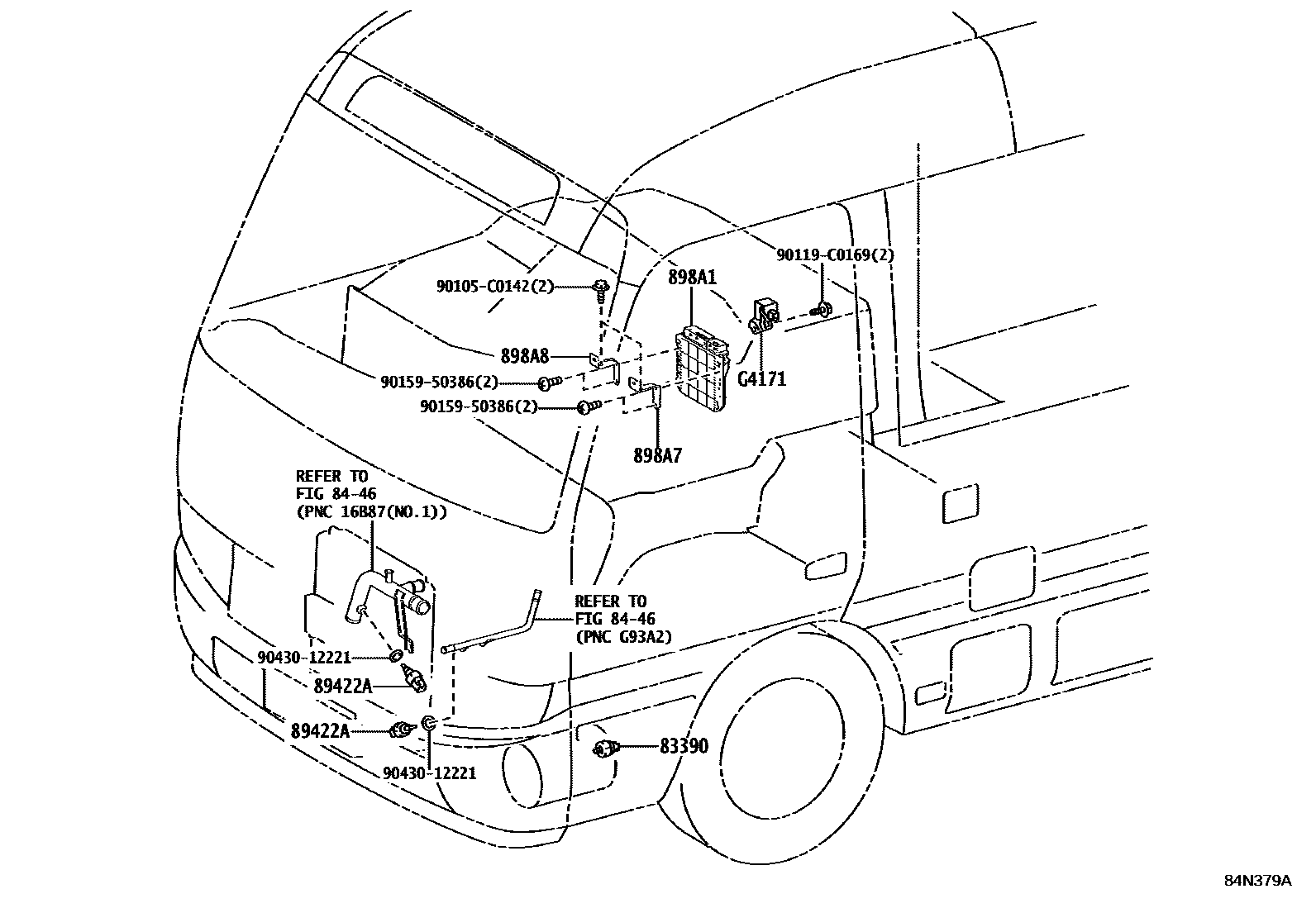

83390SWITCH ASSY, VACUUM WARNING

main83390-36020iKMB53202108

8446

89422ASENSOR, WATER TEMPERATURE

main89422-33030iKMB53202108

898A1COMPUTER, FC CONTROL

main898A1-36011iKMB53202108

898A7BRACKET, FC CONTROL COMPUTER, NO.1

main898A7-36010iKMB53202108

898A8BRACKET, FC CONTROL COMPUTER, NO.2

main898A8-36010iKMB53202108

G4171SENSOR, FC IMPACT

mainG417156010iKMB53202108

90105C0142

main90105-C0142

90119C0169

main90119-C0169

9015950386

main90159-50386

9043012221

main90430-12221

11 parts on this diagram · 9 diagrams in section
