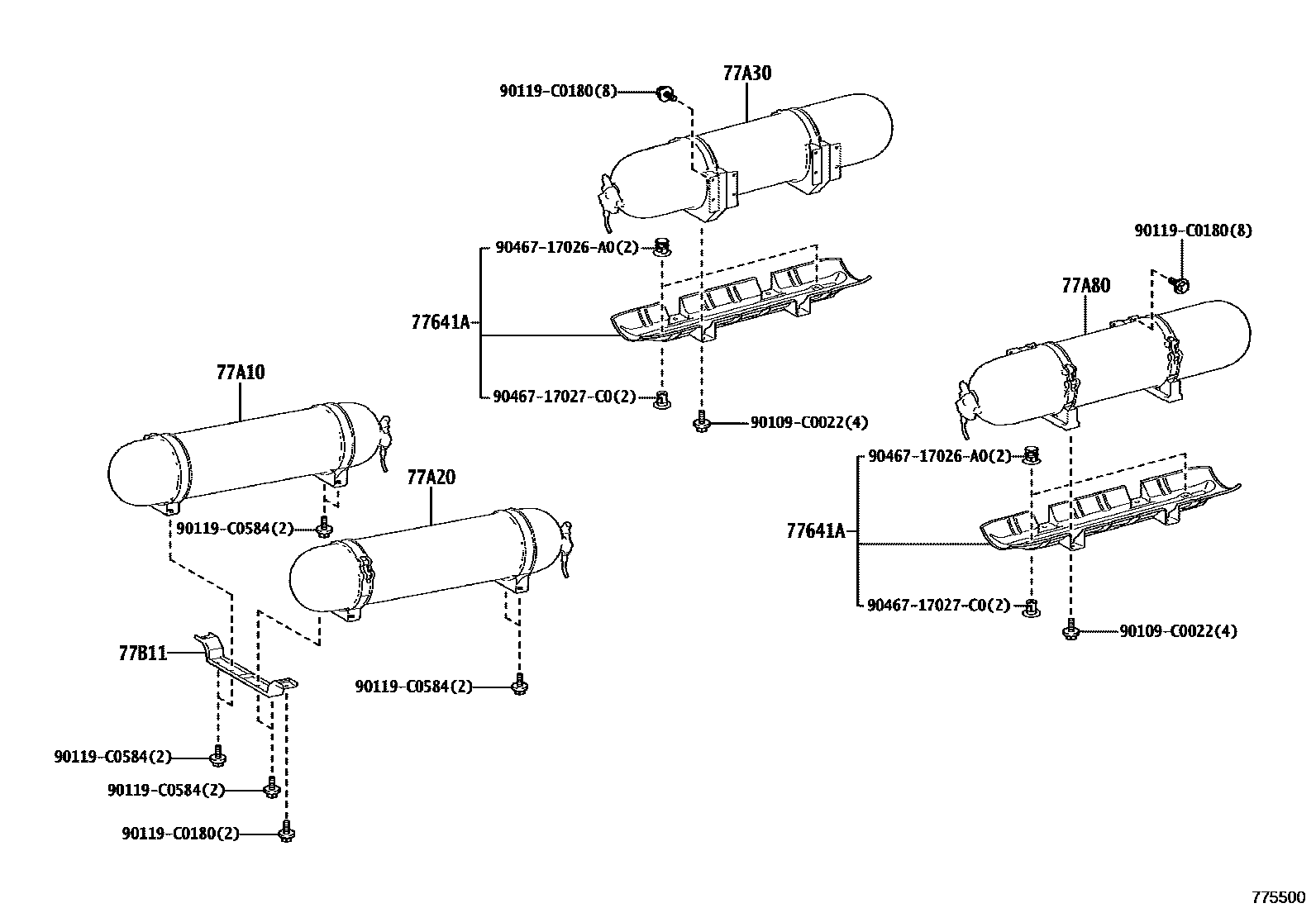

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1HYDROGEN SUPPLY SYSTEM 0004 1FUEL LID OPENER

77641APROTECTOR, FUEL TANK, NO.1

main77641-0S010×2iKMB53202108

77A10TANK ASSY, HYDROGEN, NO.1

main77A10-0S010iKMB53202108

77A20TANK ASSY, HYDROGEN, NO.2

main77A20-0S010iKMB53202108

77A30TANK ASSY, HYDROGEN, NO.3

main77A30-0S010iKMB53202108

77A80TANK ASSY, HYDROGEN, NO.4

main77A80-0S010iKMB53202108

77B11FRAME, HYDROGEN TANK, FRONT

main77B11-0S010iKMB53202108

90109C0022

main90109-C0022

90119C0180

main90119-C0180

90119C0584

main90119-C0584

9046717026A0

main90467-17026A0

9046717027C0

main90467-17027C0

11 parts on this diagram · 4 diagrams in section
