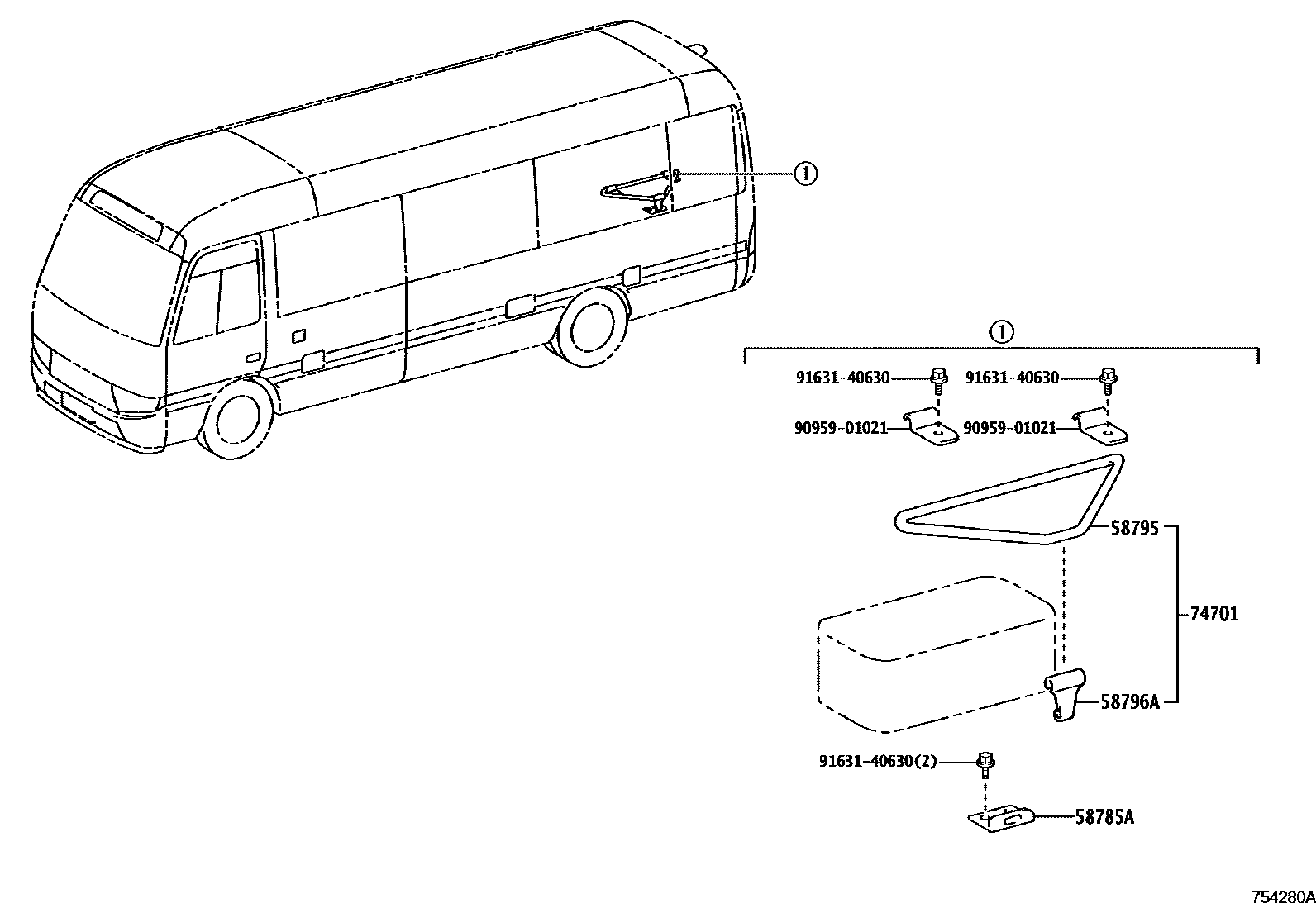

TOOL BOX & LICENSE PLATE BRACKET

0001 1TOOL BAG CLAMP 0002 1TOOL BOX(FOR WHEELCHAIR) 0003 1HAMMER

58785ABRACKET, TOOL BAG BAND

main58785-36010iKMB53..17S202108

58795BAND, JACK CLAMP, NO.1

main58795-20011iKMB53..17S202108

58796AHOOK, JACK CLAMP

main58796-20012iKMB53..17S202108

74701CLAMP SUB-ASSY, TOOL BAG

main58705-95701iKMB53..17S202108

sub58705-27010

9095901021

main90959-01021

9163140630

main91631-40630

6 parts on this diagram · 3 diagrams in section
