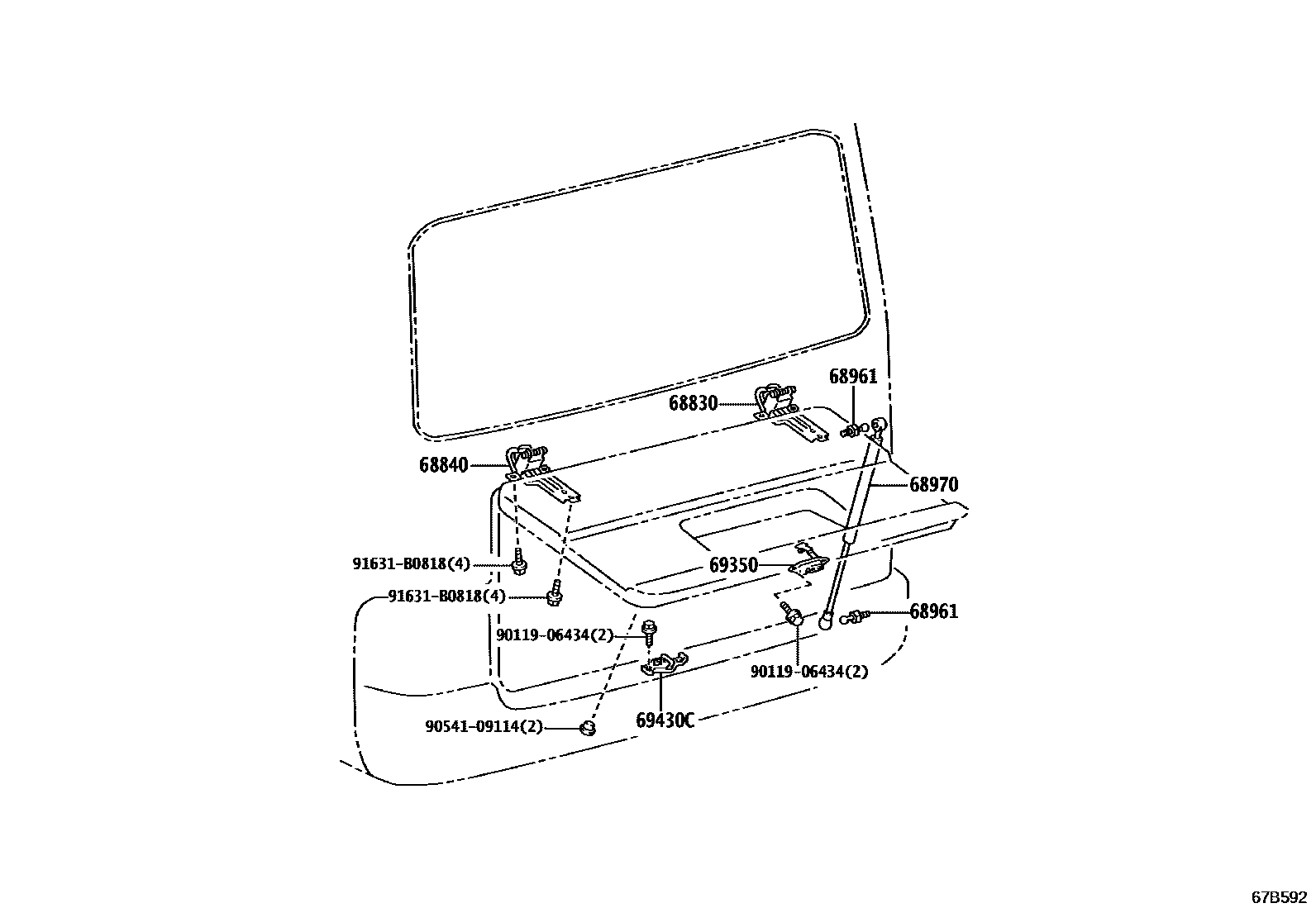

BACK DOOR LOCK & HINGE

0001 1 0002 1DOUBLE SWING BACK DOOR

68830HINGE ASSY, BACK DOOR, RH

main68801-36020iKMB53..17S202108

68840HINGE ASSY, BACK DOOR, LH

main68801-36010iKMB53..03S202108

UPR

main68801-36020iKMB53..17S202108

main68803-36010iKMB53..03S202108

LOWER

68961BOLT, BACK DOOR STAY

main68961-23010iKMB53..17S202108

68970STAY ASSY, BACK DOOR, RH

main68950-39416iKMB53..17S202108

69350LOCK ASSY, BACK DOOR

main69350-36010iKMB53..03S202108

main69350-36030iKMB53..17S202108

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-90B02iKMB53..17S202108

main69430-95702iKMB53..03S202108

9011906434

main90119-06434

9054109114

main90541-09114

91631B0818

main91631-B0818

9 parts on this diagram · 2 diagrams in section
