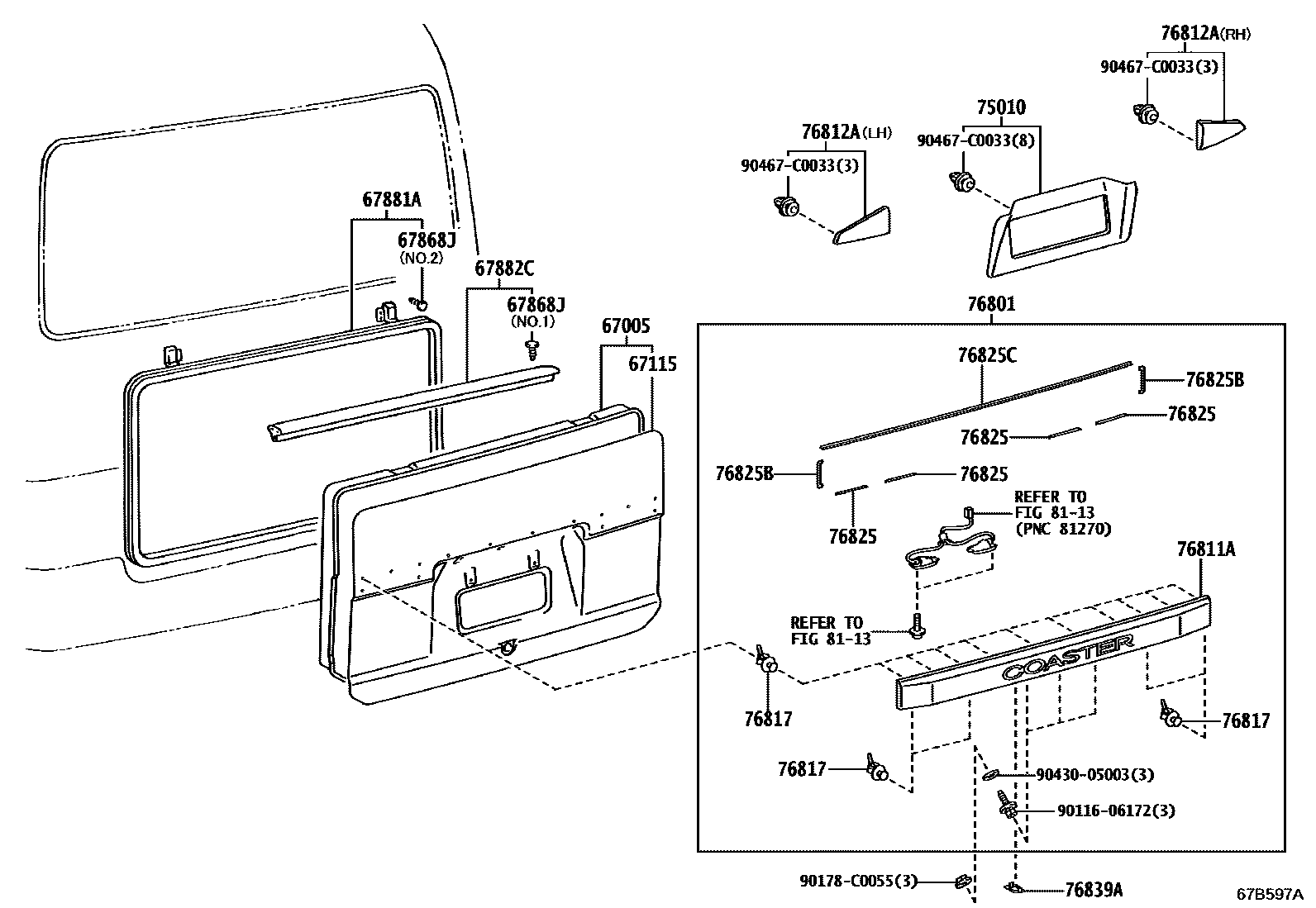

BACK DOOR PANEL & GLASS
67005PANEL SUB-ASSY, BACK DOOR
67115PANEL, BACK DOOR, OUTER
67868JRETAINER, DOOR WEATHERSTRIP
NO.1
NO.2
75010FRAME, REAR LICENSE PLATE
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
NO PAINT REQ.
76811AGARNISH, BACK DOOR, OUTSIDE
NO PAINT REQ.
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
RH
LH
76817CLIP, BACK DOOR OUTSIDE GARNISH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825BPROTECTOR, BACK DOOR OUTSIDE GARNISH
76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH
76839ACOVER, BACK DOOR GARNISH
8113
9011606172
main90116-06172
90178C0055
main90178-C0055
9043005003
main90430-05003
90467C0033
main90467-C0033
19 parts on this diagram · 3 diagrams in section
