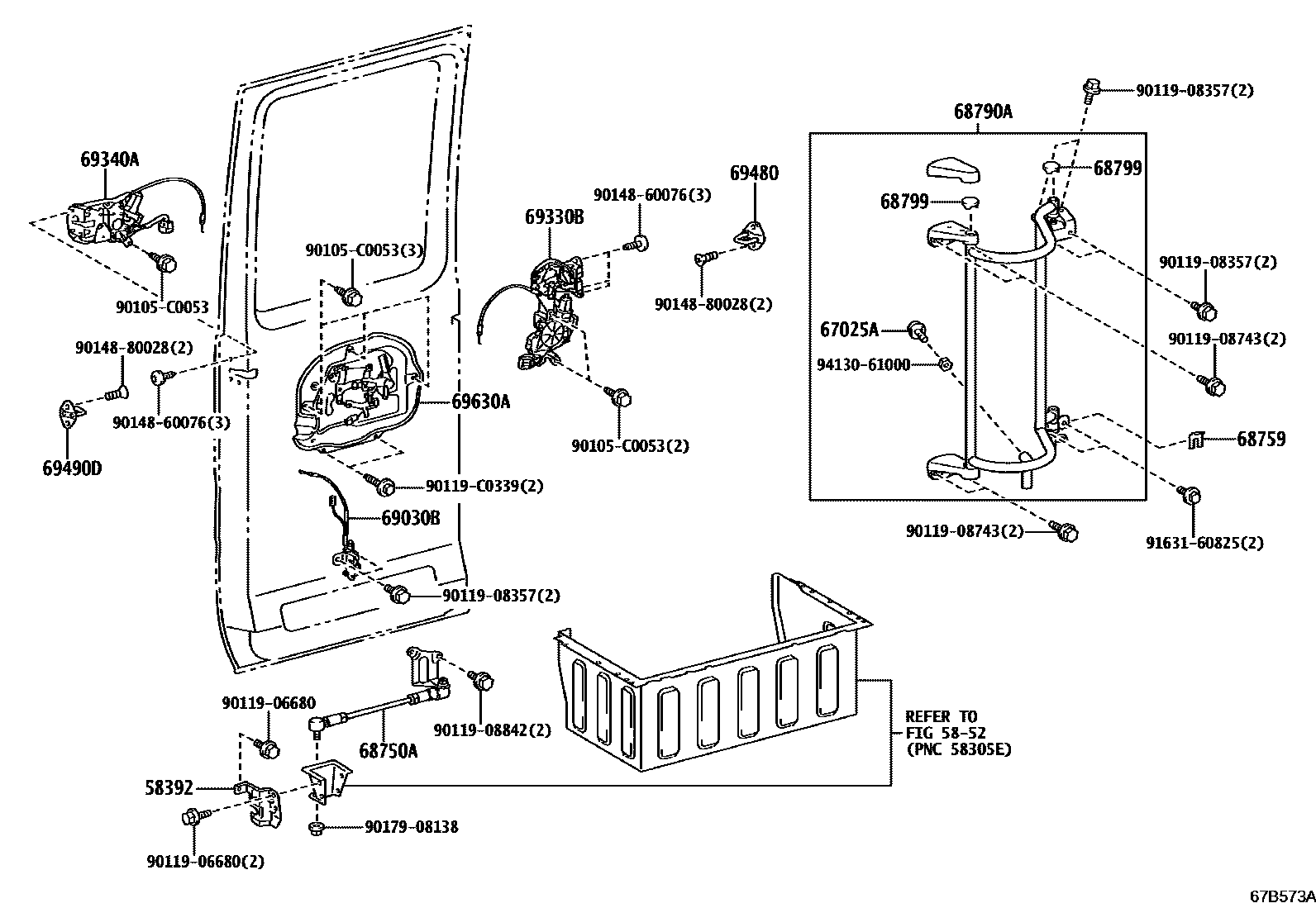

CENTER DOOR LOCK & HINGE
58392MUDGUARD, GLIDE DOOR LINK, FRONT
5852
67025ASTOPPER SUB-ASSY, SLIDE DOOR, FRONT
68750ALINK ASSY, GLIDE DOOR
68759SPACER, GLIDE DOOR ARM
68790AARM ASSY, GLIDE DOOR
68799CAP, GLIDE DOOR ARM
69030BLOCK ASSY, GLIDE DOOR OPEN
69330BLOCK ASSY, GLIDE DOOR, FRONT
69340ALOCK ASSY, GLIDE DOOR, REAR
69480PLATE ASSY, GLIDE DOOR LOCK STRIKER, FRONT
69490DPLATE ASSY, GLIDE DOOR LOCK STRIKER, REAR
69630ACONTROL ASSY, GLIDE DOOR LOCK REMOTE
90105C0053
main90105-C0053
9011906680
main90119-06680
9011908357
main90119-08357
9011908743
main90119-08743
9011908842
main90119-08842
90119C0339
main90119-C0339
9014860076
main90148-60076
9014880028
main90148-80028
9017908138
main90179-08138
9163160825
main91631-60825
9413061000
main94130-61000
24 parts on this diagram · 1 diagram in section
