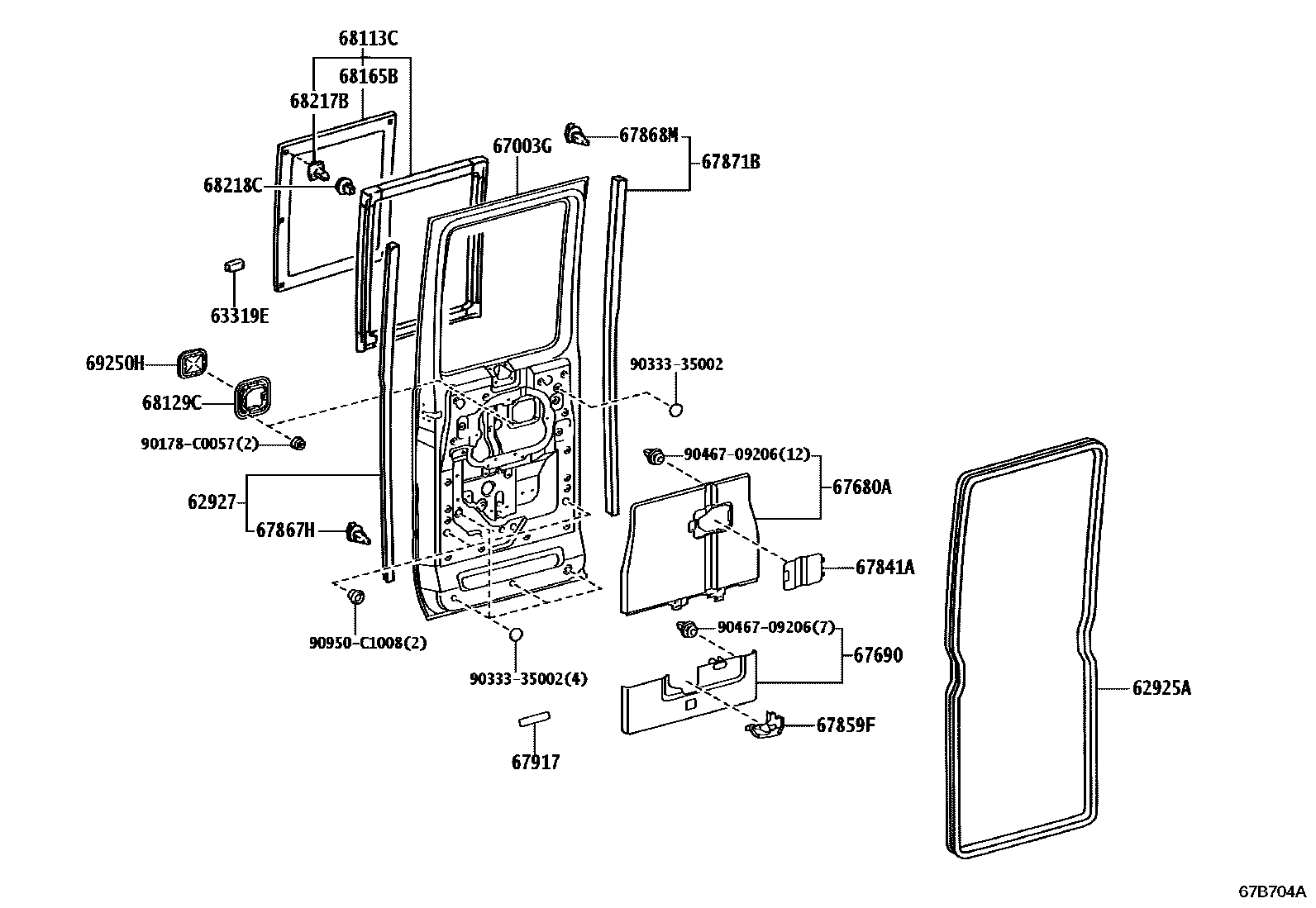

CENTER DOOR PANEL & GLASS
62925AWEATHERSTRIP, GLIDE DOOR SIDE
62927WEATHERSTRIP, GLIDE DOOR OUTER
63319EMOULDING, SLIDE DOOR WINDOW
67003GPANEL SUB-ASSY, SLIDE DOOR
67680ATRIM ASSY, GRIDE DOOR
67690TRIM ASSY, GRIDE DOOR, LOWER
67841ACOVER, GLIDE DOOR SERVICE HOLE
67859FCOVER, GLIDE DOOR LOWER HOLE
67867HRETAINER, DOOR WEATHERSTRIP, RH
67868MCLIP, DOOR WEATHERSTRIP
67871BWEATHERSTRIP, GLIDE DOOR
67917PLATE, GLIDE DOOR SCUFF
68113CGLASS, GLIDE DOOR
68129CWINDOW, GLIDE DOOR EMERGENCY
68165BMOULDING, GLIDE DOOR GLASS
68217BPIN, GLIDE DOOR FIX WINDOW
BLACK
WHITE
ORANGE
68218CBUSH, GLIDE DOOR FIX WINDOW
69250HCOVER ASSY, DOOR OUTSIDE HANDLE
90178C0057
main90178-C0057
9033335002
main90333-35002
9046709206
main90467-09206
90950C1008
main90950-C1008
22 parts on this diagram · 1 diagram in section
