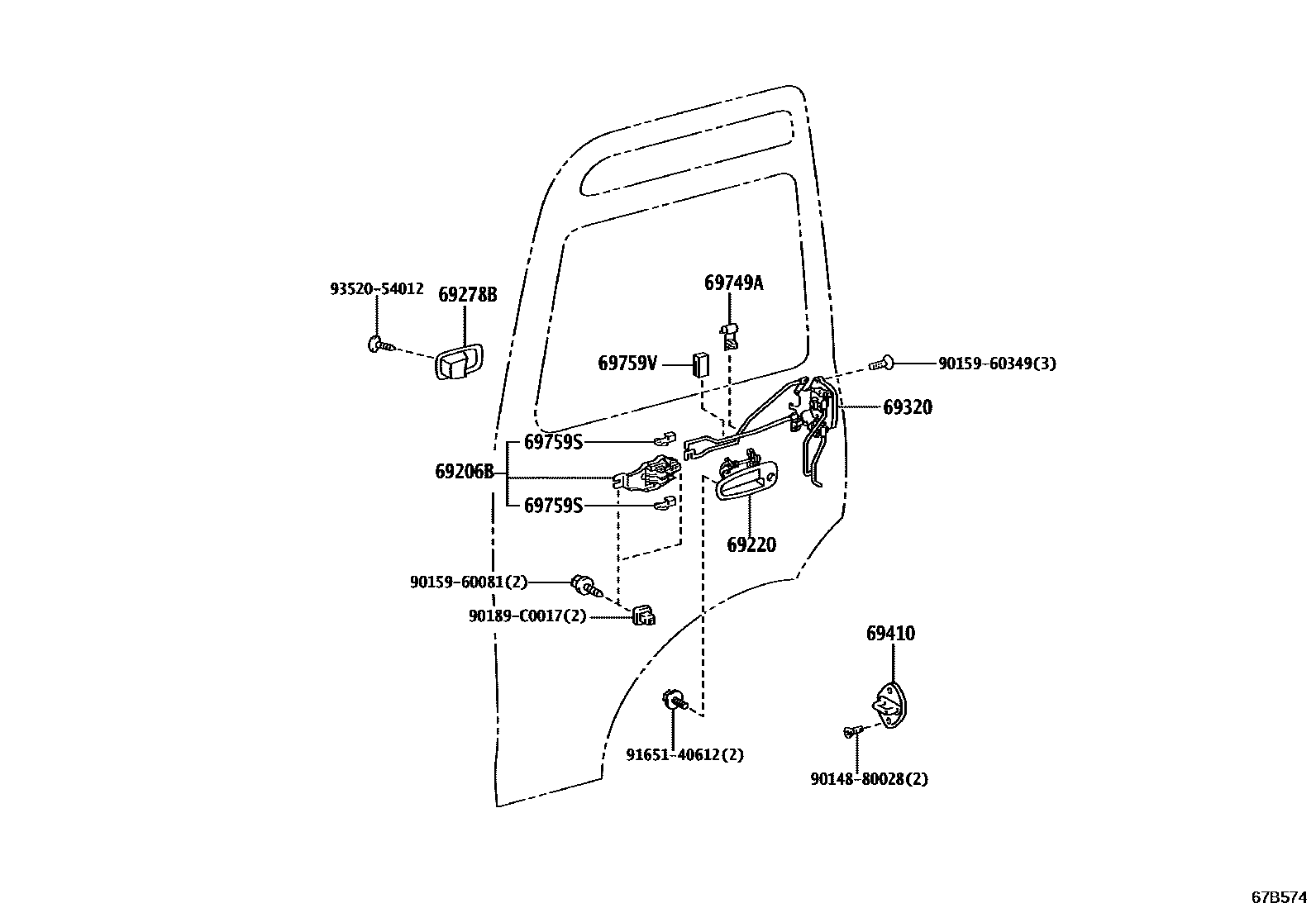

FRONT DOOR LOCK & HANDLE

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-60040-C0iKMB53202108

BLACK

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-36010iKMB53202108

NO PAINT REQ.

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-60010-C0iKMB53202108

BLACK

69320LOCK ASSY, FRONT DOOR, LH

main69320-36020iKMB53202108

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iKMB53202108

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010iKMB53202108

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050×2iKMB53202108

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-30021iKMB53202108

9014880028

main90148-80028

9015960081

main90159-60081

9015960349

main90159-60349

90189C0017

main90189-C0017

9165140612

main91651-40612

9352054012

main93520-54012

14 parts on this diagram · 1 diagram in section
