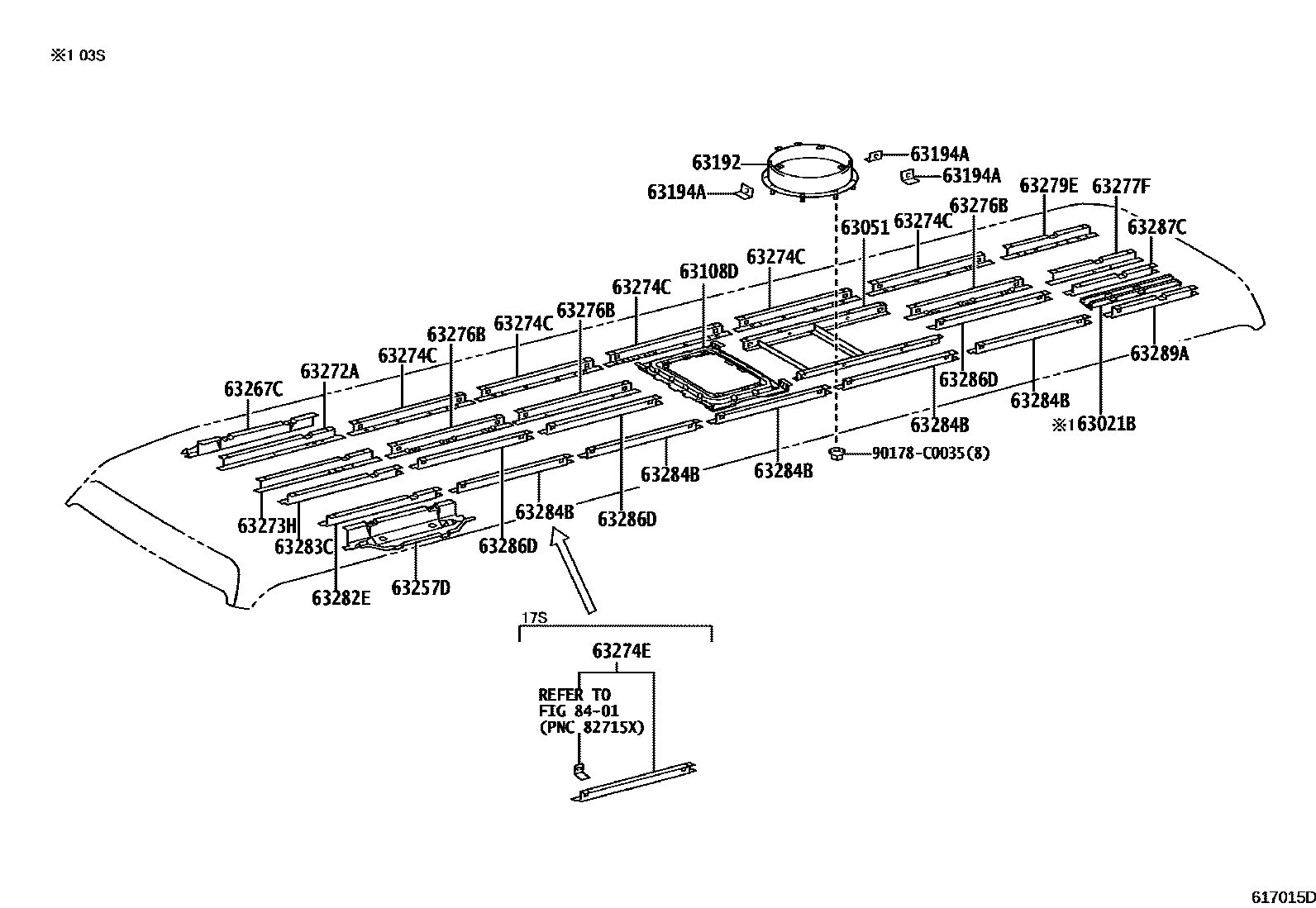

ROOF PANEL & BACK PANEL

0001 1STRENGH 0002 1PANEL/REINFORCE 0003 1DRAIN 0004 1BACK DOOR GLASS

63021BSTRENGTH SUB-ASSY, ROOF PANEL

main63021-0S010iKMB53..03S202108

63051STRENGTH SUB-ASSY, ROOF PANEL, CENTER

main63051-0S020iKMB53202108

63108DSUPPORT SUB-ASSY, ROOF PANEL

main63108-0S030iKMB53202108

63192FLANGE, BOOST VENTILATOR HOLE

main63015-0S010iKMB53202108

63194ABRACKET, BOOST VENTIRATOR COVER, NO.1

main63194-36020iKMB53202108

63257DSTRENGTH, ROOF PANEL, CENTER NO.7 RH

main63257-36020iKMB53202108

63267CSTRENGTH, ROOF PANEL, CENTER NO.7 LH

main63257-0S010iKMB53202108

63272ASTRENGTH, ROOF PANEL, NO.2 RH

main63272-0S010iKMB53202108

63273HSTRENGTH, ROOF PANEL, NO.3

main63273-0S010iKMB53202108

63274CSTRENGTH, ROOF PANEL, NO.4 RH

main63274-0S010iKMB53202108

63274ESTRENGTH, ROOF PANEL, NO.4

main63284-0S020iKMB53..17S202108

63276BSTRENGTH, ROOF PANEL, NO.6 RH

main63276-0S010iKMB53202108

63277FSTRENGTH, ROOF PANEL, NO.7 RH

main63277-0S020iKMB53202108

63279ESTRENGTH, ROOF PANEL, NO.9 RH

main63279-0S010iKMB53202108

63282ESTRENGTH, ROOF PANEL, NO.2 LH

main63282-0S010iKMB53202108

63283CSTRENGTH, ROOF PANEL, NO.3 LH

main63283-0S010iKMB53202108

63284BSTRENGTH, ROOF PANEL, NO.4 LH

main63284-0S010iKMB53..17S202108

63286DSTRENGTH, ROOF PANEL, NO.6 LH

main63286-0S010iKMB53202108

63287CSTRENGTH, ROOF PANEL, NO.7 LH

main63287-0S020iKMB53202108

63289ASTRENGTH, ROOF PANEL, NO.9 LH

main63289-0S020iKMB53202108

8401

90178C0035

main90178-C0035

22 parts on this diagram · 4 diagrams in section
