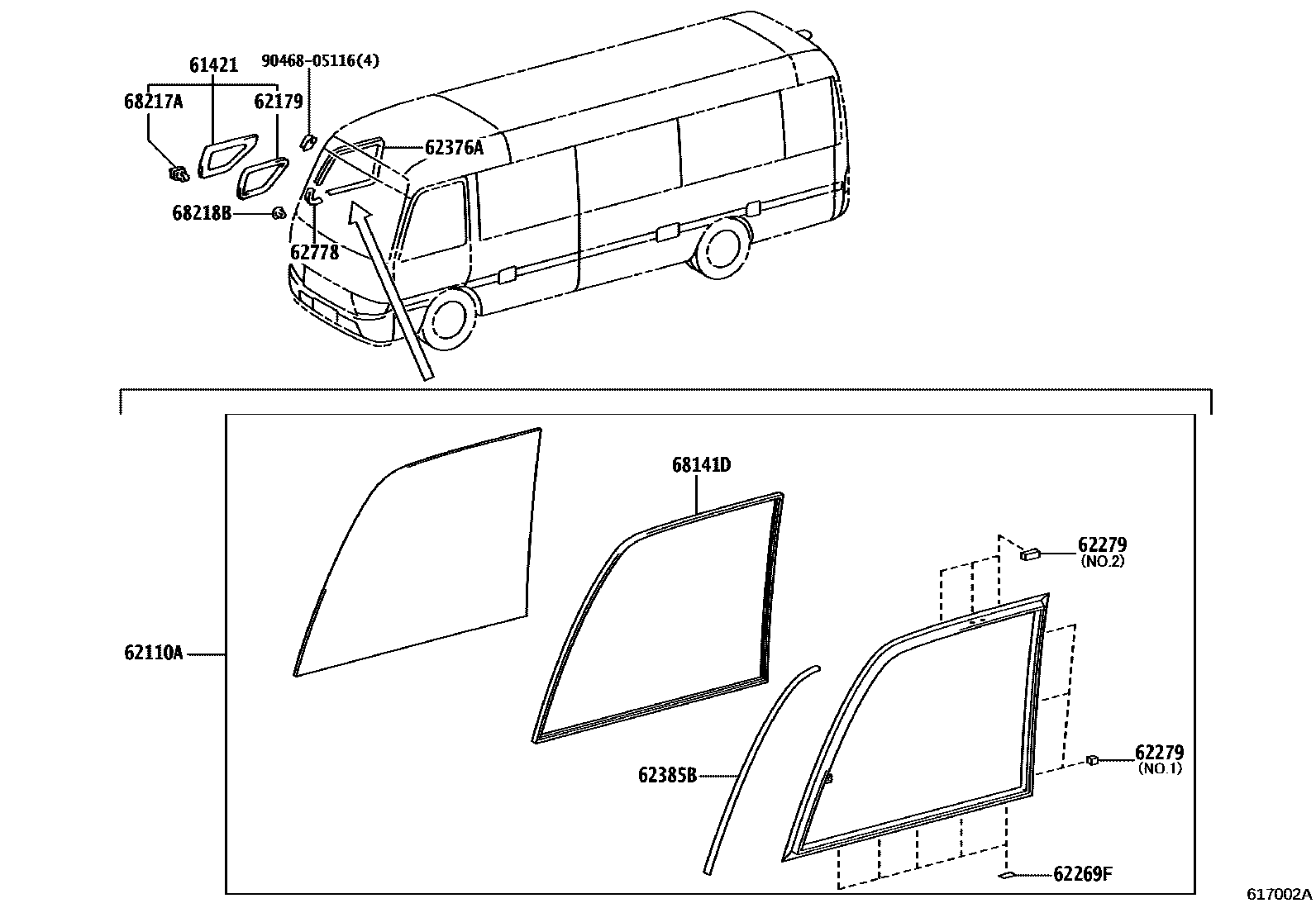

SIDE WINDOW

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

61421GLASS, SIDE LOWER WINDOW

main62109-0S010iKMB53202108

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-0S050iKMB53202108

62179DAM, SIDE LOWER WINDOW

main62179-36010iKMB53202108

62269FFILM, SIDE WINDOW FRAME

main62269-90K01iKMB53202108

62279SPACER, SIDE WINDOW FRAME, UPPER

main62279-0S010iKMB53202108

NO.1

main62279-0S020iKMB53202108

NO.2

62376ACLIP, SIDE WINDOW, NO.2

main62376-0S040iKMB53202108

62385BSEAL, SIDE WINDOW, NO.5

main62385-0S020iKMB53202108

62778CAP, SIDE WINDOW FRONT SASH

main62778-0S030iKMB53202108

68141DRUN, SIDE FRONT WINDOW, RH

main68141-0S050iKMB53202108

68217APIN, SIDE WINDOW , NO.1

main68217-36010iKMB53202108

BLACK

main68217-36020iKMB53202108

WHITE

main68217-36030iKMB53202108

ORANGE

68218BBUSH, SIDE WINDOW

main68218-36010iKMB53202108

9046805116

main90468-05116

12 parts on this diagram · 8 diagrams in section
