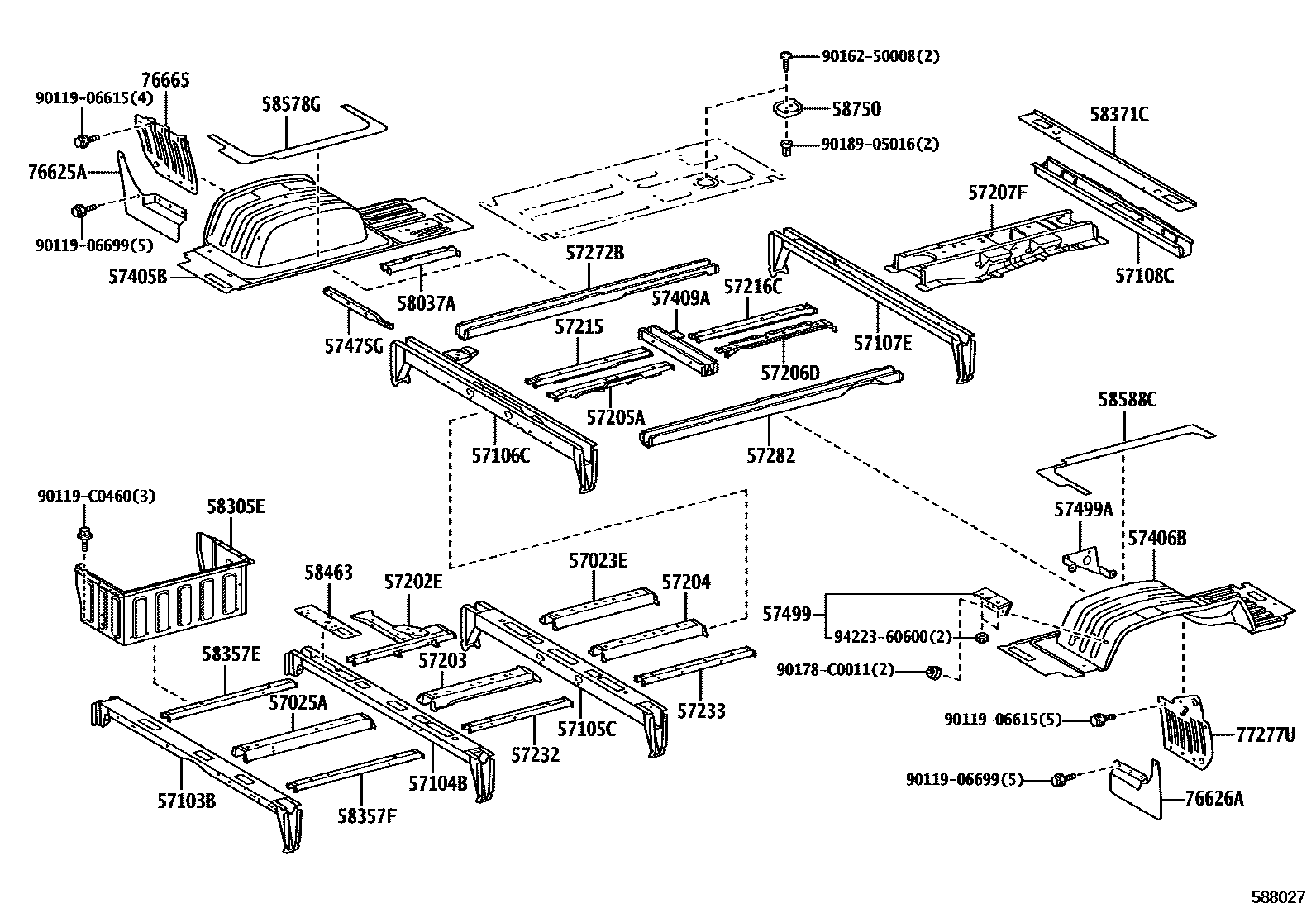

REAR FLOOR PANEL & REAR FLOOR MEMBER
57023ESTRENGTH SUB-ASSY, ANCHOR SIDE, NO.3
57025ASTRENGTH, SUB-ASSY, CROSSMEMBER FLOOR, NO.2 SUB
57103BCROSSMEMBER SUB-ASSY, FLOOR, NO.3
57104BCROSSMEMBER SUB-ASSY, FLOOR, NO.4
57105CCROSSMEMBER SUB-ASSY, FLOOR, NO.5
57106CCROSSMEMBER SUB-ASSY, FLOOR, NO.6
57107ECROSSMEMBER SUB-ASSY, FLOOR, NO.7
57108CCROSSMEMBER SUB-ASSY, FLOOR, NO.8
57202ESTRENGTH SUB-ASSY, ANCHOR, NO.2
57204STRENGTH SUB-ASSY, ANCHOR, NO.3 LH
57205ASTRENGTH SUB-ASSY, ANCHOR, NO.5
57206DSTRENGTH SUB-ASSY, ANCHOR, NO.6
57207FSTRENGTH SUB-ASSY, ANCHOR, NO.7
57215STRENGTH, ANCHOR, NO.5
57216CSTRENGTH, ANCHOR, NO.6
57232STRENGTH, ANCHOR SIDE, NO.2
57233STRENGTH, ANCHOR SIDE, NO.3
57272BSTRENGTH, REAR FLOOR HOUSING, SIDE, RH
57282STRENGTH, REAR FLOOR HOUSING, SIDE, LH
57405BHOUSING SUB-ASSY, REAR FLOOR, RH
57406BHOUSING SUB-ASSY, REAR FLOOR, LH
57409ASTRENGTH SUB-ASSY, REAR FLOOR HOUSING
57475GSTRENGTH, REAR FLOOR HOUSING, RH
57499BRACKET, REAR FLOOR HOUSING, NO.1
57499ABRACKET, REAR FLOOR HOUSING, NO.2
58037ARETAINER SUB-ASSY, REAR FLOOR SEAT LOCK
58305EPANEL SUB-ASSY, CENTER DOOR STEP
58357ESTRENGTH, CENTER DOOR STEP, UPPER NO.1
58357FSTRENGTH, CENTER DOOR STEP, UPPER NO.2
58371CPANEL, BODY LOWER BACK, UPPER
58463PANEL, BATTERY SERVICE OPENING, INNER FRONT
58578GPAD, REAR WHEEL HOUSE, RH
58588CPAD, REAR WHEEL HOUSE, LH
58750COVER ASSY, FUEL TANK INSPECTION HOLE
BLACK
76625AMUDGUARD, REAR BODY, RH
76626AMUDGUARD, REAR BODY, LH
76665BRACE, REAR MUDGUARD
77277UPROTECTOR, FUEL TANK FILLER PIPE
9011906615
9011906699
90119C0460
main90119-C0460
9016250008
90178C0011
main90178-C0011
9018905016
9422360600
46 parts on this diagram · 4 diagrams in section
