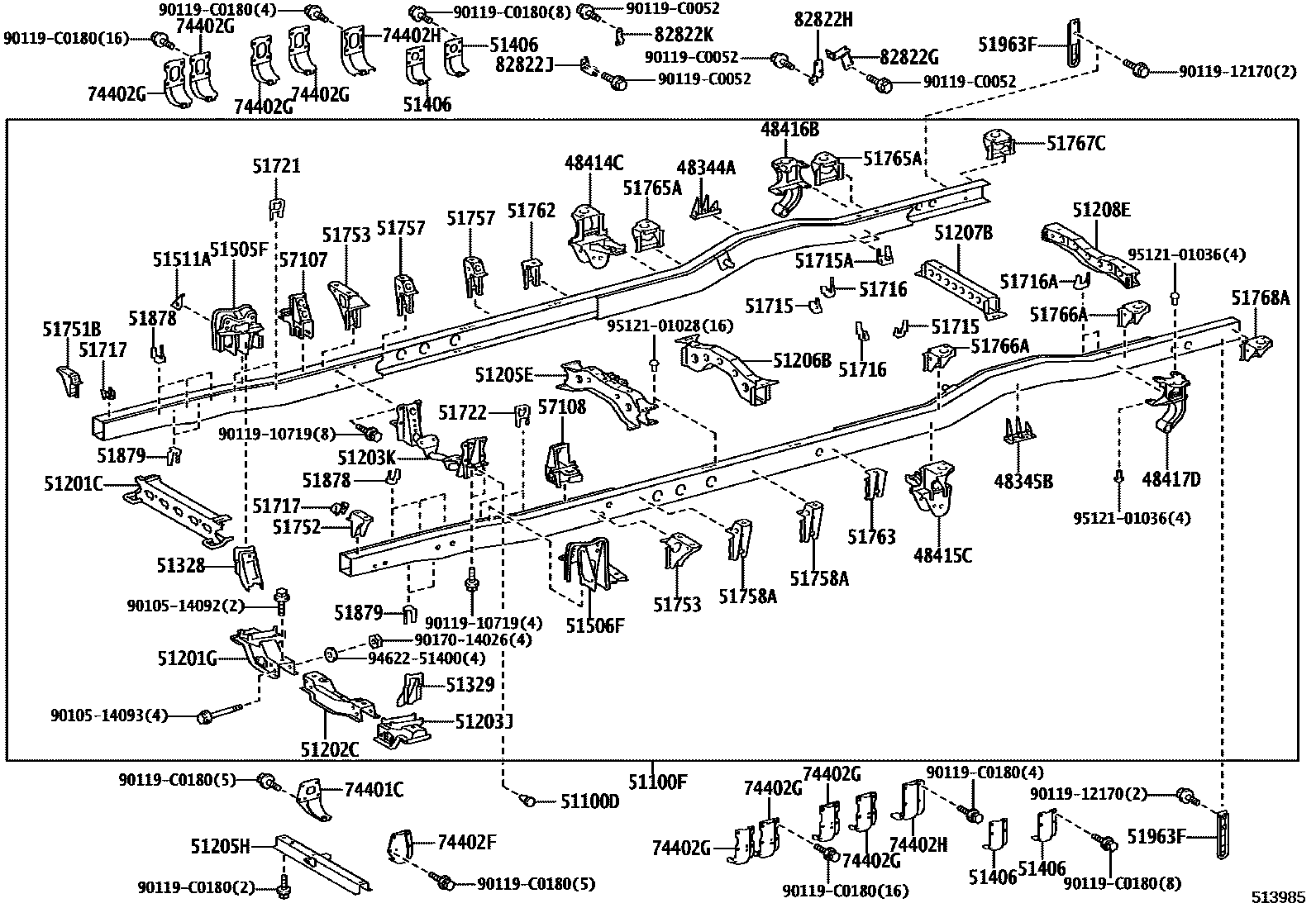

FRAME
48344ASTOPPER, BUMPER, REAR RH
48345BSTOPPER, BUMPER, REAR LH
48414CBRACKET, SPRING, NO.3 RH
48415CBRACKET, SPRING, NO.3 LH
48416BBRACKET, SPRING, NO.4 RH
48417DBRACKET, SPRING, NO.4 LH
51100DPLUG, HOLE(FOR FRAME)
51100FFRAME SUB-ASSY
51201CCROSSMEMBER SUB-ASSY, FRAME, NO.1
51201GCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH
51202CCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER
51203JCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LH
51203KCROSSMEMBER SUB-ASSY, FRAME, NO.3
51205ECROSSMEMBER SUB-ASSY, FRAME, NO.4
51205HCROSSMEMBER SUB-ASSY, FRAME, CENTER
51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6
51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7
51208ECROSSMEMBER SUB-ASSY, FRAME, NO.8
51328SUPPORT, FRONT SUSPENSION MEMBER, RH
51329SUPPORT, FRONT SUSPENSION MEMBER, LH
51406BRACKET SUB-ASSY, RADIATOR SUPPORT
51505FSUPPORT SUB-ASSY, UPPER CONTROL ARM, RH
51506FSUPPORT SUB-ASSY, UPPER CONTROL ARM, LH
51511ASEAT, FRONT SPRING SUPPORT
51715BRACKET, BODY SUPPORT, REAR RH
51715ABRACKET, BODY SUPPORT, REAR RH
51716BRACKET, BODY SUPPORT, REAR LH
51716ABRACKET, BODY SUPPORT, REAR LH
51717PLATE, BODY SUPPORT BRACKET
51721BRACKET, CAB FRONT MOUNTING, RH
51722BRACKET, CAB FRONT MOUNTING, LH
51751BBRACKET, BODY SUPPORT, NO.1 RH
51752BRACKET, BODY SUPPORT, NO.1 LH
51753BRACKET, BODY SUPPORT, NO.2
51757BRACKET, BODY SUPPORT, NO.4 RH
51758ABRACKET, BODY SUPPORT, NO.4 LH
51762BRACKET, BODY SUPPORT, NO.5 RH
51763BRACKET, BODY SUPPORT, NO.5 LH
51765ABRACKET, FRAME BODY MOUNTING, NO.7 RH
51766ABRACKET, FRAME BODY MOUNTING, NO.7 LH
51767CBRACKET, FRAME BODY MOUNTING, NO.8 RH
51768ABRACKET, FRAME BODY MOUNTING, NO.8 LH
51878BRACKET, FRAME FUEL TANK MOUNTING, NO.1 CENTER
51879BRACKET, FRAME FUEL TANK MOUNTING, NO.2 CENTER
51963FHOOK, TRANSPORT
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
74401CBRACKET SUB-ASSY, BATTERY, RH
74402FBRACKET SUB-ASSY, BATTERY, LH
74402GBRACKET SUB-ASSY, BATTERY, REAR NO.1
74402HBRACKET SUB-ASSY, BATTERY, REAR NO.2
82822GBRACKET,CONNECTOR BLOCK NO.1
82822HBRACKET,CONNECTOR BLOCK NO.2
82822JBRACKET,CONNECTOR BLOCK NO.3
82822KBRACKET,CONNECTOR BLOCK NO.4
9010514092
main90105-14092
9010514093
main90105-14093
9011910719
main90119-10719
9011912170
main90119-12170
90119C0052
main90119-C0052
90119C0180
main90119-C0180
9017014026
main90170-14026
9462251400
main94622-51400
9512101028
main95121-01028
9512101036
main95121-01036
65 parts on this diagram · 2 diagrams in section
