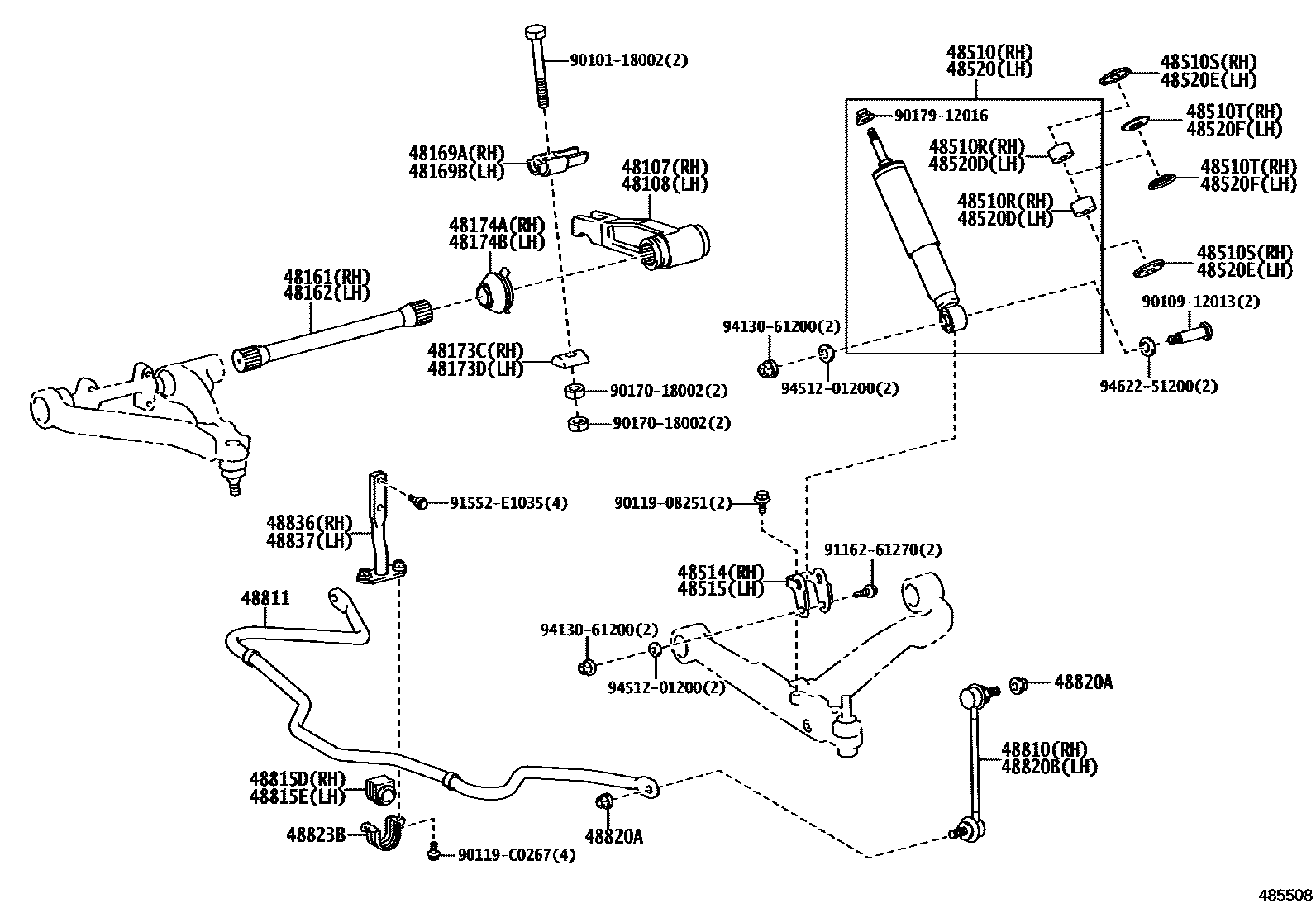

FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
48108ARM SUB-ASSY, ANCHOR, LH
48161SPRING, TORSION BAR, RH
48162SPRING, TORSION BAR, LH
48169ASWIVEL, ANCHOR ARM, RH
48169BSWIVEL, ANCHOR ARM, LH
48173CSEAT, ANCHOR ARM ADJUSTER, RH
48173DSEAT, ANCHOR ARM ADJUSTER, LH
48174ACOVER, TORSION BAR DUST, RH
48174BCOVER, TORSION BAR DUST, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48511-0S011
48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH
48510SRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH
48510TRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH
48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48511-0S011
48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH
48520ERETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH
48520FRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48823BCOVER, FRONT STABILIZER BRACKET
48836BRACKET, FRONT STABILIZER END, RH
48837BRACKET, FRONT STABILIZER END, LH
9010118002
main90101-18002
9010912013
main90109-12013
9011908251
main90119-08251
90119C0267
main90119-C0267
9017018002
main90170-18002
9017912016
main90179-12016
9116261270
main91162-61270
91552E1035
main91552-E1035
9413061200
main94130-61200
9451201200
main94512-01200
9462251200
main94622-51200
40 parts on this diagram · 1 diagram in section
