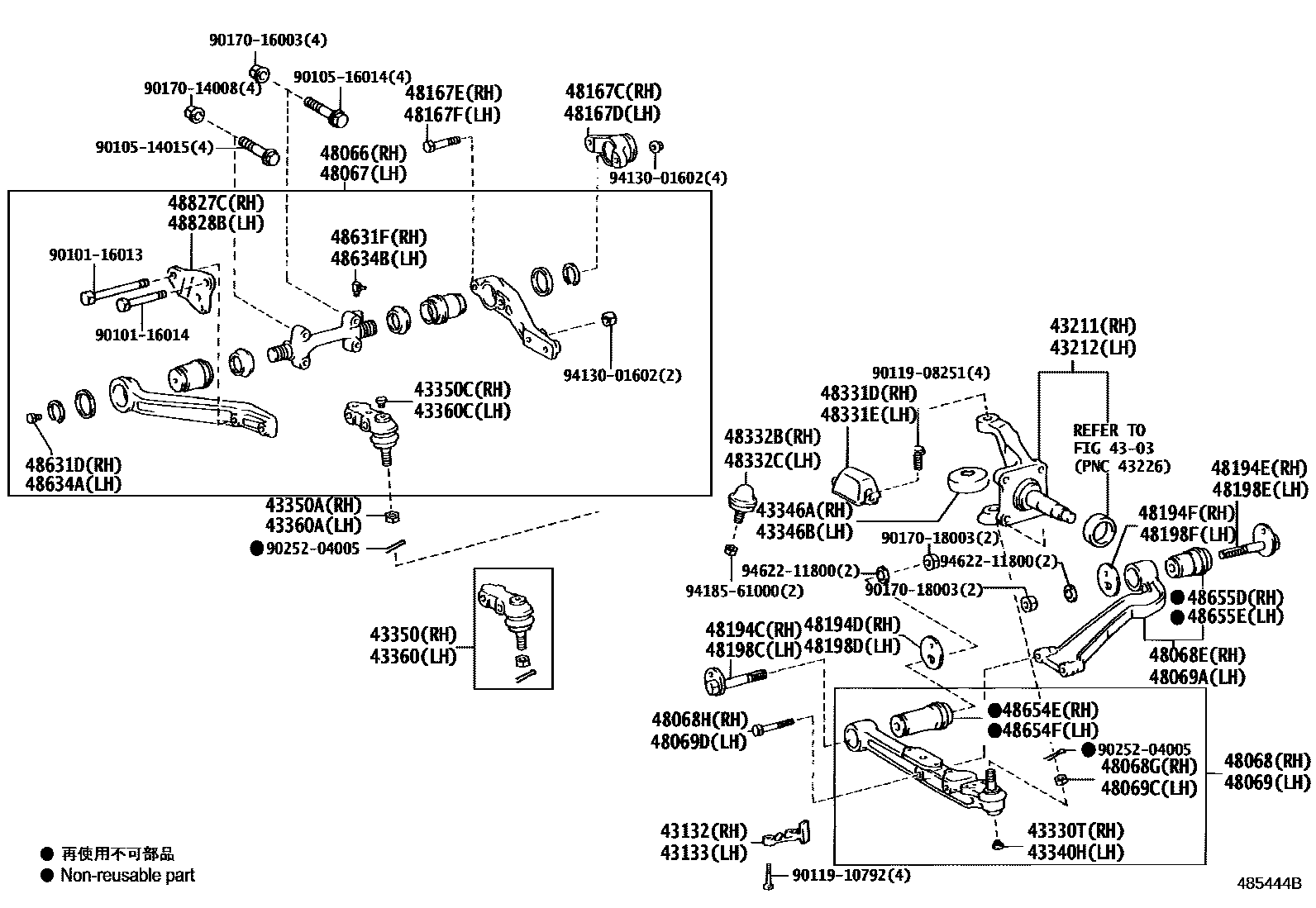

FRONT AXLE ARM & STEERING KNUCKLE
4303
43132STOPPER, STEERING KNUCKLE, RH
43133STOPPER, STEERING KNUCKLE, LH
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43330TPLUG (FOR FRONT LOWER BALL JOINT RH)
43340HPLUG (FOR FRONT LOWER BALL JOINT LH)
43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH
43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH
43350JOINT ASSY, FRONT UPPER BALL, RH
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
43350CPLUG (FOR FRONT UPPER BALL JOINT RH)
43360JOINT ASSY, FRONT UPPER BALL, LH
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
43360CPLUG (FOR FRONT UPPER BALL JOINT LH)
48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068EARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH
48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069AARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH
48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48167CARM, FRONT SUSPENSION TORQUE, RH
48167DARM, FRONT SUSPENSION TORQUE, LH
48167EBOLT(FOR FRONT SUSPENSION TORQUE ARM RH)
48167FBOLT(FOR FRONT SUSPENSION TORQUE ARM LH)
48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH
48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH
48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH
48194FCAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 RH
48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH
48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH
48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH
48198FCAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 LH
48331DBUMPER, FRONT SPRING, NO.1 RH
48331EBUMPER, FRONT SPRING, NO.1 LH
48332BBUMPER, FRONT SPRING, NO.2 RH
48332CBUMPER, FRONT SPRING, NO.2 LH
48631DPLUG(FOR FRONT SUSPENSION UPPER ARM SHAFT RH)
48631FFITTING, GREASE(FOR FRONT SUSPENSION UPPER ARM SHAFT RH)
48634APLUG(FOR FRONT SUSPENSION UPPER ARM SHAFT LH)
48634BFITTING, GREASE(FOR FRONT SUSPENSION UPPER ARM SHAFT LH)
48654EBUSH, FRONT LOWER ARM, NO.1 RH
48654FBUSH, FRONT LOWER ARM, NO.1 LH
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
48827CBRACKET, STABILIZER, NO.2 RH
48828BBRACKET, STABILIZER, NO.2 LH
9010116013
main90101-16013
9010116014
main90101-16014
9010514015
main90105-14015
9010516014
main90105-16014
9011908251
main90119-08251
9011910792
main90119-10792
9017014008
main90170-14008
9017016003
main90170-16003
9017018003
main90170-18003
9025204005
main90252-04005
9413001602
main94130-01602
9418561000
main94185-61000
9462211800
main94622-11800
64 parts on this diagram · 1 diagram in section
