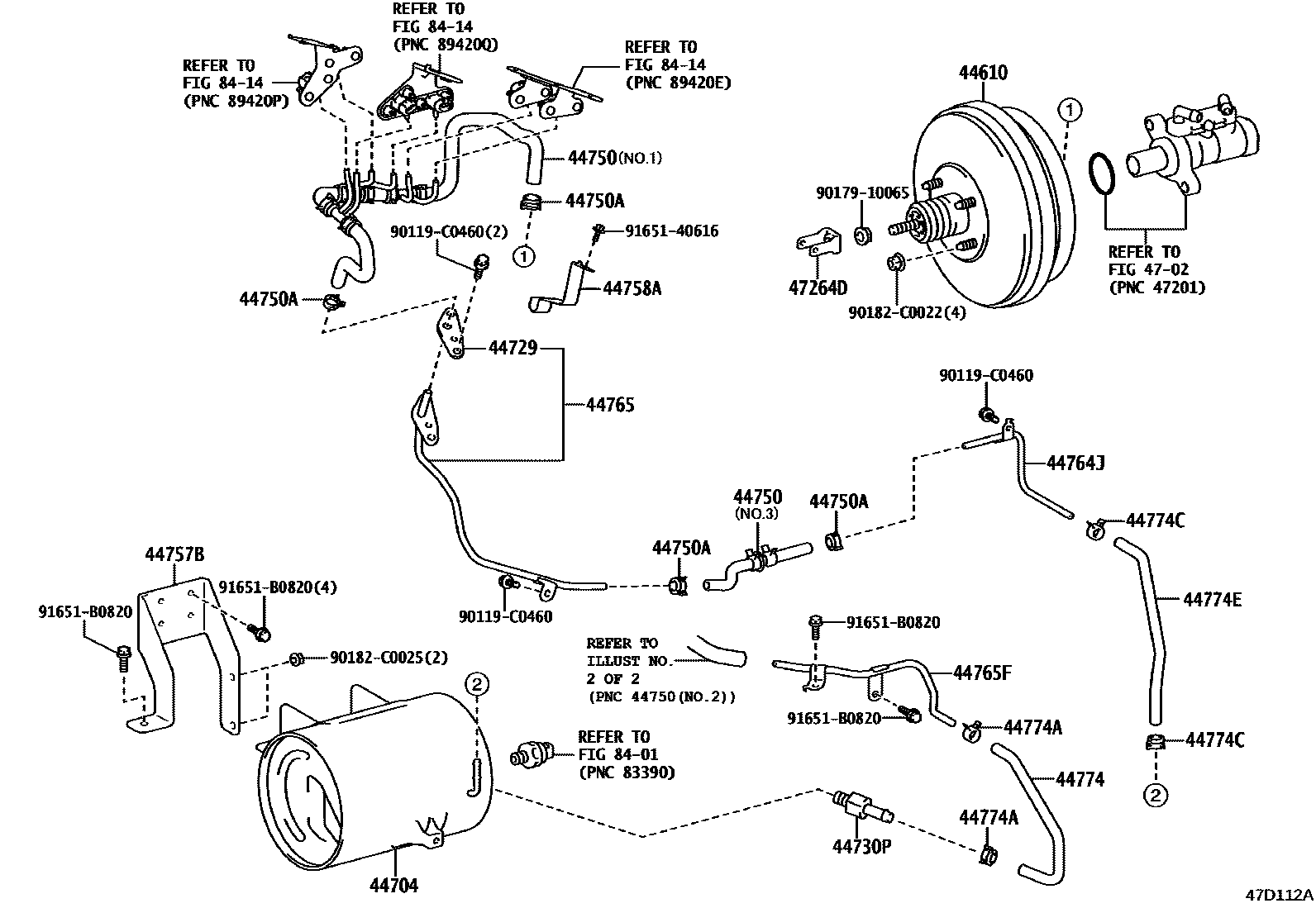

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-36680iKMB53202108

44704RESERVOIR SUB-ASSY, VACUUM

main44704-36270iKMB53202108

44729GASKET, VACUUM TUBE

main44729-36020iKMB53202108

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60050iKMB53202108

44750HOSE ASSY, VACUUM

main44750-0S040iKMB53202108

NO.1

main44750-0S050iKMB53202108

NO.2

main44750-0S060iKMB53202108

NO.3

44750ACLIP(FOR VACUUM HOSE ASSY)

main96133-41500iKMB53202108

44757BBRACKET, VACUUM TANK CLAMP, NO.2

main44757-0S050iKMB53202108

44758ABRACKET, AIR RESERVOIR TO AIR BOOSTER

main44757-0S030iKMB53202108

44764JTUBE, CONNECTOR TO VACUUM RESERVOIR

main44765-0S010iKMB53202108

44765TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2

main44765-36310iKMB53202108

44765FTUBE, CONNECTOR TO CHECK VALVE

main44765-0S020iKMB53202108

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0S040iKMB53202108

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iKMB53202108

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iKMB53202108

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-0S050iKMB53202108

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iKMB53202108

8401

8414

90119C0460

main90119-C0460

9017910065

main90179-10065

90182C0022

main90182-C0022

90182C0025

main90182-C0025

9165140616

main91651-40616

91651B0820

main91651-B0820

25 parts on this diagram · 2 diagrams in section
