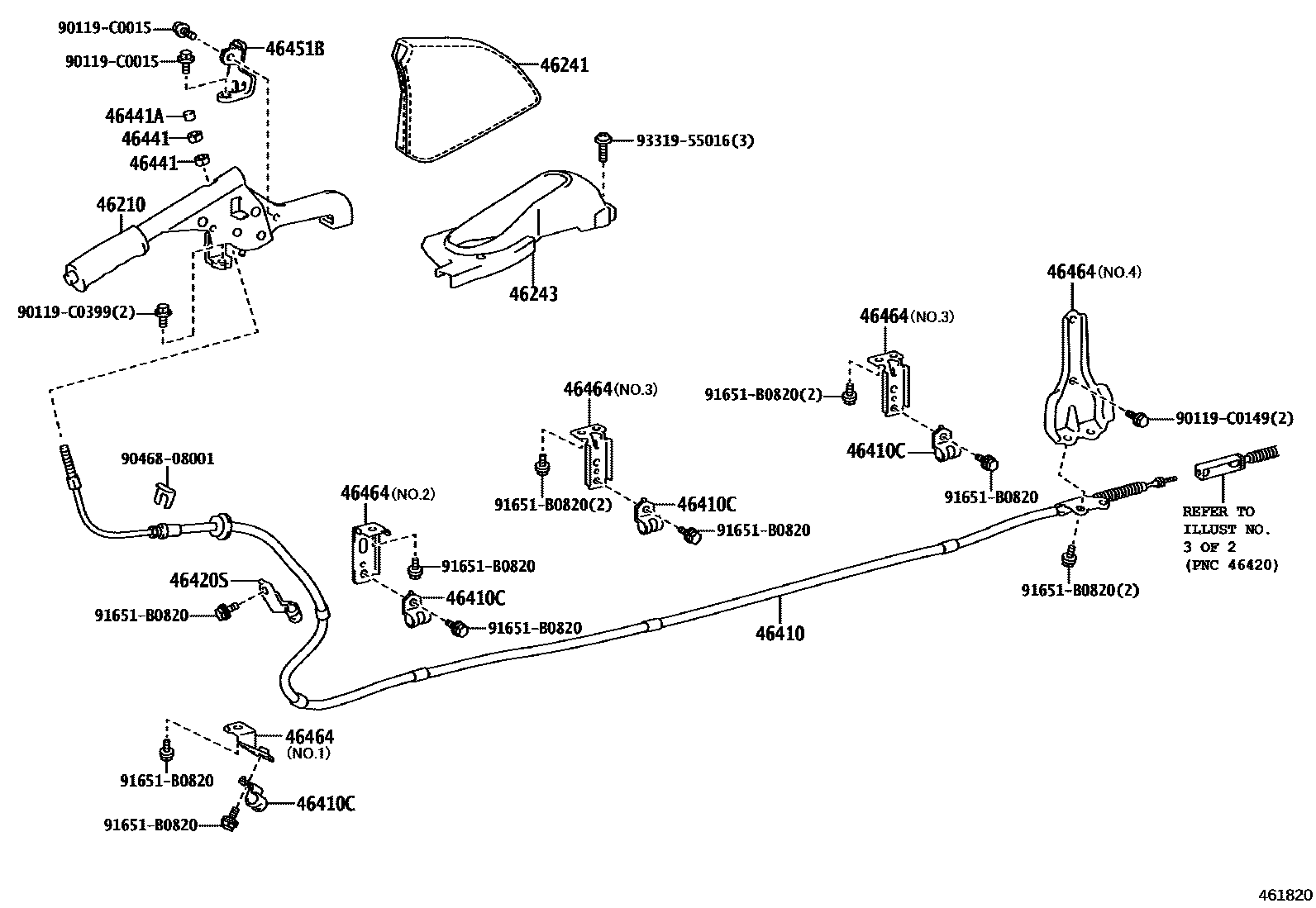

PARKING BRAKE & CABLE
46210LEVER ASSY, PARKING BRAKE
GREIGE,TRIM4#
46241BOOT, PARKING BRAKE LEVER
BLACK,TRIM4#
46243COVER, PARKING BRAKE LEVER
GREIGE,TRIM4#
46410CABLE ASSY, PARKING BRAKE, NO.1
46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)
46420CABLE ASSY, PARKING BRAKE, NO.2
46420SCLAMP, PARKING BRAKE NO.1 CABLE
46441NUT, WIRE ADJUSTING, NO.1
46441ANUT, WIRE ADJUSTING, NO.2
46451BBRACKET, PARKING BRAKE CABLE SUPPORT
46464PLATE, CABLE CLAMP SUPPORT
NO.1
NO.3
NO.2
NO.4
NO.5
NO.6
NO.8
NO.7
90119C0015
main90119-C0015
90119C0149
main90119-C0149
90119C0399
main90119-C0399
9046808001
main90468-08001
91651B0820
main91651-B0820
9331955016
main93319-55016
17 parts on this diagram · 3 diagrams in section
