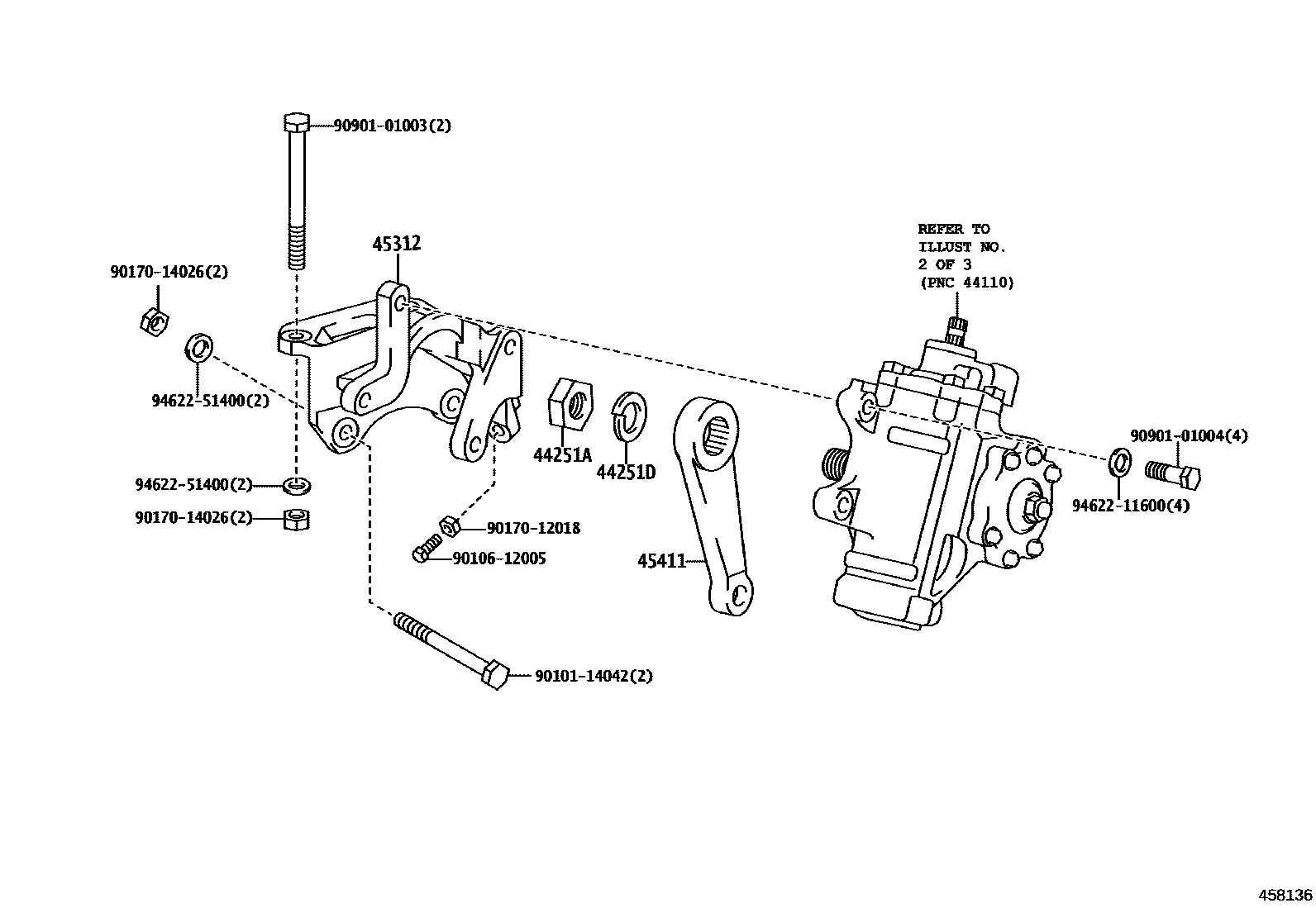

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

44251ANUT, CASTLE(FOR PITMAN ARM)

main90170-30001iKMB53202108

44251DWASHER(FOR PITMAN ARM)

main90204-30040iKMB53202108

45312BRACKET, STEERING GEAR HOUSING

main45312-36281iKMB53202108

45411ARM, PITMAN

main45411-36620iKMB53202108

9010114042

main90101-14042

9010612005

main90106-12005

9017012018

main90170-12018

9017014026

main90170-14026

9090101003

main90901-01003

9090101004

main90901-01004

9462211600

main94622-11600

9462251400

main94622-51400

12 parts on this diagram · 3 diagrams in section
