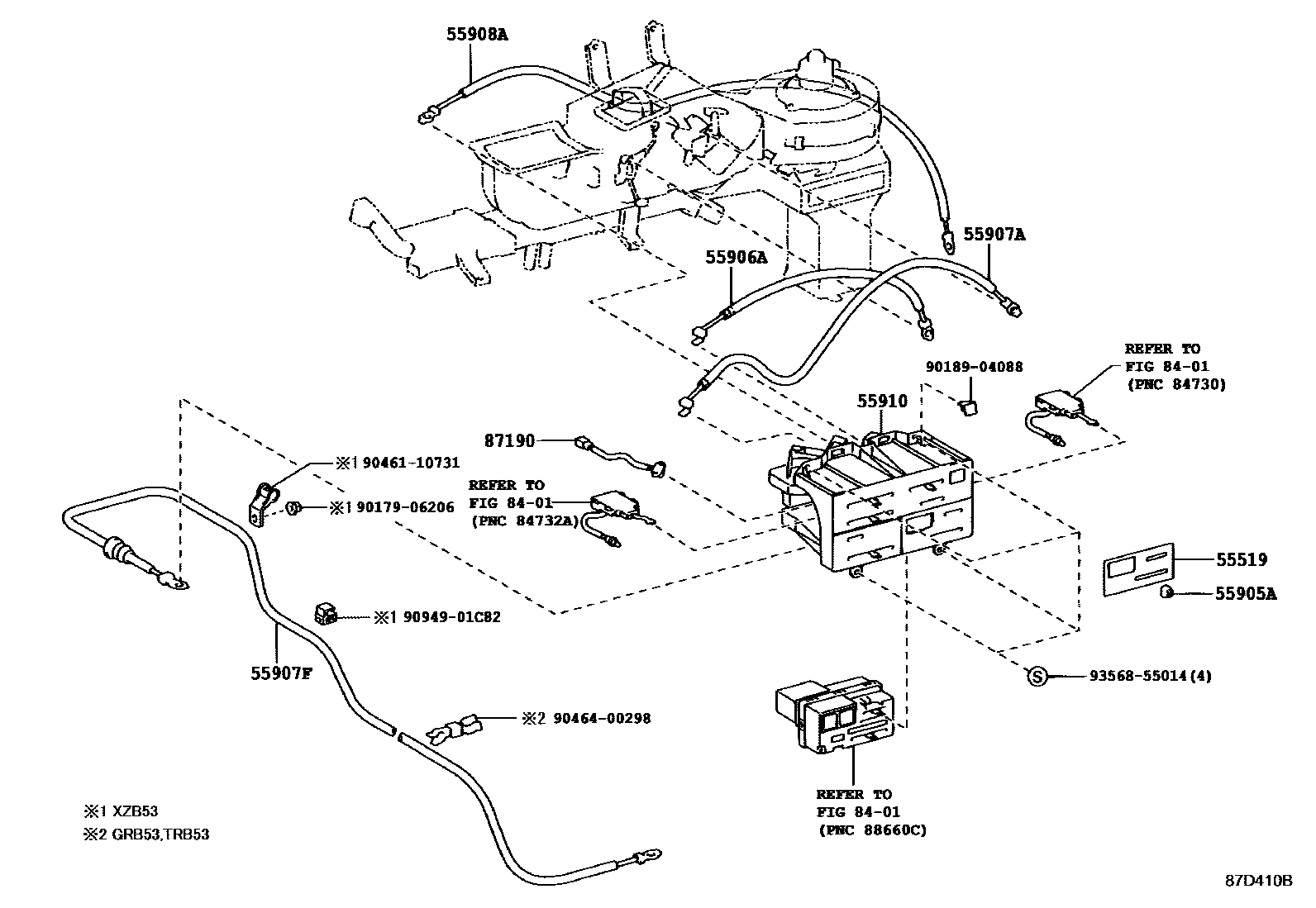

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1FRONT AIR DUCT & DAMPER 0003 1ROOF AIR DUCT & DAMPER 0004 1ROOF AIR DUCT & DAMPER 0005 1ROOF AIR DUCT & DAMPER 0006 1ROOF AIR DUCT 0007 1ROOF AIR DUCT

55519PLATE, HEATER CONTROL NAME

main55519-36020iGRB53,TRB53,XZB53201301-202412

55905AKNOB, HEATER CONTROL

main55905-36030iGRB53,TRB53,XZB53201301-202412

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-36080iGRB53,TRB53,XZB53201301-202412

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36080iGRB53,TRB53,XZB53201301-202412

55907FCABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36111iGRB53,TRB53,XZB53201301-202412

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-36070iGRB53,TRB53,XZB53201301-202412

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36151iGRB53,TRB53,XZB53201301-202412

8401

87190SWITCH ASSY, TEMPERATURE CONTROL

main87190-36010iGRB53,TRB53..EX,STD201301-202412

9017906206

main90179-06206

9018904088

main90189-04088

9046110731

main90461-10731

9046400298

main90464-00298

9094901C82

main90949-01C82

9356855014

main93568-55014

15 parts on this diagram · 7 diagrams in section
