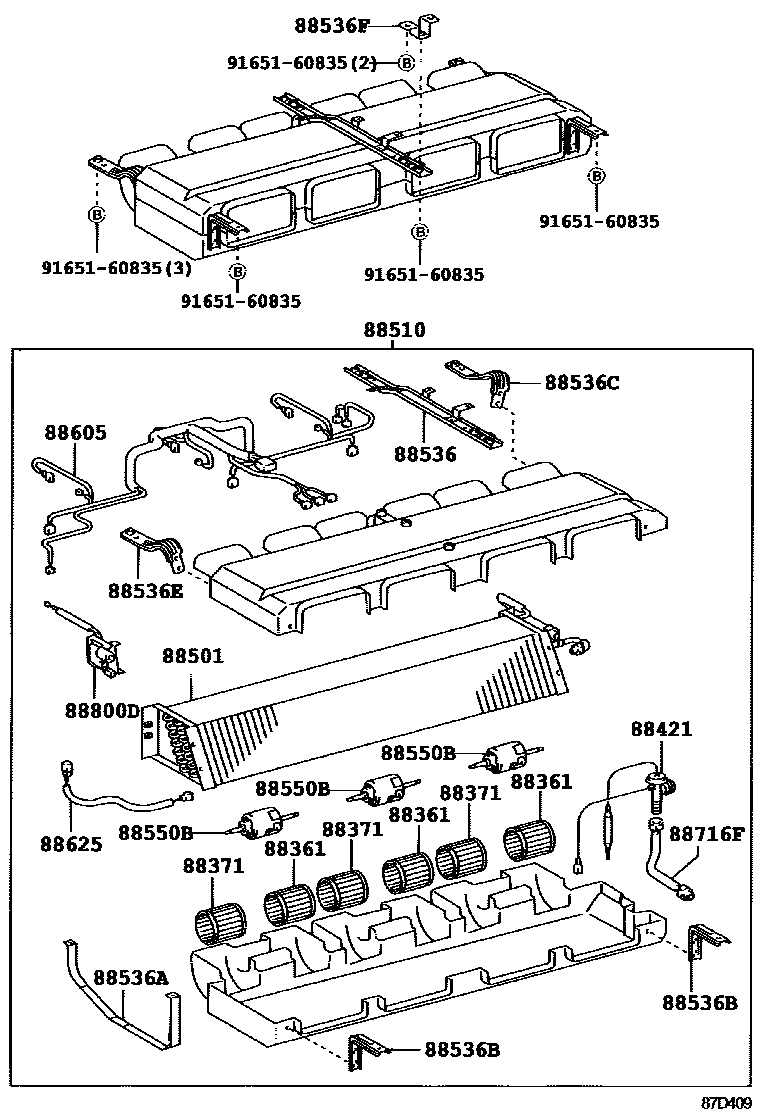

HEATING & AIR CONDITIONING - COOLER UNIT
88361FAN, COOLER BLOWER, NO.1
88371FAN, COOLER BLOWER, NO.2
88421VALVE, EXPANSION, NO.2
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88510UNIT ASSY, COOLER
88536BRACKET, COOLING UNIT, NO.1
88536ABRACKET, COOLING UNIT, NO.2
88536BBRACKET, COOLING UNIT, NO.3
88536CBRACKET, COOLING UNIT, NO.4
88536EBRACKET, COOLING UNIT, NO.5
88536FBRACKET, COOLING UNIT, NO.6
88550BMOTOR ASSY, BLOWER
88605HARNESS SUB-ASSY, COOLER WIRING, NO.1
88625THERMISTOR, COOLER, NO.1
88716FPIPE, COOLER REFRIGERANT LIQUID, F
88800DCOOLING UNIT SERVO
9165160835
main91651-60835
17 parts on this diagram · 1 diagram in section
