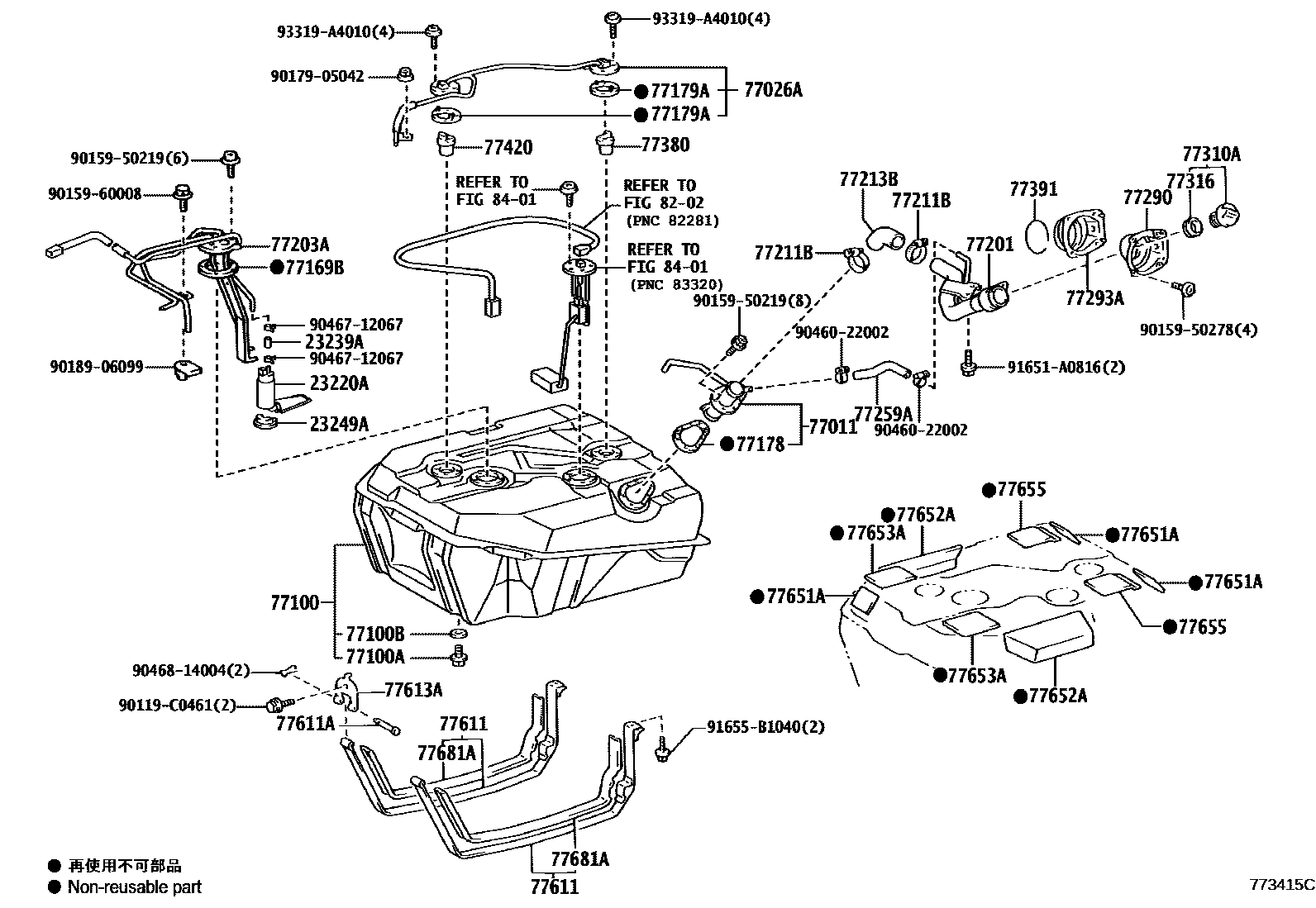

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-31540i6GR#..GRB53..EX,STD201301-202412

23239AHOSE

main23239-11010i6GRFE,3TRFE..GRB53,TRB53201301-202412

23249ARUBBER, CUSHION(FOR FUEL PUMP)

main23249-74610i6GRFE..GRB53..LX201301-202412

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-36020iGRB53,TRB53,XZB53201301-202412

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-36020iGRB53,TRB53,XZB53201301-202412

77100TANK ASSY, FUEL

main77001-3B291iGRB53,TRB53,XZB53201301-202412

77100APLUG(FOR FUEL TANK)

main90105-12116iTRB53,XZB53201301-202412

77100BGASKET(FOR FUEL TANK)

main90430-12245iGRB53,TRB53,XZB53201301-202412

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-32010iGRB53,TRB53201301-202412

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-34010iGRB53,TRB53,XZB53201301-202412

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iGRB53,TRB53201301-201510

sub77179-26011

main77179-26011iGRB53,TRB53201511-202412

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-36180iGRB53,TRB53201301-202412

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-36193iTRB53201301-201507

main77203-36210iGRB53201301-201507

main77203-36221iGRB53201507-202412

main77203-36251iTRB53201507-201910

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005iGRB53,TRB53,XZB53201301-202412

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-36090iXZB53201403-201507

main77213-36110iGRB53,TRB53201301-202412

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-36070iXZB53201403-201507

main77259-36300iGRB53,TRB53201301-202412

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12060iGRB53,TRB53,XZB53201301-202412

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-12030iGRB53,TRB53,XZB53201301-202412

77310ACAP ASSY, FUEL TANK

main77300-0F010iGRB53,TRB53,XZB53201301-201507

(L)

main77300-0F010iGRB53,TRB53201507-202412

main77300-52030iGRB53,TRB53,XZB53201301-201507

(J)

77316GASKET, FUEL TANK CAP

main77316-0F020iGRB53,TRB53..EX,STD201507-202412

main77316-0F020iGRB53,TRB53,XZB53201301-201507

(L)

main77316-52040iGRB53,TRB53,XZB53201301-201507

(J)

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iGRB53,TRB53,XZB53201301-202412

77391RING, FUEL INLET BOX

main77391-14020iGRB53,TRB53,XZB53201301-202412

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iGRB53..LX201301-202412

77611BAND, FUEL TANK

main77601-36120iGRB53,TRB53..EX,STD201301-202412

77611APIN (FOR FUEL TANK BAND)

main90240-08047iGRB53,TRB53,XZB53201301-202412

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-36030iGRB53,TRB53,XZB53201301-202412

77651ACUSHION, FUEL TANK, NO.1

main77651-36130iGRB53,TRB53..EX,STD201301-202412

77652ACUSHION, FUEL TANK, NO.2

main77652-36010iGRB53,TRB53,XZB53201301-202412

77653ACUSHION, FUEL TANK, NO.3

main77653-36010iGRB53,TRB53,XZB53201301-202412

77655CUSHION, FUEL TANK, NO.3

main77653-36020iGRB53,TRB53,XZB53201301-202412

77681ASEAT, FUEL TANK BAND

main77681-36050iGRB53,TRB53,XZB53201301-202412

90119C0461

main90119-C0461

9015950219

main90159-50219

9015950278

main90159-50278

9015960008

main90159-60008

9017905042

main90179-05042

9018906099

main90189-06099

9046022002

main90460-22002

9046712067

main90467-12067

9046814004

main90468-14004

91651A0816

main91651-A0816

91655B1040

main91655-B1040

93319A4010

main93319-A4010

43 parts on this diagram · 11 diagrams in section
