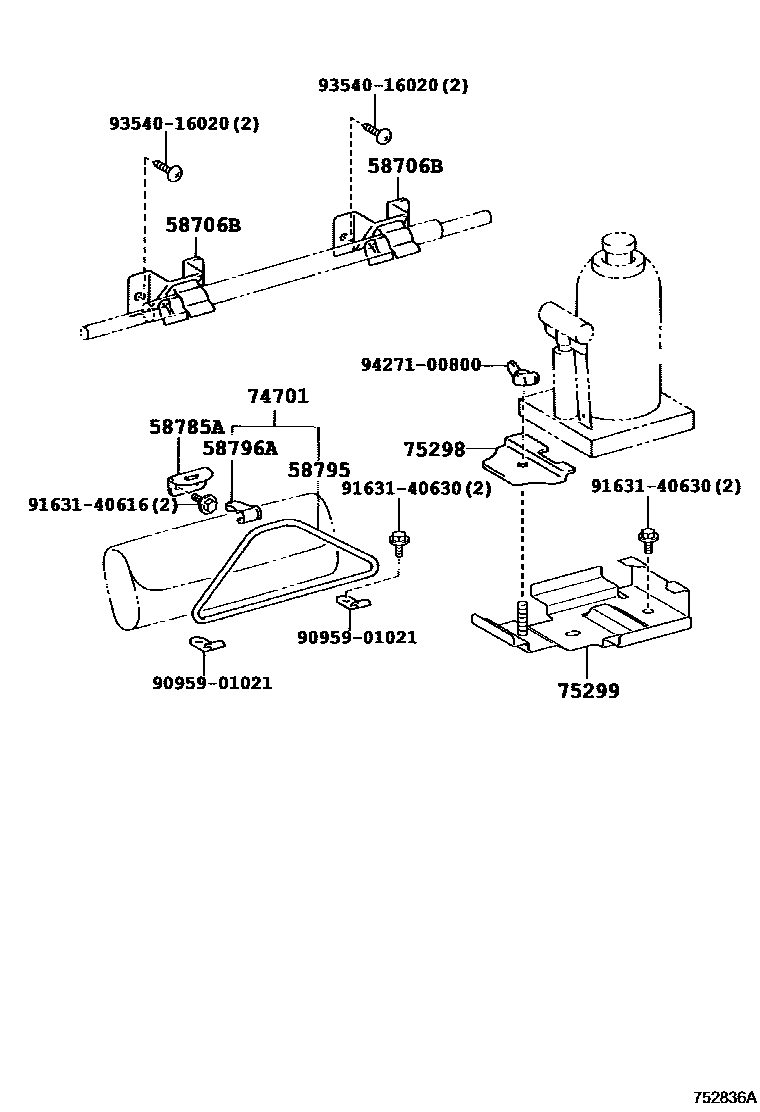

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

58706BCLAMP SUB-ASSY, JACK HANDLE

main58706-36010×2iGRB53,TRB53,XZB53201301-201507

main58706-36030×2iGRB53,TRB53201507-201801

58785ABRACKET, TOOL BAG BAND

main58785-36010iGRB53,TRB53,XZB53201301-201507

58795BAND, JACK CLAMP, NO.1

main58795-20011iGRB53,TRB53,XZB53201301-201507

58796AHOOK, JACK CLAMP

main58796-20012iGRB53,TRB53,XZB53201301-201507

74701CLAMP SUB-ASSY, TOOL BAG

main58705-95701iGRB53,TRB53,XZB53201301-201507

sub58705-27010

75298PLATE, JACK HOLDER

main75298-0S010iGRB53,TRB53,XZB53201301-201507

main75298-95400iGRB53,TRB53201603-201801

75299BASE, JACK HOLDER

main75299-36010iGRB53,TRB53,XZB53201301-201507

main75299-36020iGRB53,TRB53201603-201801

9095901021

main90959-01021

9163140616

main91631-40616

9163140630

main91631-40630

9354016020

main93540-16020

9427100800

main94271-00800

12 parts on this diagram · 2 diagrams in section
