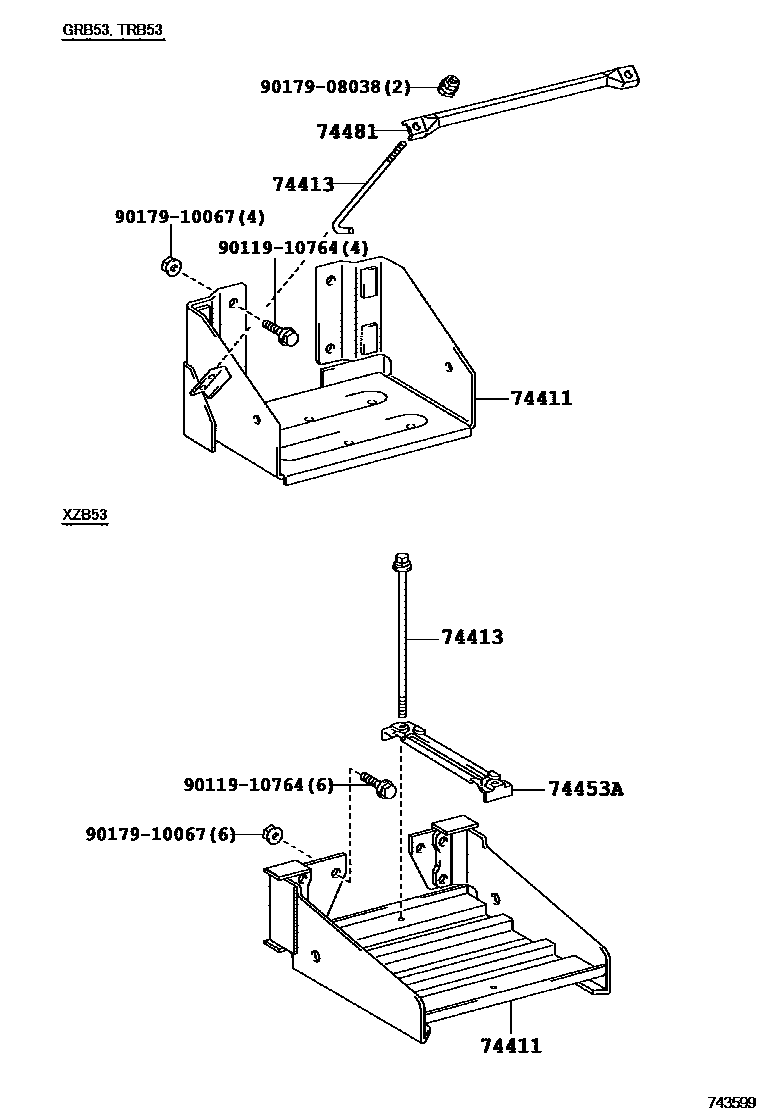

BATTERY CARRIER

74411CARRIER, BATTERY

main74042-36140iGRB53,TRB53201301-201507

main74403-36170iXZB53201403-201507

74413BOLT, BATTERY CLAMP

main74451-36070×2iGRB53,TRB53201507-201801

main74451-36100×2iXZB53201403-201507

74453ABAR, BATTERY SET PLATE

main74453-36150iXZB53201403-201507

74481CLAMP, BATTERY HOLD DOWN

main74453-0S010iGRB53,TRB53..EX,STD201801

9011910764

main90119-10764

9017908038

main90179-08038

9017910067

main90179-10067

7 parts on this diagram · 1 diagram in section
