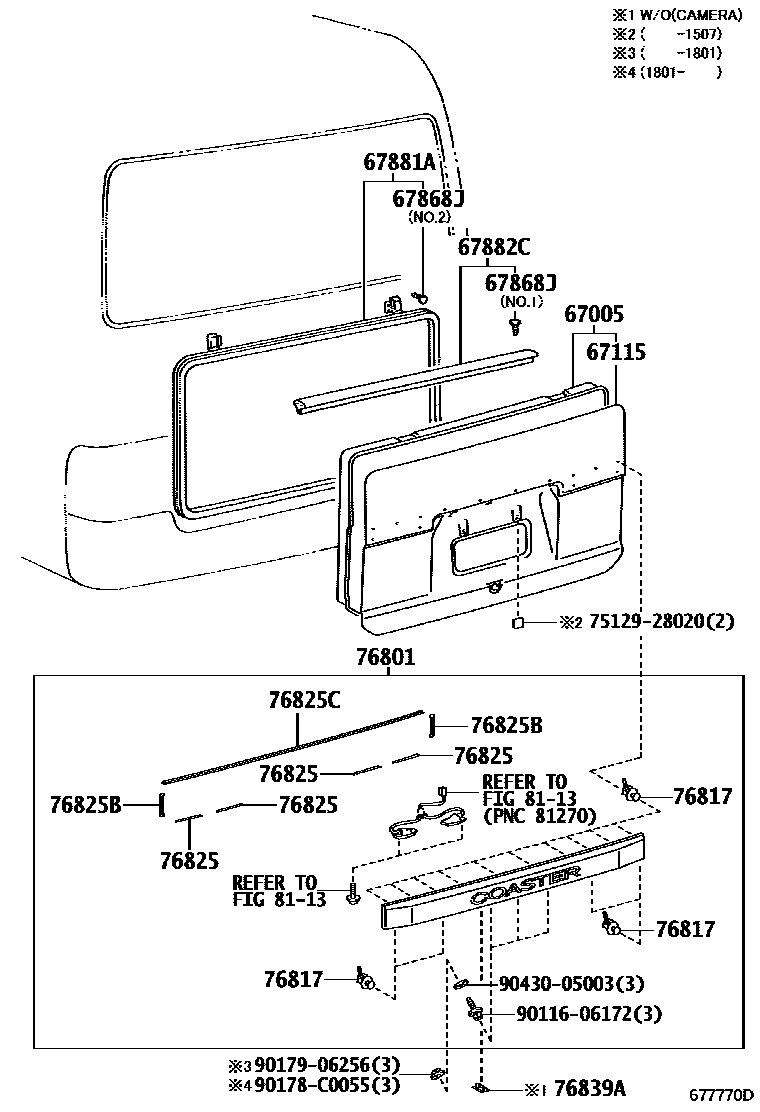

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67005PANEL SUB-ASSY, BACK DOOR

main67008-0S030iGRB53,TRB53,XZB53..CBU201301-201410

sub67008-0S031

main67008-0S031iGRB53,TRB53..CBU201411-202412

67115PANEL, BACK DOOR, OUTER

main67115-0S030iGRB53,TRB53,XZB53..CBU201301-201410

sub67115-0S031

main67115-0S031iGRB53,TRB53,XZB53..CBU201411-202412

67868JRETAINER, DOOR WEATHERSTRIP

main67867-12150iGRB53..LX201301-202412

NO.1

main67868-30040iGRB53,TRB53..(EX,STD)..CBU201301-202412

NO.2

67881AWEATHERSTRIP, BACK DOOR

main67881-0S010iGRB53..LX202106-202412

main67881-36040iGRB53,TRB53..CBU201301-202106

67882CWEATHERSTRIP, BACK DOOR, NO.2

main67882-36030iGRB53,TRB53..(EX,STD)..CBU201301-202412

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-0S010iGRB53,TRB53,XZB53..STD..CBU201301-201801

PAINT REQ.

main76801-0S010iGRB53,TRB53..STD..CBU201801

main76801-0S020iGRB53..EX,LX201301-201801

PLATED

main76801-0S020iGRB53..LX201801-202412

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-44020iGRB53,TRB53,XZB53..CBU201301-202412

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main75828-0S010iGRB53,TRB53,XZB53..CBU201301-202412

76825BPROTECTOR, BACK DOOR OUTSIDE GARNISH

main76821-0S010iGRB53,TRB53,XZB53..CBU201301-202412

76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0S010iGRB53,TRB53,XZB53..CBU201301-202412

76839ACOVER, BACK DOOR GARNISH

main76839-0S010iGRB53,TRB53,XZB53..CBU201301-202412

8113

7512928020CUSHION, REAR LICENSE PLATE

main75129-28020

9011606172

main90116-06172

90178C0055

main90178-C0055

9017906256

main90179-06256

9043005003

main90430-05003

17 parts on this diagram · 2 diagrams in section
