CENTER DOOR PANEL & GLASS
62925AWEATHERSTRIP, GLIDE DOOR SIDE
WITH(AUTO GLIDE DOOR)
WITH(AUTO GLIDE DOOR)
62927WEATHERSTRIP, GLIDE DOOR OUTER
WITH(AUTO GLIDE DOOR)
WITH(AUTO GLIDE DOOR)
63319EMOULDING, SLIDE DOOR WINDOW
67003GPANEL SUB-ASSY, SLIDE DOOR
WITH(AUTO GLIDE DOOR)
WITH(AUTO GLIDE DOOR)
67680ATRIM ASSY, GRIDE DOOR
WITH(AUTO GLIDE DOOR),IVORY,TRIM4#
IVORY,TRIM4#
WITH(AUTO GLIDE DOOR),IVORY,TRIM4#
IVORY,TRIM4#
GREIGE,TRIM4#
WITH(AUTO GLIDE DOOR),GREIGE,TRIM4#
67690TRIM ASSY, GRIDE DOOR, LOWER
IVORY,TRIM4#
WITH(AUTO GLIDE DOOR),IVORY,TRIM4#
IVORY,TRIM4#
WITH(AUTO GLIDE DOOR),IVORY,TRIM4#
GREIGE,TRIM4#
WITH(AUTO GLIDE DOOR),GREIGE,TRIM4#
67841ACOVER, GLIDE DOOR SERVICE HOLE
WITH(AUTO GLIDE DOOR),IVORY,TRIM4#
IVORY,TRIM4#
WITH(AUTO GLIDE DOOR)
67867HRETAINER, DOOR WEATHERSTRIP, RH
NEW REGULATION&NEW REGUL BY SFTM
NEW REGULATION&CENTER & REAR SIDE DOOR-NEW REGUL FOLDING TYPE
WITH(AUTO GLIDE DOOR)
67868MCLIP, DOOR WEATHERSTRIP
WITH(AUTO GLIDE DOOR)
67871BWEATHERSTRIP, GLIDE DOOR
WITH(AUTO GLIDE DOOR)
WITH(AUTO GLIDE DOOR)
67907APLATE SUB-ASSY, CENTER DOOR SCUFF
WITH(AUTO GLIDE DOOR)
WITH(AUTO GLIDE DOOR)
67917PLATE, GLIDE DOOR SCUFF
WITH(AUTO GLIDE DOOR)
68113CGLASS, GLIDE DOOR
WITH(AUTO GLIDE DOOR)
*TT,T=3.5,GREEN
68165BMOULDING, GLIDE DOOR GLASS
WITH(AUTO GLIDE DOOR)
68217BPIN, GLIDE DOOR FIX WINDOW
BLACK
WITH(AUTO GLIDE DOOR),BLACK
WITH(AUTO GLIDE DOOR),WHITE
WHITE
ORANGE
WITH(AUTO GLIDE DOOR),ORANGE
68218CBUSH, GLIDE DOOR FIX WINDOW
WITH(AUTO GLIDE DOOR)
68618BRETAINER, DOOR CHECK PIN
WITH(AUTO GLIDE DOOR)
68630BCHECK ASSY, GLIDE DOOR
WITH(AUTO GLIDE DOOR)
68630CPIN(FOR GLIDE DOOR CHECK)
WITH(AUTO GLIDE DOOR)
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
6777128020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-28020
6777130090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30090
9033325001
main90333-25001
9033335002
main90333-35002
9165160616
main91651-60616
9323925016
main93239-25016
9331925016
main93319-25016

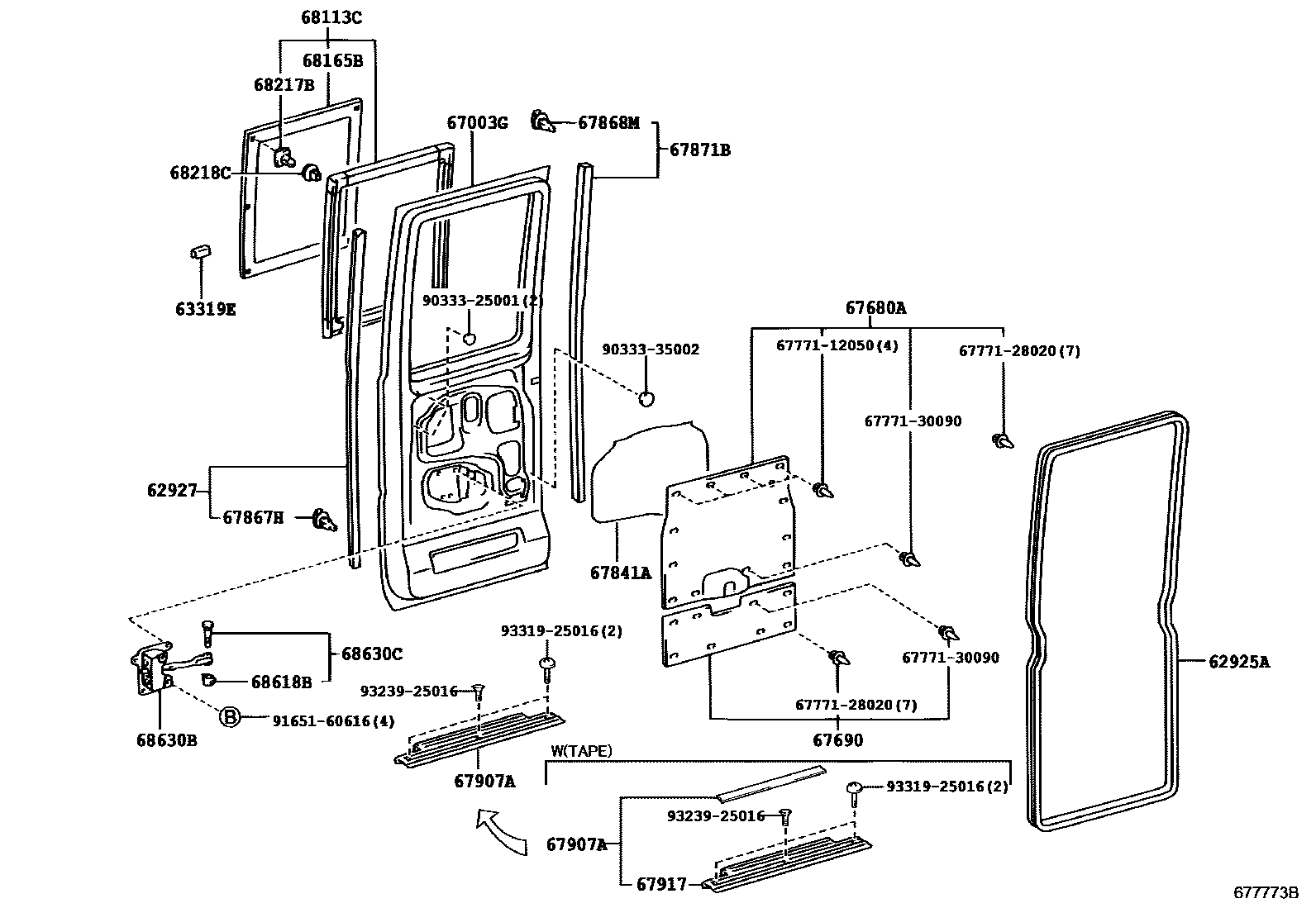

27 parts on this diagram · 3 diagrams in section
