FRONT DOOR LOCK & HANDLE

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-60040-A1iGRB53,TRB53,XZB53201301-201507

IVORY,TRIM4#

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-36010iGRB53,TRB53,XZB53201301-201507

NO PAINT REQ.

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-60010-A1iGRB53,TRB53,XZB53201301-201507

IVORY,TRIM4#

69320LOCK ASSY, FRONT DOOR, LH

main69320-36020iGRB53,TRB53,XZB53201301-201507

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iGRB53,TRB53,XZB53201301-201507

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010iGRB53,TRB53,XZB53201301-201507

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050×2iGRB53,TRB53,XZB53201301-201507

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-30021iGRB53,TRB53,XZB53201301-201507

9014880028

main90148-80028

9015960081

main90159-60081

9015960349

main90159-60349

9015980036

main90159-80036

9018906018

main90189-06018

90189C0017

main90189-C0017

9165140612

main91651-40612

9352054012

main93520-54012

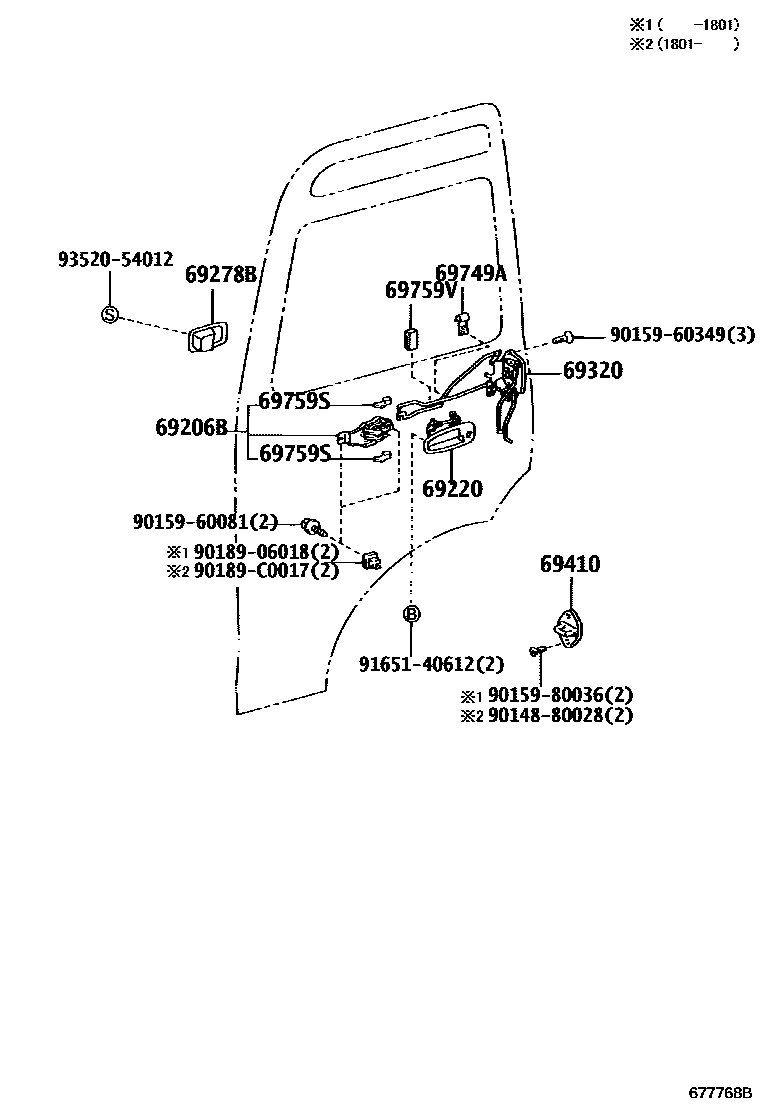

16 parts on this diagram · 1 diagram in section
