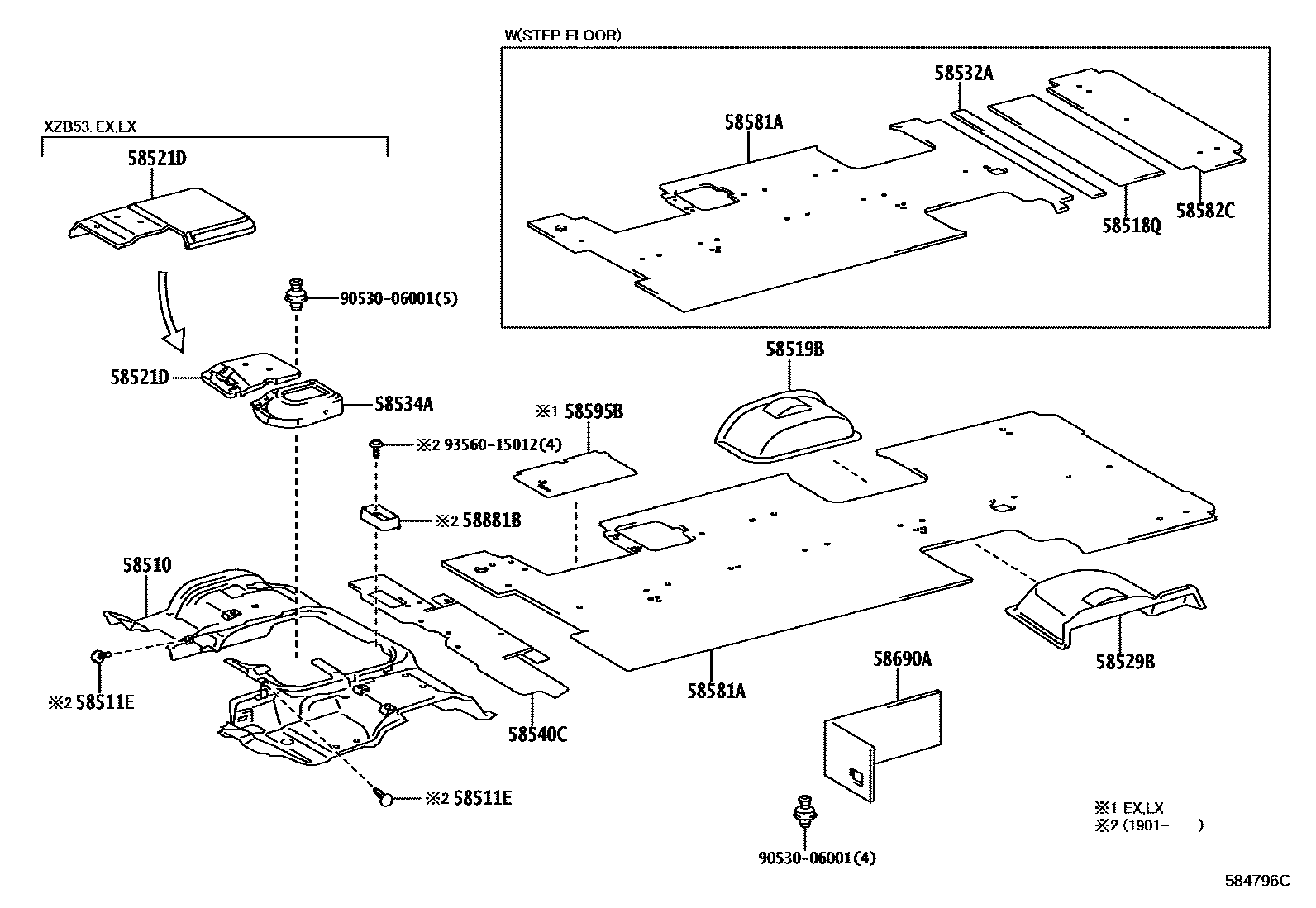

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58510MAT ASSY, FRONT FLOOR, FRONT NO.1

main58510-0S010-E0iTRB53,XZB53201301-201507

GREIGE,TRIM4#

main58510-0S020-E0iGRB53201301-201507

GREIGE,TRIM4#

main58510-0S030-E0iTRB53201507-201801

GREIGE,TRIM4#

main58510-0S040-E0iGRB53201507-201801

GREIGE,TRIM4#

main58510-0S050-E0iTRB53201901-201910

GREIGE,TRIM4#

main58510-0S060-E0iGRB53201901-201911

GREIGE,TRIM4#

main58510-0S070-E0iTRB53201801-201901

GREIGE,TRIM4#

main58510-0S080-E0iGRB53201801-201901

GREIGE,TRIM4#

main58510-0S100-E0iGRB53201911-202106

GREIGE,TRIM4#

main58510-0S130-E0iGRB53202106-202208

GREIGE,TRIM4#

main58510-0S131iGRB53202208-202412

main58510-0S140-E0iGRB53..EX,STD202412

GREIGE,TRIM4#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-05164-L6×2iGRB53..LX201901-202412

GREIGE,TRIM4#

58518QPAD, HEEL, NO.2

main58581-3L070iGRB53,XZB53..EX201301-201507

58519BMAT, REAR WHEEL HOUSE, RH

main58580-0S010-E0iGRB53..23S201507-201801

GREIGE,TRIM4#

main58580-0S020-E0supersedes 58580-0S020-E0iGRB53,TRB53..20S201801-202106

GREIGE,TRIM4#

main58580-0S030-E0iGRB53..23S201801-202106

GREIGE,TRIM4#

main58580-0S050-E0iGRB53..20S202106-202208

NEW REGULATION,GREIGE,TRIM4#

main58580-0S051-E0iGRB53..20S202208-202412

TRIM4#

main58580-0S060-E0iGRB53..23S202106-202211

GREIGE,TRIM4#

main58580-0S061-E0iGRB53..23S..STD202211

GREIGE,TRIM4#

main58580-0S080-E0iGRB53..20S202412

NEW REGULATION,GREIGE,TRIM4#

main58580-36091-E0iGRB53,TRB53,XZB53..20S201301-201507

GREIGE,TRIM4#

main58580-36101-E0iGRB53,TRB53,XZB53..23S201301-201507

GREIGE,TRIM4#

58521DMAT, ENGINE SERVICE HOLE COVER

main58521-0S010-E1iXZB53..EX,LX201403-201507

GREIGE,TRIM4#

main58521-0S020-E0iGRB53201301-201507

GREIGE,TRIM4#

main58521-0S050-E0iGRB53201801-201901

GREIGE,TRIM4#

main58521-0S060-E0iGRB53201901-202106

GREIGE,TRIM4#

main58521-0S070-E0iGRB53..LX202106-202412

GREIGE,TRIM4#

main58521-36140-E0iTRB53,XZB53..STD201301-201507

GREIGE,TRIM4#

main58521-36190-E0iTRB53201801-201910

GREIGE,TRIM4#

58529BMAT, REAR WHEEL HOUSE, LH

main58590-0S010-E0iGRB53..23S201801-202106

GREIGE,TRIM4#

main58590-0S020-E0iGRB53..20S202106-202208

NEW REGULATION,GREIGE,TRIM4#

main58590-0S021iGRB53..20S202208-202412

NEW REGULATION

main58590-0S030-E0iGRB53..23S202106-202208

GREIGE,TRIM4#

main58590-0S031iGRB53..23S202208-202412

main58590-0S060-E0iGRB53..20S202412

NEW REGULATION,GREIGE,TRIM4#

main58590-0S070-E0iGRB53..23S..STD202412

GREIGE,TRIM4#

main58590-36071-E0iGRB53,TRB53..20S201801-202106

GREIGE,TRIM4#

58532AMAT, CENTER FLOOR CROSMMBER

main58581-3L070iGRB53,XZB53..EX201301-201507

58534AMAT, TRANSMISSION COVER

main58534-36050-E0iTRB53,XZB53201301-201507

GREIGE,TRIM4#

main58534-36060-E0iTRB53201512-201801

GREIGE,TRIM4#

58540CMAT ASSY, FLOOR, REAR

main58540-0S010-E0iGRB53;XZB53..EX,LX201301-201507

GREIGE,TRIM4#

main58540-0S020-E0iTRB53201507-201801

GREIGE,TRIM4#

main58540-0S030-E0iGRB53201507-201801

GREIGE,TRIM4#

main58540-0S060-E0iGRB53,TRB53..STD201801-201911

GREIGE,TRIM4#

main58540-0S070-E0iGRB53..EX,LX201801-201911

GREIGE,TRIM4#

main58540-0S080-E0iGRB53..STD201911-202207

GREIGE,TRIM4#

main58540-0S081-E0iGRB53..STD202208

GREIGE,TRIM4#

main58540-0S090-E0iGRB53..EX,LX201911-202207

GREIGE,TRIM4#

main58540-0S091-E0iGRB53..EX202208

GREIGE,TRIM4#

main58540-36361-E0iTRB53,XZB53..STD201301-201507

GREIGE,TRIM4#

58581AMAT, REAR FLOOR

main58581-0S011-E0iGRB53,XZB53..LX201301-201507

GREIGE,TRIM4#

main58581-0S021-E0iGRB53,TRB53,XZB53..23S..STD201301-201507

GREIGE,TRIM4#

main58581-0S041-E0iGRB53,TRB53,XZB53..20S..STD201301-201507

GREIGE,TRIM4#

main58581-0S051-E0iGRB53,XZB53..EX201301-201507

GREIGE,TRIM4#

main58581-0S070-E0iGRB53..LX201507-201603

GREIGE,TRIM4#

main58581-0S071-E0iGRB53..LX201603-201801

GREIGE,TRIM4#

main58581-0S080-E0iGRB53..23S..STD201507-201603

GREIGE,TRIM4#

main58581-0S081-E0iGRB53..23S..STD201603-201801

GREIGE,TRIM4#

main58581-0S100-E0iGRB53,TRB53..20S..STD201507-201603

GREIGE,TRIM4#

main58581-0S101-E0iGRB53,TRB53..20S..STD201603-201801

GREIGE,TRIM4#

main58581-0S120-E0iGRB53,TRB53..20S..STD..CBU201801-202011

GREIGE,TRIM4#

main58581-0S130-E0iGRB53..23S..STD201801-202011

GREIGE,TRIM4#

main58581-0S131iGRB53..23S..STD202011-202106

main58581-0S140-E0iGRB53..LX201801-202011

GREIGE,TRIM4#

main58581-0S141iGRB53..LX202011-202106

main58581-0S280-E0iGRB53..LX202106-202208

GREIGE,TRIM4#

main58581-0S281iGRB53..LX202208-202412

main58581-0S330-E0iGRB53..23S..STD202106-202208

GREIGE,TRIM4#

main58581-0S331iGRB53..23S..STD202208-202412

main58581-0S390-E0iGRB53..23S..STD202412

GREIGE,TRIM4#

main58581-0S061-E0iTRB53..IV5201301-201411

CENTER & REAR SIDE DOOR-AUTO FOLDING DOOR,GREIGE,TRIM4#

main58581-0S150-E0supersedes 58581-0S360-E0iGRB53..EX201801-202011

PREMIUM VIP PACKAGE,GREIGE,TRIM4#

main58581-0S151supersedes 58581-0S301iGRB53..EX202011-202106

PREMIUM VIP PACKAGE

main58581-0S290-E0supersedes 58581-0S360-E0iGRB53..EX202106-202208

PREMIUM VIP PACKAGE,GREIGE,TRIM4#

main58581-0S291supersedes 58581-0S301iGRB53..EX202208-202412

PREMIUM VIP PACKAGE

main58581-0S350-E0supersedes 58581-0S360-E0iGRB53..EX202412

PREMIUM VIP PACKAGE,GREIGE,TRIM4#

58582CMAT, REAR FLOOR, REAR

main58581-3L070-E0iGRB53,XZB53..EX201301-201507

GREIGE,TRIM4#

58595BCARPET, CENTER DOOR STEP

main58595-0S010-E0iGRB53,XZB53..EX,LX201301-201507

GREIGE,TRIM4#

main58595-0S030-E0iGRB53..20S..STD..CBU201801-202106

WITH(AUTO GLIDE DOOR),GREIGE,TRIM4#

main58595-0S040-E0iGRB53..LX202106-202412

GREIGE,TRIM4#

58690ACARPET ASSY, CENTER DOOR STEP

main58690-0S020-E0iGRB53..EX,LX202106-202207

WITH(AUTO GLIDE DOOR),GREIGE,TRIM4#

main58690-0S021-E0iGRB53..EX202208

WITH(AUTO GLIDE DOOR),GREIGE,TRIM4#

main58690-36071-E0iGRB53,XZB53..EX,LX201301-201507

GREIGE,TRIM4#

58881BBOX, EQUIPMENT SET

main58881-0S010-E0iGRB53..LX201901-202412

GREIGE,TRIM4#

9053006001

main90530-06001

9356015012

main93560-15012

16 parts on this diagram · 2 diagrams in section
