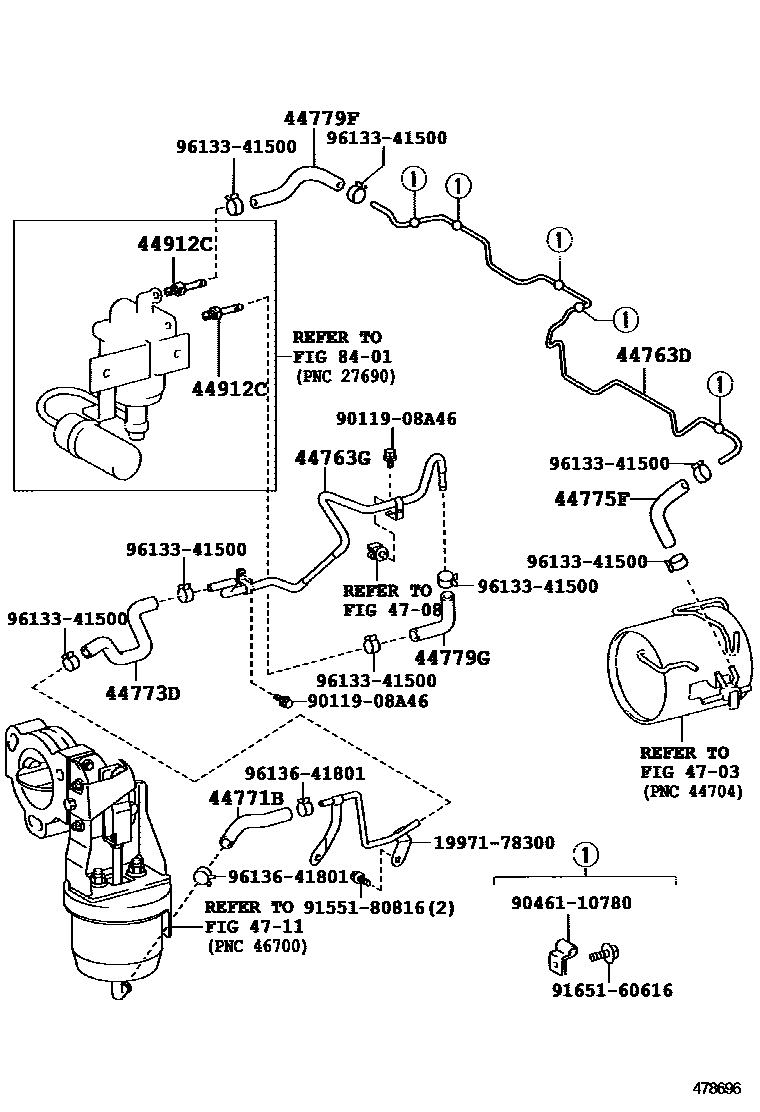

EXHAUST BRAKE TUBE & CLAMP

44763DTUBE, HOSE TO HOSE, NO.1

main44763-36050iXZB53201301

44763GTUBE, HOSE TO HOSE, NO.2

main44763-36090iXZB53201301

44771BHOSE, VACUUM TUBE CONNECTOR

main44771-36331iXZB53201301

44773DHOSE, SOLENOIDO TO RETARDER

main44773-36190iXZB53201301

44775FHOSE, WAY TO CONNECTOR

main44775-0S010iXZB53201301

44779FHOSE, CONNECTOR TUBE TO SOLENOID, NO.1

main44779-36120iXZB53201301

44779GHOSE, CONNECTOR TUBE TO SOLENOID, NO.2

main44779-36110iXZB53201301

44912CUNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90404-51319iXZB53201301

4703

4708

4711

8401

1997178300PIPE, VACUUM(FOR VENTURI)

main19971-78300

9011908A46

main90119-08A46

9046110780

main90461-10780

9155180816

main91551-80816

9165160616

main91651-60616

9613341500

main96133-41500

9613641801

main96136-41801

19 parts on this diagram · 1 diagram in section
