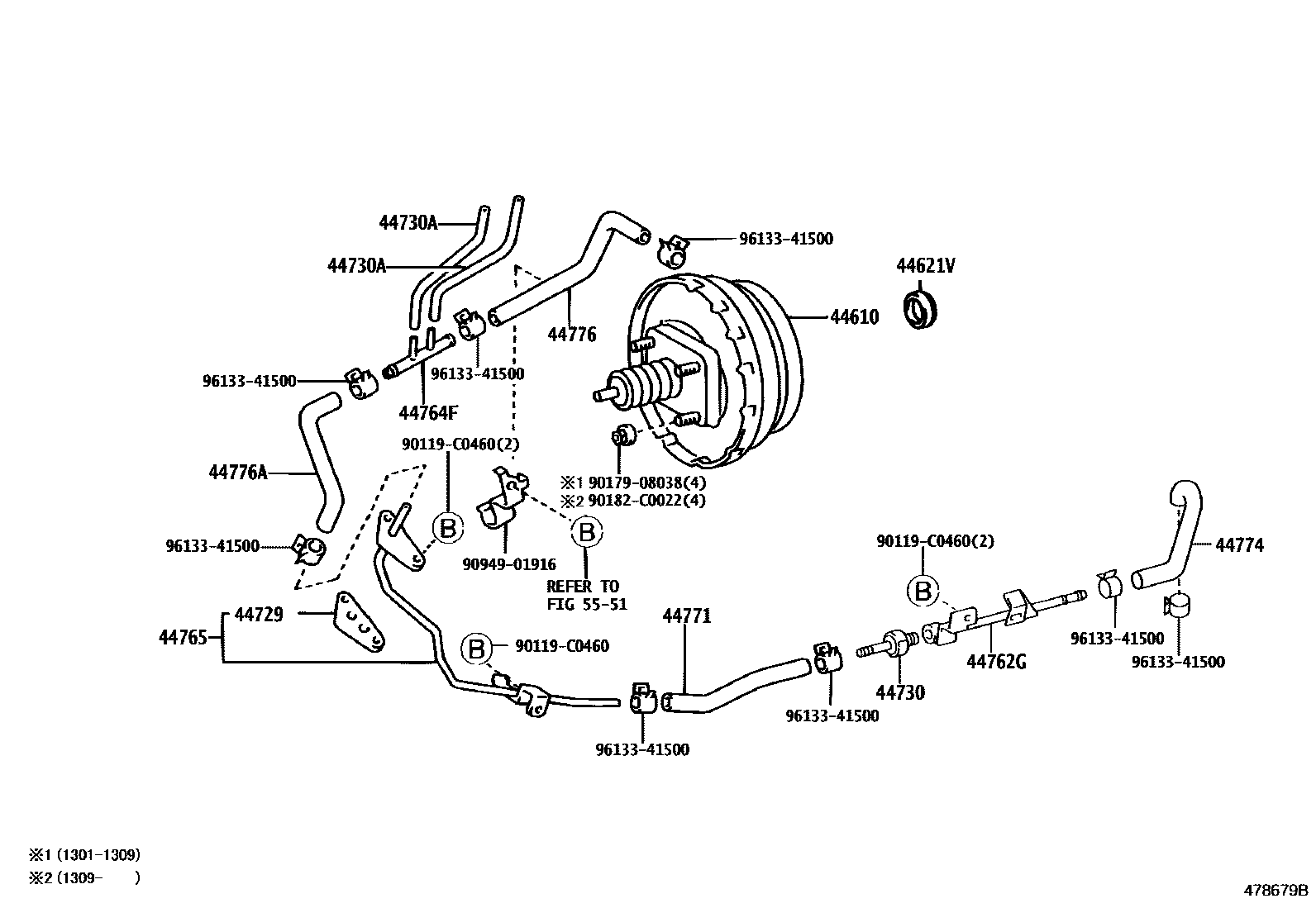

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

44610BOOSTER ASSY, BRAKE

main44610-36630iGRB53,TRB53,XZB53201301-201911

main44610-36680iGRB53..EX,STD201911-202412

44621VSEAL, BOOSTER BODY

main44621-36070iGRB53,TRB53,XZB53201301-201911

44729GASKET, VACUUM TUBE

main44729-36020iGRB53,TRB53,XZB53201301-202412

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22120iGRB53,TRB53201301-202412

44730AHOSE, VACUUM, NO.1

main90999-92002iGRB53,TRB53,XZB53201301-202412

44762GTUBE, VACUUM CHECK VALVE TO CONNECTOR

main44762-36120iTRB53201301-201910

main44762-36140iGRB53201301-202412

44764FWAY(FOR BOOSTER VACUUM TUBE)

main90414-10043iGRB53,TRB53201301-202412

44765TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2

main44765-36310iTRB53,XZB53201301-201910

main44765-36390iGRB53..EX,STD201301-202412

44771HOSE, VACUUM TUBE CONNECTOR

main44771-0S010iTRB53201301-201910

main44771-0S020iGRB53..EX,STD201301-202412

main44771-36331iXZB53201403-201507

(J)

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0S010iGRB53..LX201301-202412

main44774-36391iTRB53201301-201910

main44774-36440iXZB53201403-201507

44776HOSE, BRAKE BOOSTER

main44776-0S010iGRB53..EX,STD201911-202412

main44776-36160iGRB53,TRB53201301-201911

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-36180iGRB53,TRB53,XZB53201301-202412

5551

90119C0460

main90119-C0460

9017908038

main90179-08038

90182C0022

main90182-C0022

9094901916

main90949-01916

9613341500

main96133-41500

18 parts on this diagram · 5 diagrams in section
