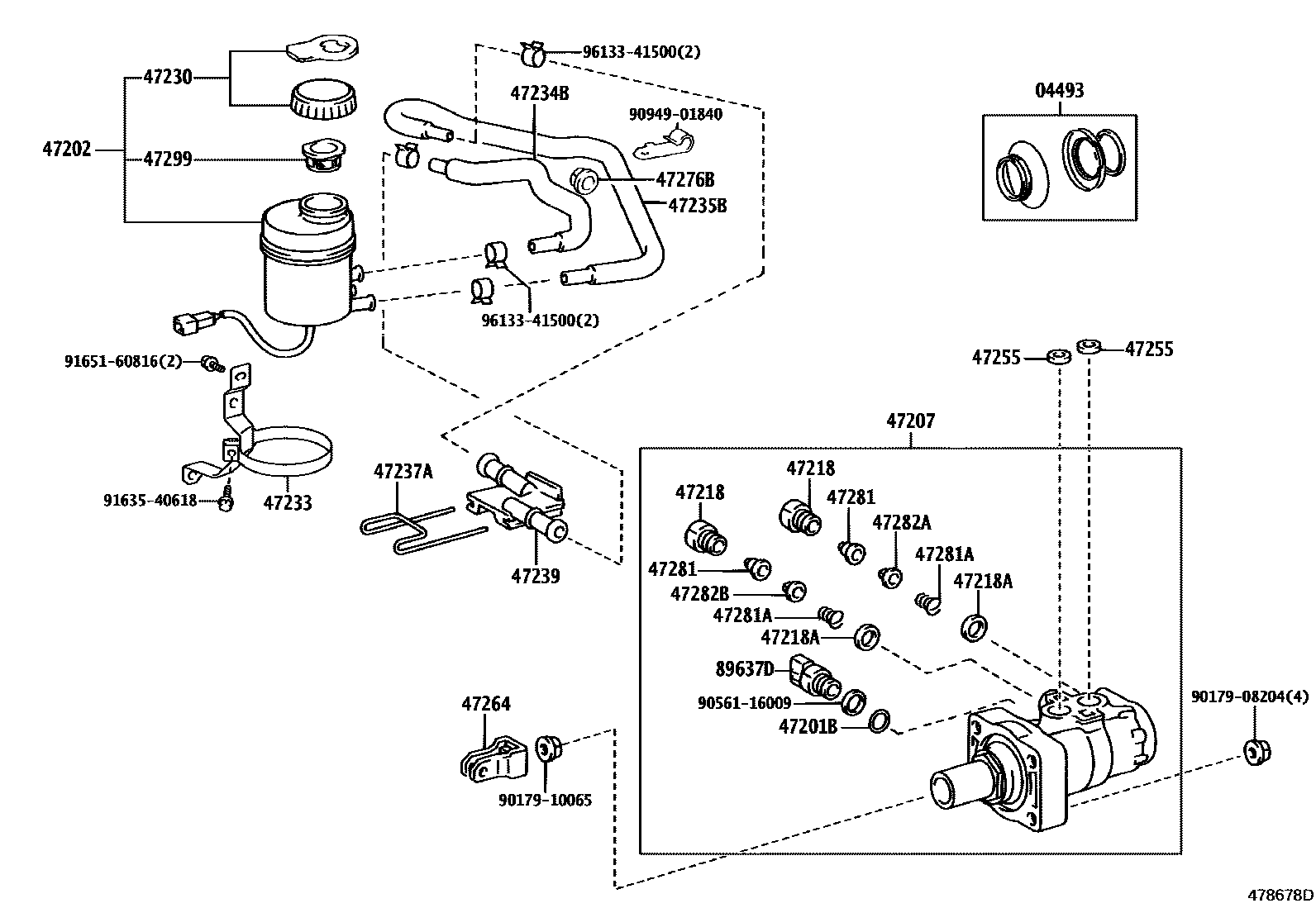

BRAKE MASTER CYLINDER
04493CYLINDER KIT, BRAKE MASTER
47201CYLINDER SUB-ASSY, BRAKE MASTER
47201BRING, O(FOR BRAKE MASTER CYLINDER)
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK
47218PLUG, MASTER CYLINDER FLUID OUTLET
47218AGASKET(FOR FLUID OUTLET PLUG)
47233BRACKET, RESERVOIR
47234BTUBE, RESERVOIR, NO.1
STEERING COLUMN-WITH(TILT & TELESCOPIC)
47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
STEERING COLUMN-WITH(TILT & TELESCOPIC)
47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK
47239CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR
STEERING COLUMN-WITH(TILT & TELESCOPIC)
47255GROMMET, MASTER CYLINDER RESERVOIR
47264CLEVIS, MASTER CYLINDER PUSH ROD
47276BGROMMET(FOR BRAKE MASTER CYLINDER BRACKET)
47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK
47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)
47282ASEAT, OUTLET CHECK VALVE, NO.1
47282BSEAT, OUTLET CHECK VALVE, NO.2
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
89637DSENSOR, OIL PRESSURE
9017908204
main90179-08204
9017910065
main90179-10065
9056116009
main90561-16009
9094901840
main90949-01840
9163540618
main91635-40618
9165160816
main91651-60816
9613341500
main96133-41500
29 parts on this diagram · 2 diagrams in section
